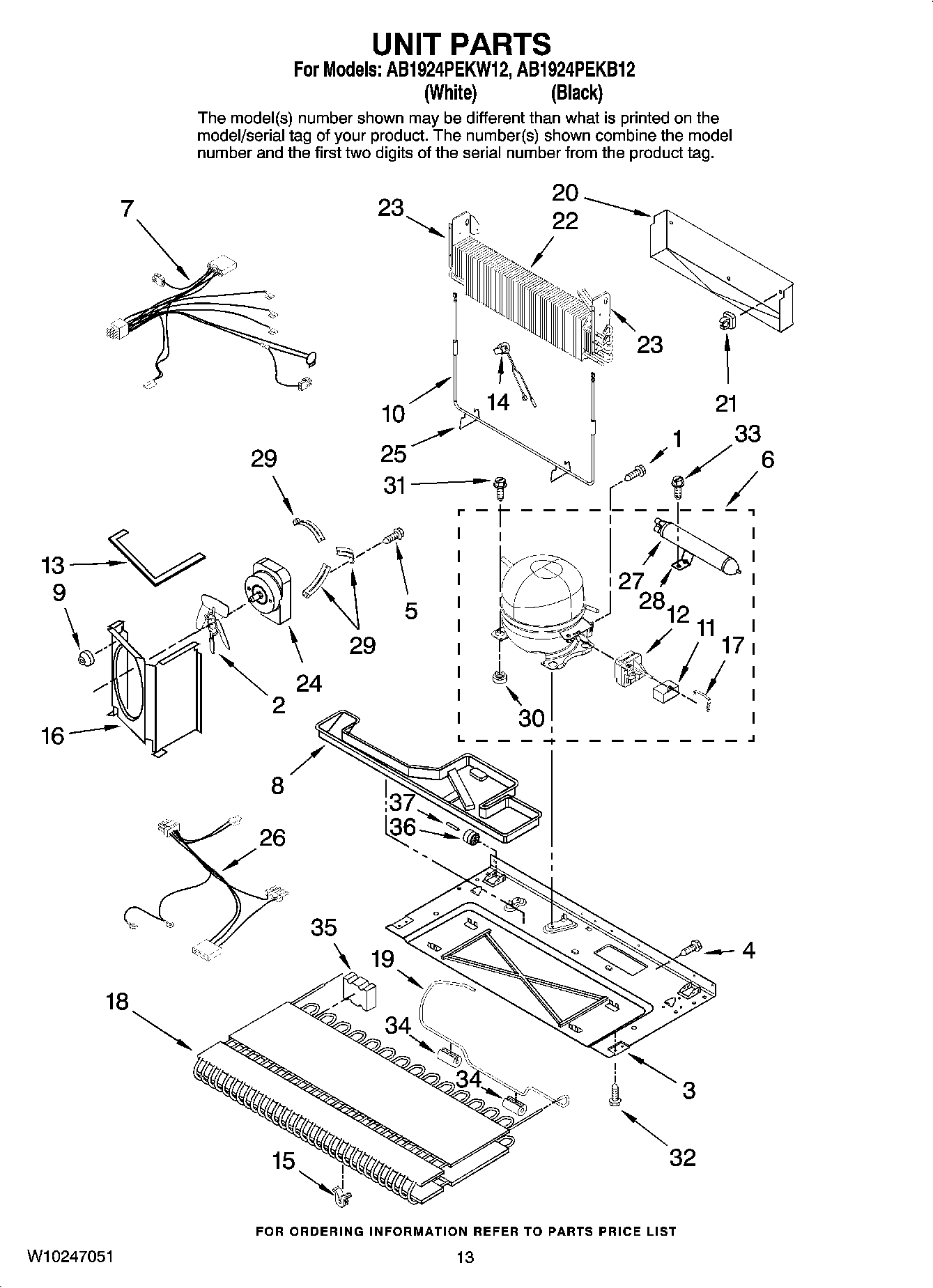

AB1924PEKB12 07 – UNIT PARTS

Products

Position	Product
NI	Valve, Access (5/8“)
NI	VALVE, ACCESS (1/4“)
NI	MAY 876764
NI	Valve, Access (3/4“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (1/2“)
NI	Valve, Access (5/16“)
NI	MAY 13015202
1	MAY 67006433
2	MAY W10162928
3	MAY 67006914
4	Screw (10)
5	WP67004954 Whirlpool Refrigerator Screw
6	MAY 12049773
7	MAY W10169651
8	Drain Pan
9	GROMMET, BRACKET
10	MAY 12729118
11	MAY 67007162
12	MAY 67006453
12	Overload/Relay (Service)
13	WP854334 Whirlpool Air Conditioner Sealing Strip
14	Thermostat, Def.
15	GROMMET, COND (4)
16	Shroud, Condenser
17	MAY 67007052
18	67006133 Whirlpool Refrigerator 30" Condenser BM
19	MAY 67004203
20	MAY 67001133
21	MAY 10623002
22	MAY 67003718
23	MAY 67001084
23	MAY 67001083
24	MAY W10211284
25	W11673433 Whirlpool Clip
26	MAY W10169655
27	Drier
28	MAY 10547003
29	MAY 67004953
30	67003493 Whirlpool Refrigerator Compressor Grommet
31	MAY 67006432
32	Screw (4)
33	SCREW
34	67005680 Whirlpool Refrigerator Condenser Grommet
35	MAY 67005491
36	WP67005149 Whirlpool Roller
37	67006434 Whirlpool Axle Pin
