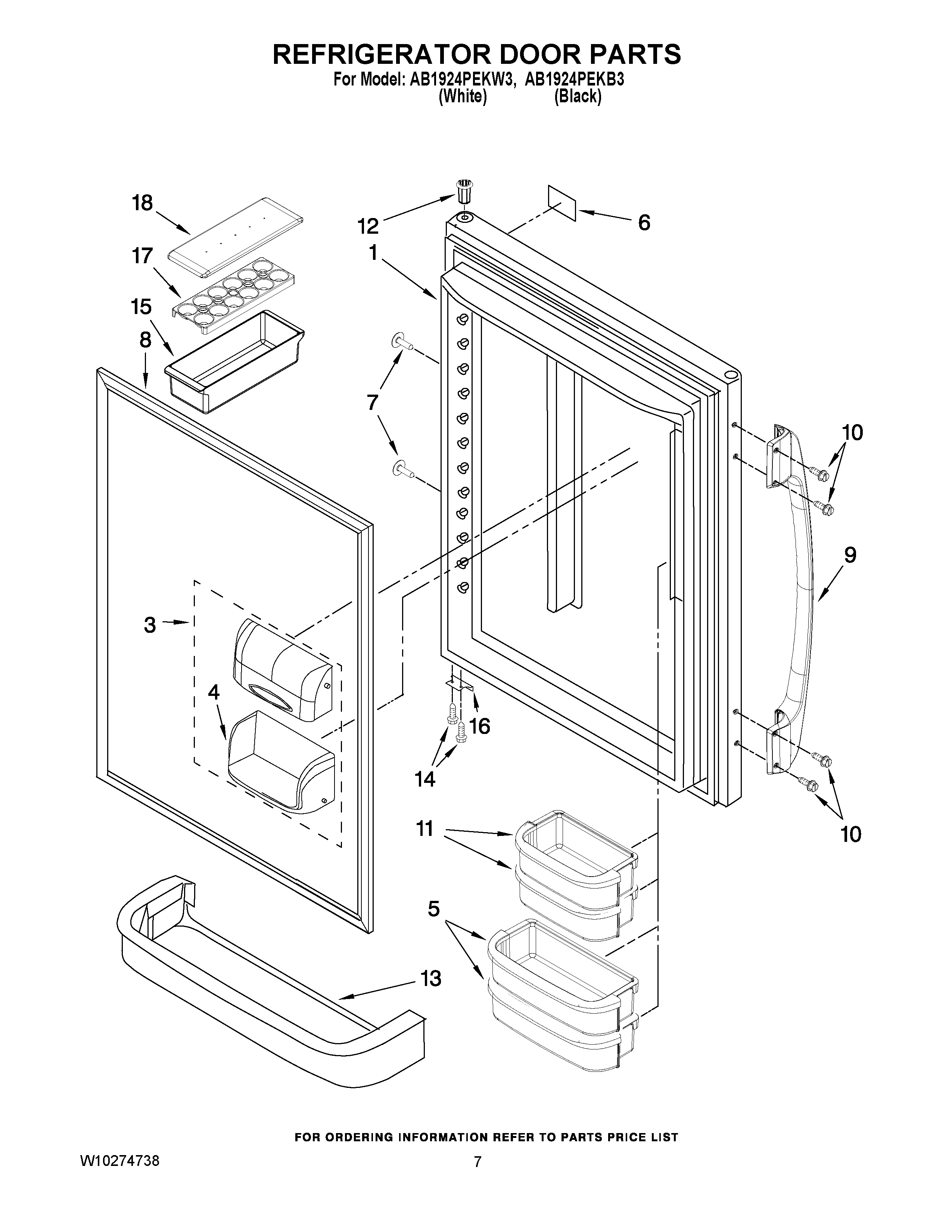

AB1924PEKB3 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (WHITE)
1REFRIGERATOR DOOR (BLACK)
3Door, Dairy
4MAY 12369502SP
5BUCKET (MEDIUM)
6STAINLESS
7SCREW, HANDLE (BLACK)
8Gasket, Door Magnetic (Black)
8MAY W10164030
9MAY 12845806B
9MAY 12845806W
10MAY 12992801
11DOOR BUCKET (SMALL)
12BUSHING, DOOR UPPER RIGHT (WHITE)
12Bushing (Black)
13RETAINER, DOOR
14MAY 12990504
15MAY 10423131SP
16Stop, Door (Black)
16MAY 10447111
17MAY 10436506S
18MAY 10436404S
