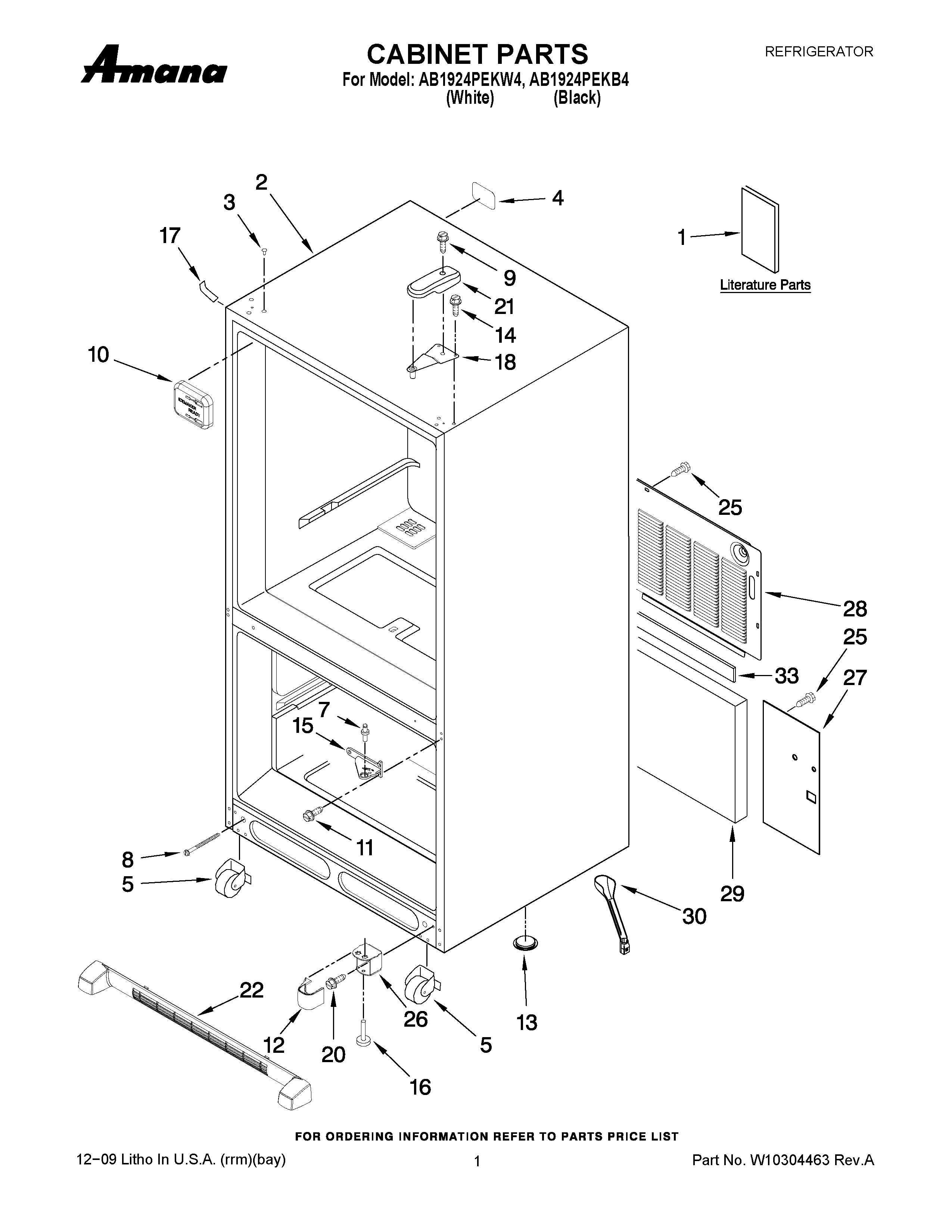

AB1924PEKB4 01 – CABINET PARTS

Products

Position	Product
1	MAY 12738352
1	MAY 12828189SP
1	MAY W10279339
2	LINER (NOT A SERVICEABLE PART)
3	MAY M0310729
3	MAY M0310731
4	LABEL-FILL TUBE
5	ROLLER ASSY.(REAR)
7	PIN, CENTER HINGE (REAR)
8	Bolt, Adjusting (Rear)
9	MAY 12992602
10	COVER-FILL TUBE
11	SCREW (6)
12	MAY 12561901W
12	Cover, Lw Hinge (Black)
13	A3076901 Whirlpool Refrigerator Plug
14	SCREW (6)
15	MAY 12607104ED
15	MAY 12607103WD
16	Foot Brake (2)
17	COVER, CORNER (BLACK)
17	Cover, Corner (2) (White)
18	MAY 12566606ED
20	Screw (8)
21	MAY 12477601W
21	COVER, HINGE(BLACK)
22	Grille Assembly (Includes Clips) (Black)
22	Grille Assembly (Includes Clips) (White)
25	MAY 12465005ED
25	MAY 12465002WD
25	SCREW (10)
27	MAY W10217701
28	MAY W10211980
29	Insulation, Sound
30	MAY W10210987
33	MAY B5759655
