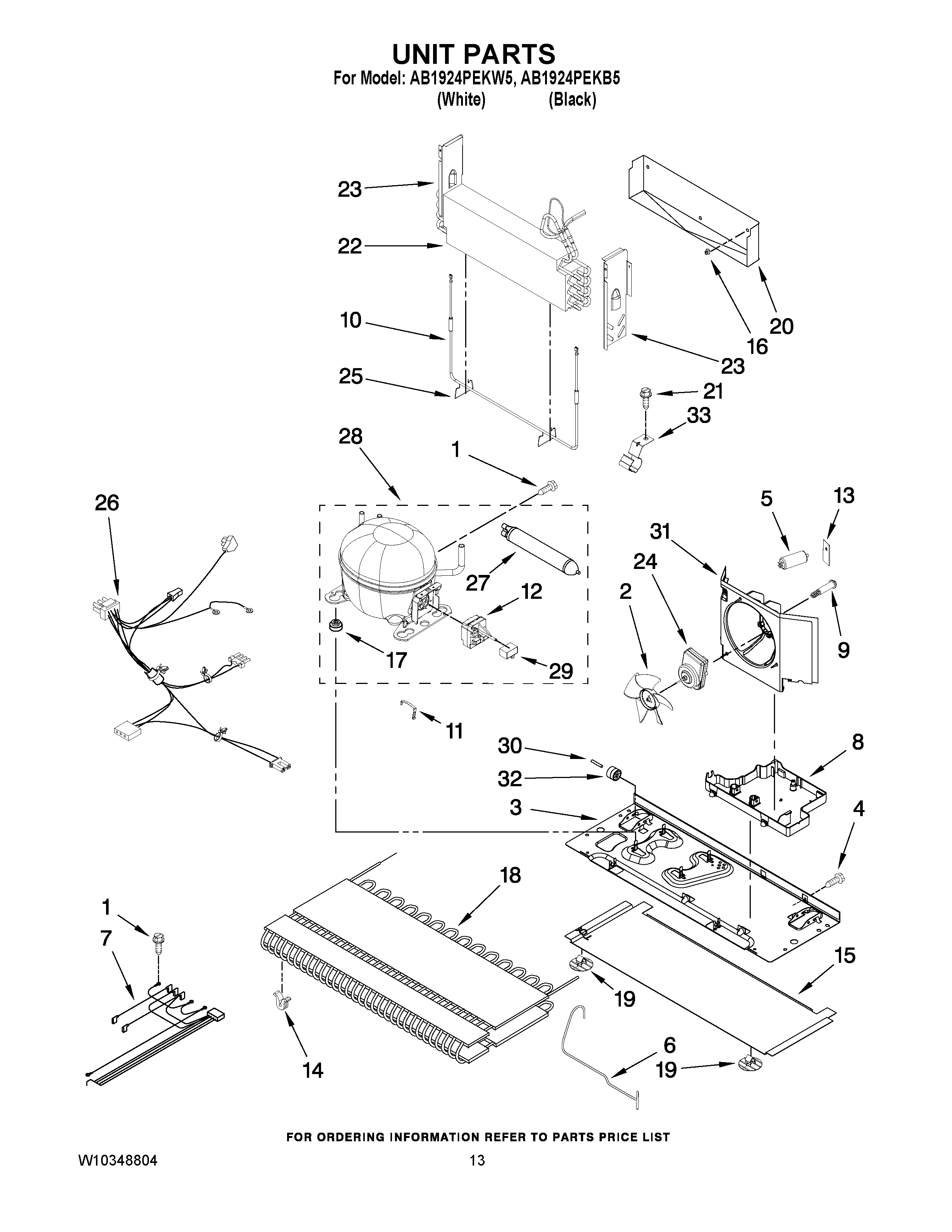

AB1924PEKB5 07 – UNIT PARTS
Written by
in
AB1924PEKB5 07 – UNIT PARTS
Products
Position
Product
NI
LINER (NOT A SERVICEABLE PART)
NI
Valve, Access (1/2“)
NI
VALVE, ACCESS (3/8“)
NI
Valve, Access (5/16“)
NI
VALVE, ACCESS (1/4“)
NI
MAY 876764
NI
Valve, Access (5/8“)
NI
Valve, Access (3/4“)
1
MAY 12992301
2
MAY 12825803
3
MAY W10210982
4
SCREW (10)
5
MAY 12689303
6
MAY W10306058
7
HARNESS, EVAP. HEATER
8
MAY W10296784
9
MAY W10216919
10
MAY 12729130
11
STRAP, BALE
12
START DEVICE
13
BRACKET, LINE FILTER
14
GROMMET, COND (4)
15
MAY W10206336
16
MAY 10623002
17
Grommet (4)
18
MAY W10135028
19
MAY W10206339
20
MAY W10292801
21
MAY 12990701
22
MAY W10317012
23
DAM (LEFT SIDE)
23
Dam (Right Side)
24
MAY W10246191
25
W11673433 Whirlpool Clip
26
MAY W10273559
27
Drier
28
COMPRESSOR KIT (CONTAINS ITEMS 12, 17, 27, & 29)
29
CAPACITOR
30
Axle, Roller (2)
31
SHROUD
32
Roller (2)
33
MAY 10547003
←
