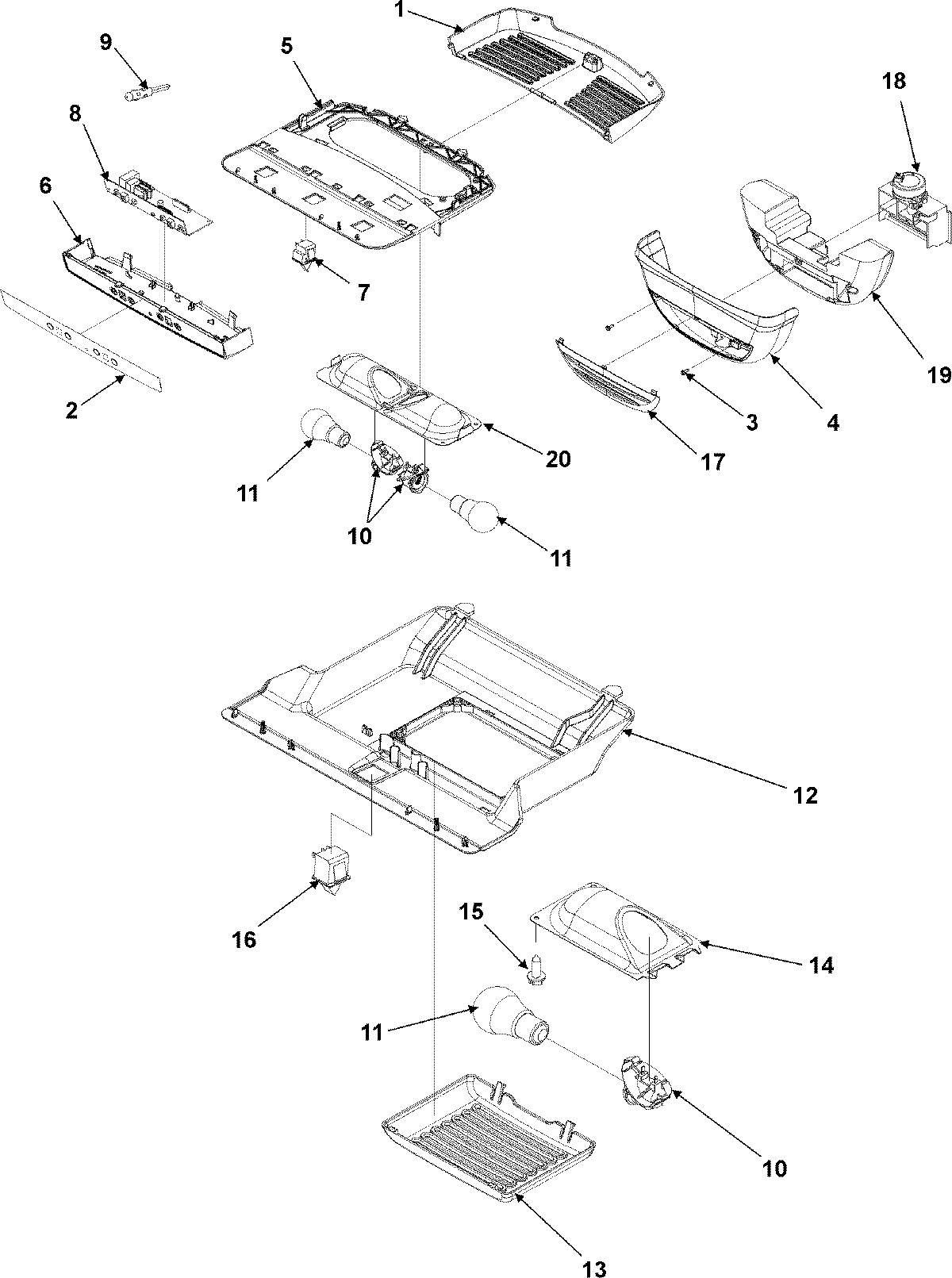

AB1924PEKS 03 – CONTROLS

Products

Position	Product
NI	HARNESS, FZ MODULE
NI	MAY 67005073
NI	MAY 67005056
1	W11284721 Whirlpool Refrigerator Cover
2	MAY 67005078
3	MAY M0213132
4	WP12806701 Whirlpool Refrigerator Box Cover
5	MAY Y67003896
6	WPW10464769 Whirlpool Refrigerator Housing
7	Switch, Light (2)
8	MAY 67006738
8	WPW10503278 Whirlpool Refrigerator Electronic Control Board
9	MAY 67003872
9	67006883 Whirlpool Refrigerator Thermistor
10	Socket, Light (2)
10	MAY 67002551
11	WP67002552 Whirlpool Refrigerator Light Bulb
12	67003906 Whirlpool Refrigerator Control Module
13	MAY 67003905
14	MAY 67001035
15	MAY M0226528
16	MAY 12466101
16	MAY 67005653
17	67003900 Whirlpool Refrigerator Insert Damper Cover
18	MAY 67005014
18	DAMPER, CONTROL (W/HARNESS)
19	WP67003904 Whirlpool Refrigerator Insulation
19	MAY 67006604
20	12806601 Whirlpool Refrigerator Light Housing
