AB1924PEKS4 07 – UNIT PARTS – Aparts

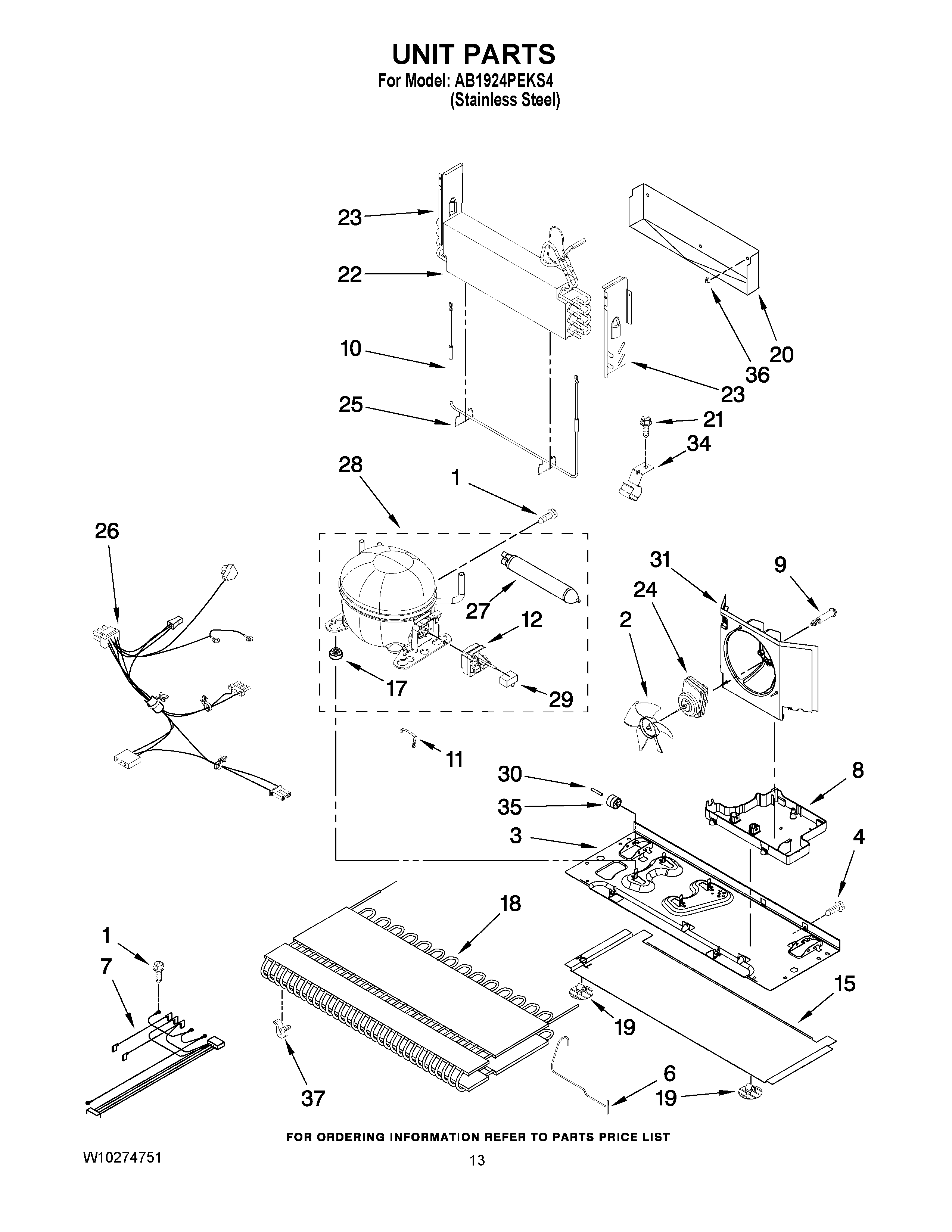

AB1924PEKS4 07 – UNIT PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (3/4``)
NI	Valve, Access (5/8``)
NI	Valve, Access (1/2``)
NI	VALVE, ACCESS (3/8``)
NI	Valve, Access (5/16``)
NI	VALVE, ACCESS (1/4``)
NI	MAY 876764
1	MAY 12992301
2	MAY 12825803
3	MAY W10210982
4	SCREW (10)
6	MAY W10217749
7	MAY W10225174
8	Drain Pan
9	MAY W10216919
10	MAY 12729130
11	STRAP, BALE
12	START DEVICE
15	MAY W10206336
17	Grommet (4)
18	MAY W10135028
19	MAY W10206339
20	MAY 12225401WD
21	MAY 12990701
22	MAY 12726401
23	Dam (Right Side)
23	DAM (LEFT SIDE)
24	MAY 12825102
25	W11673433 Whirlpool Clip
26	MAY W10273559
27	Drier
28	MAY W10223234
29	CAPACITOR
30	Axle, Roller (2)
31	SHROUD
34	MAY 10547003
35	Roller (2)
36	MAY 10623002
37	GROMMET, COND (4)
