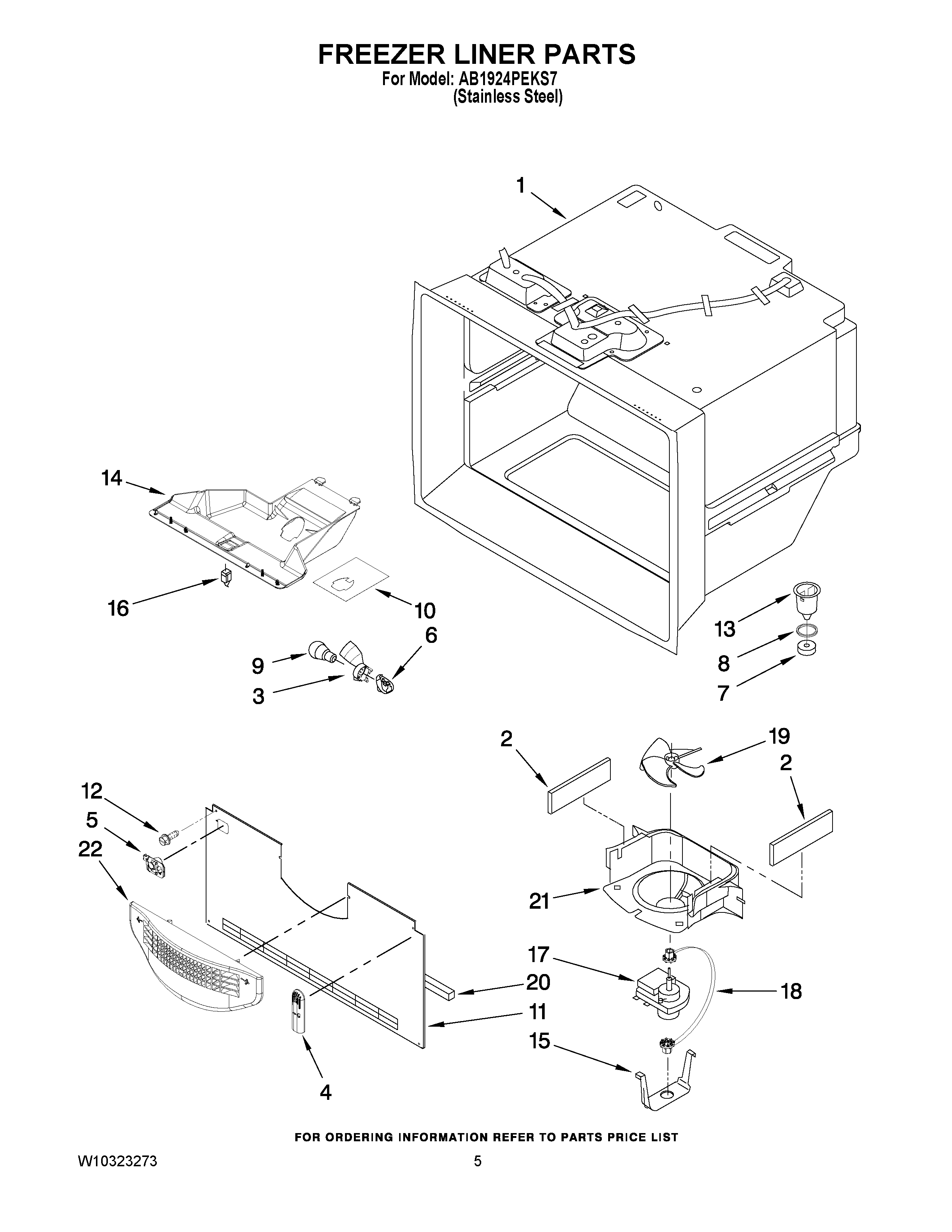

AB1924PEKS7 03 – FREEZER LINER PARTS

AB1924PEKS7 03 – FREEZER LINER PARTS

Written by

in

AB1924PEKS7 03 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	Gasket, Bottom
3	SHROUD-LGHT SOCKET
4	MAY 12815301
5	MAY 12932103
6	MAY W10134764V
7	Gasket
8	MAY M0500703
9	MAY A0282808V
10	FOIL-FZ LIGHT
11	MAY W10308419
12	MAY 12990101
13	MAY D7753903
14	MODULE-FZ LIGHT
15	CLIP, EVAP. MOTOR
16	MAY 12466114
17	MAY 10449516
18	MAY W10121318
19	Blade, Fan (Evaporator)
20	MAY 12739111
21	SHROUD, EVAP.FAN
22	Grille, Fz Air
