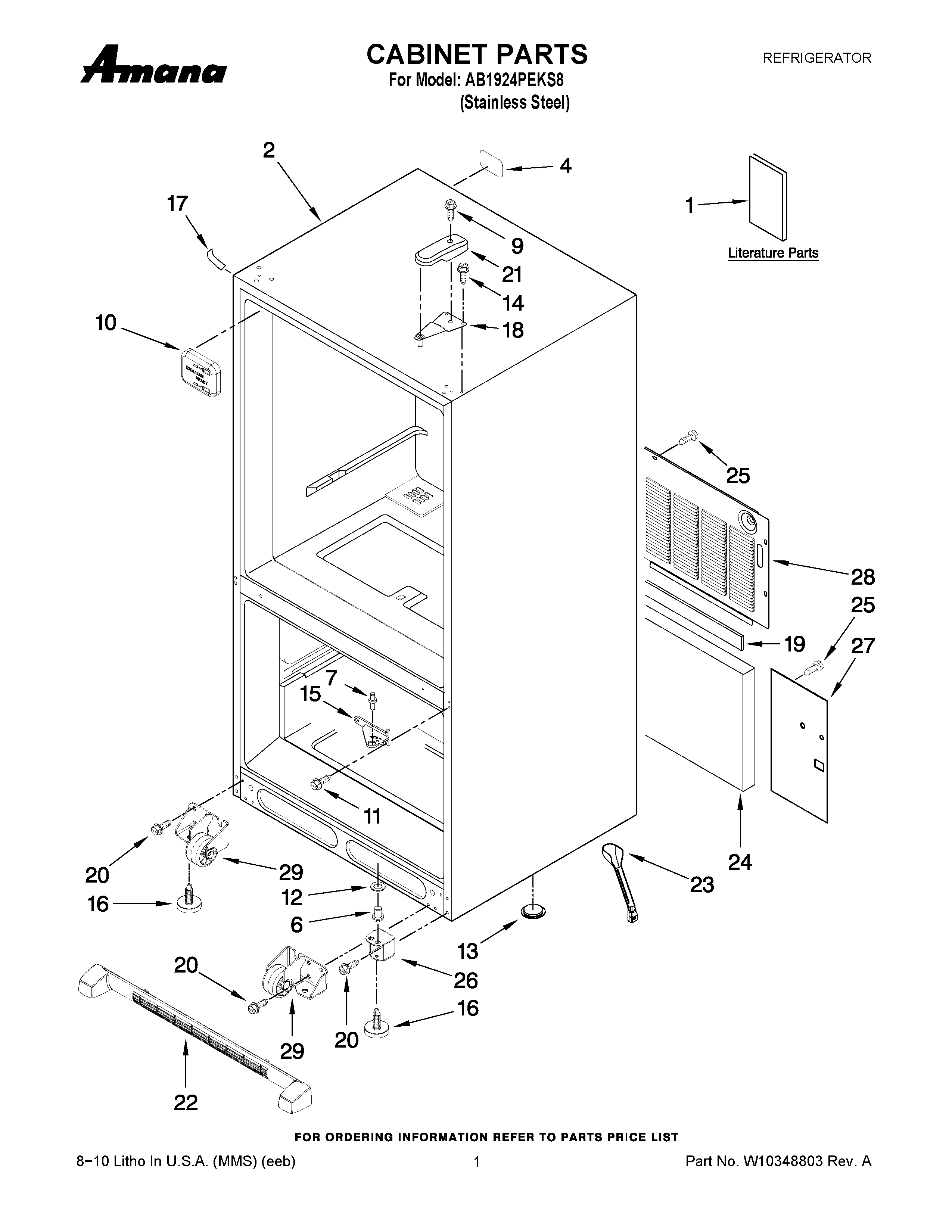

AB1924PEKS8 01 – CABINET PARTS

AB1924PEKS8 01 – CABINET PARTS

Written by

in

AB1924PEKS8 01 – CABINET PARTS

Products

PositionProduct
1MAY 12828189SP
1MAY W10308619
2LINER (NOT A SERVICEABLE PART)
4LABEL-FILL TUBE
6MAY 10200802
7PIN, CENTER HINGE (REAR)
9MAY 12992602
10COVER-FILL TUBE
11SCREW (6)
12MAY M0274062
13A3076901 Whirlpool Refrigerator Plug
14SCREW (6)
15MAY 12607104ED
16Brake, Foot
17COVER, CORNER (BLACK)
18MAY 12566606ED
19MAY B5759655
20Screw (8)
21COVER, HINGE(BLACK)
22Grille Assembly (Black)
23MAY W10210987
24Insulation, Sound
25SCREW (10)
26MAY W10325141
27MAY W10217701
28MAY W10211980
29ROLLER ASSY. (FRONT) (LEFT)
29ROLLER ASSY. (FRONT) (RIGHT)
