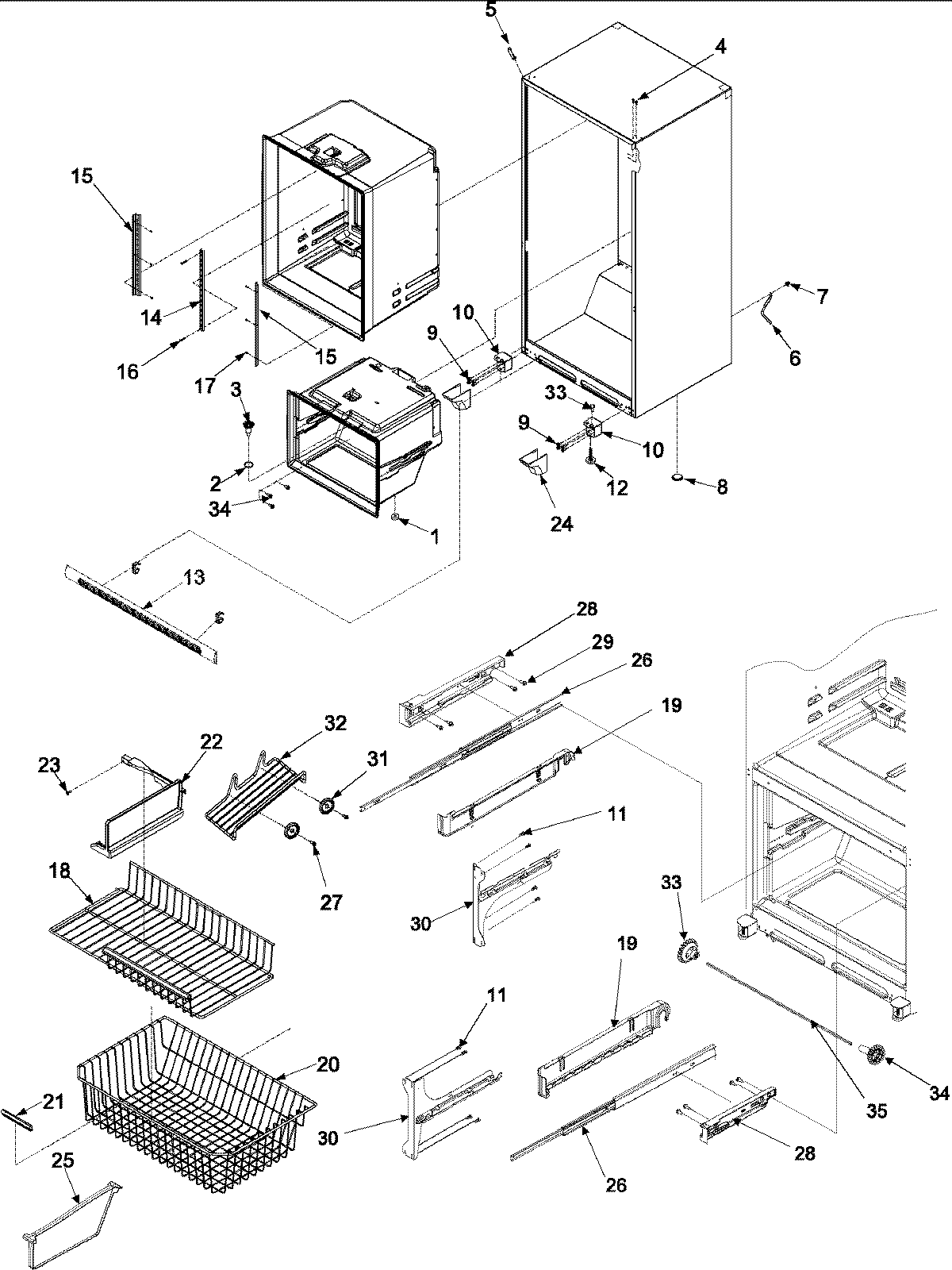

AB2026PEKB 06 – INTERIOR CABINET & FREEZER SHELVING

Products

PositionProduct
1Gasket
2MAY M0500703
3MAY D7753903
4MAY A4539607
567003485 Whirlpool Refrigerator Corner Cover (Black)
6MAY 67001066
767001067 Whirlpool Refrigerator Drain Tube Clip
8A3076901 Whirlpool Refrigerator Plug
9MAY M0241508
10HINGE, BOTTOM E-CT (BLK)
11MAY M0211018
12MAY 10354001
13WP67002224 Whirlpool Refrigerator Grille Assembly
13Clip, Grille
1467001073 Whirlpool Refrigerator Center Ladder
1567002489 Whirlpool Refrigerator Ladder L/R Side
16MAY M0231425
17SCREW, SM
18MAY 67002975
19MAY 67004728
19W10251557 Whirlpool Refrigerator Bracket
20W10503185 Whirlpool Dishwasher Cutlery Basket
21HANDLE, BASKET/SHELF
22Divider, Upper Basket
23MAY 67001310
24Cover, Lw Hinge (Black)
25DIVIDER, BASKET (LWR)
26MAY 67004758
27MAY M0230919
28W10284690 Whirlpool Refrigerator Bracket
28AMAY 67004972
29SCREW, SM
30WPW10330991 Whirlpool Refrigerator Bracket
30WPW10330993 Whirlpool Refrigerator Bracket
31WP10972101 Whirlpool Refrigerator Spacer
32Rack, Ice
33GEAR (RT)
34GEAR (LT)
35W11028221 Whirlpool Refrigerator Shaft
