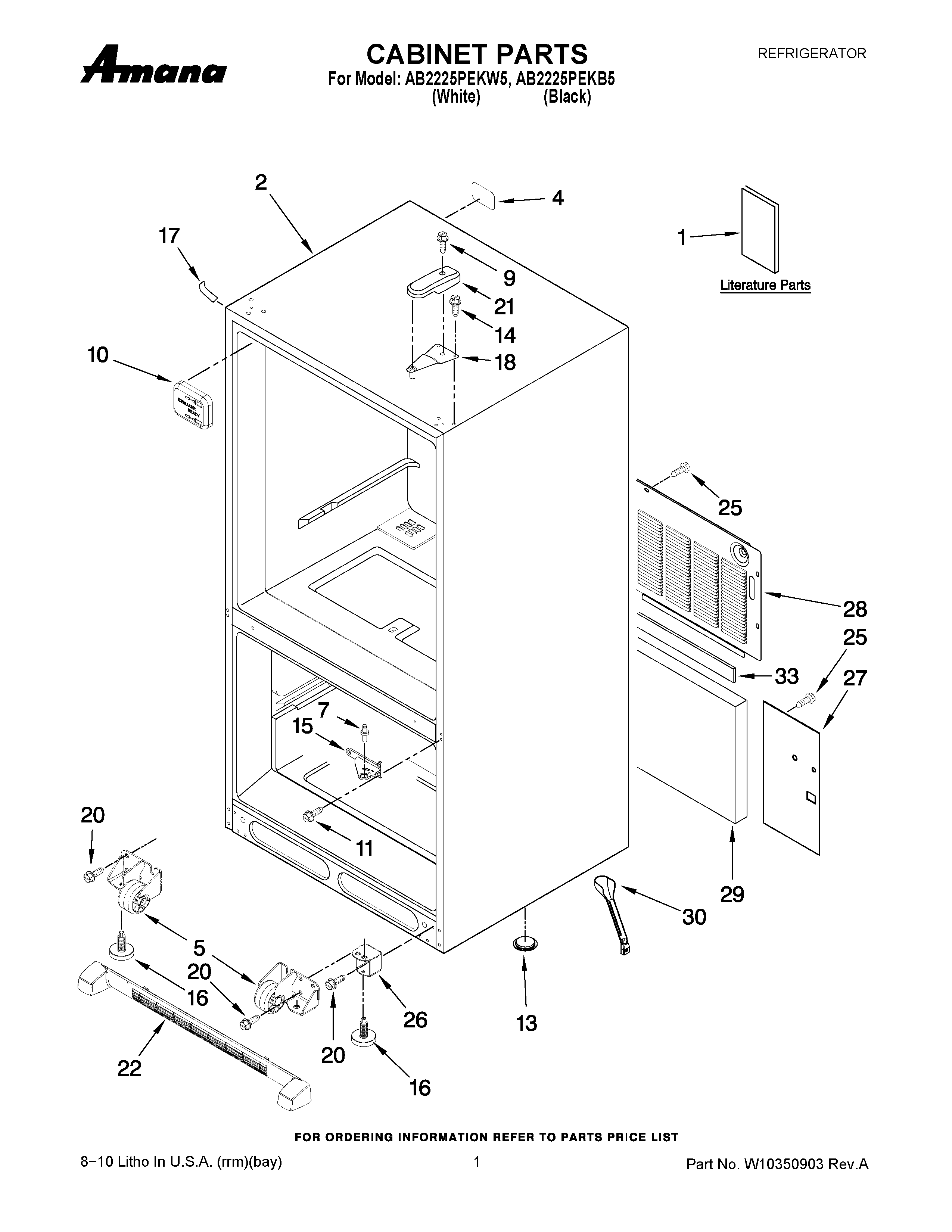

AB2225PEKB5 01 – CABINET PARTS

Products

PositionProduct
1MAY W10308619
1MAY 12828189SP
2LINER (NOT A SERVICEABLE PART)
4LABEL-FILL TUBE
5ROLLER ASSY. (FRONT) (RIGHT)
5ROLLER ASSY. (FRONT) (LEFT)
7PIN, CENTER HINGE (REAR)
9MAY 12992602
10COVER-FILL TUBE
11SCREW (6)
13A3076901 Whirlpool Refrigerator Plug
14SCREW (6)
15MAY 12607104ED
15MAY 12607103WD
16Brake, Foot
17Cover, Corner (2) (White)
17COVER, CORNER (BLACK)
18MAY 12566606ED
20Screw (8)
21COVER, HINGE(BLACK)
21MAY 12477601W
22MAY W10236196
22MAY W10236195
25SCREW (10)
26MAY W10315062
26MAY W10325141
27MAY W10217701
28MAY W10212535
29Insulation, Sound
30MAY W10210988
33MAY B5759655
