AB2225PEKS 02 – COMPRESSOR

AB2225PEKS 02 – COMPRESSOR

Written by

in

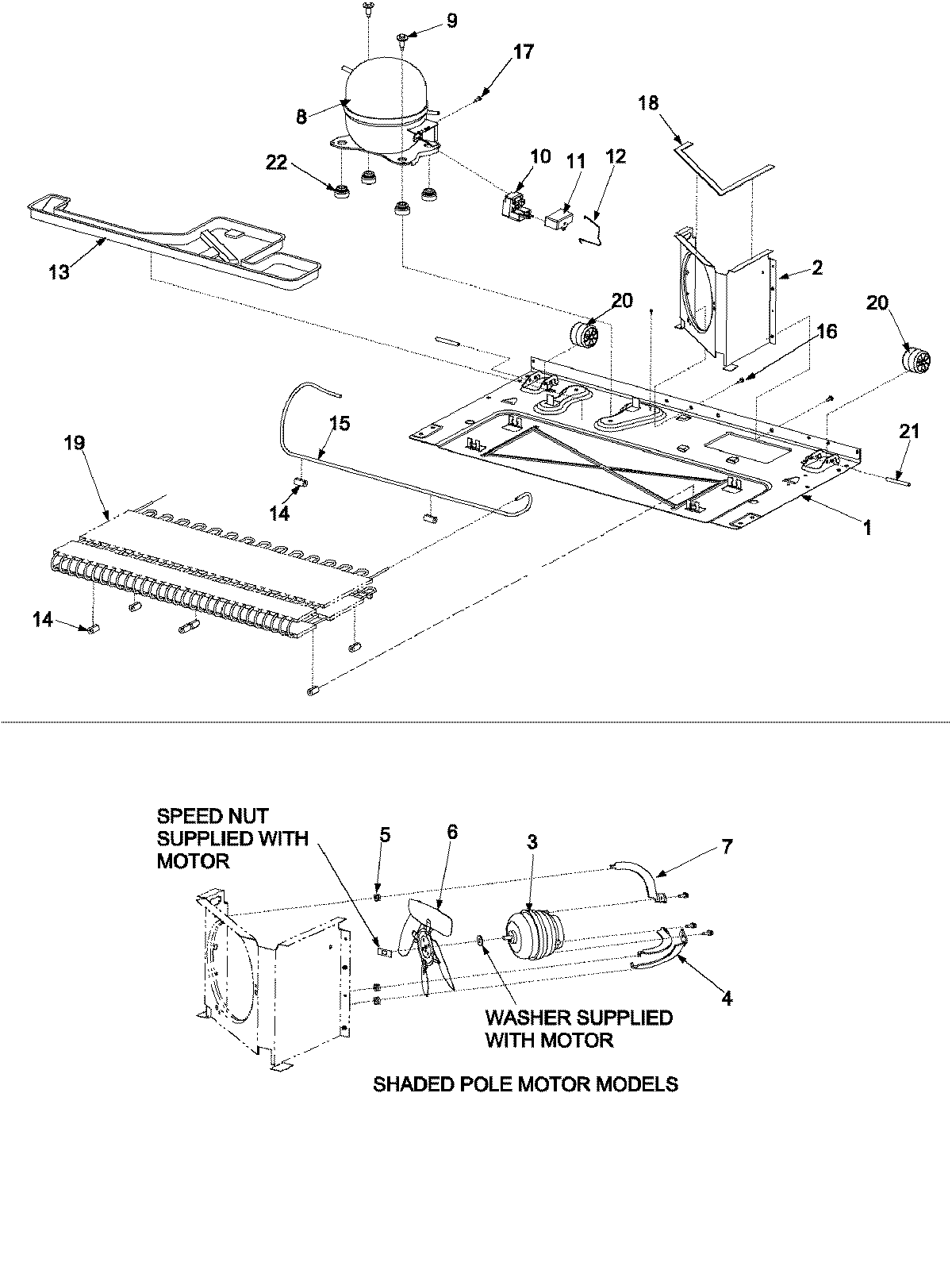

AB2225PEKS 02 – COMPRESSOR

Products

PositionProduct
NIMAY 12973201
NIMAY 67005069
1BASEPAN, MACHINE COMPARTMENT
1MAY 67001089
2SHROUD, CONDENSER FAN
2MAY 12575306
3Motor, Condenser
4Bracket, Motor (3)
5GROMMET, BRACKET
6WP12587601 Whirlpool Refrigerator Condenser Blade
7Screw (3)
8MAY 12002817
8MAY 67005028
9MAY M0221523
10MAY 67004815
11MAY 67002815
11MAY 67007162
12MAY 67007052
12MAY 67004687
13Drain Pan
1467005680 Whirlpool Refrigerator Condenser Grommet
15MAY 67004262
16MAY M0238616
17MAY M0231604
18WP854334 Whirlpool Air Conditioner Sealing Strip
19WP67006132 Whirlpool Refrigerator Condenser
20WP67005149 Whirlpool Roller
2167006434 Whirlpool Axle Pin
2267003493 Whirlpool Refrigerator Compressor Grommet
