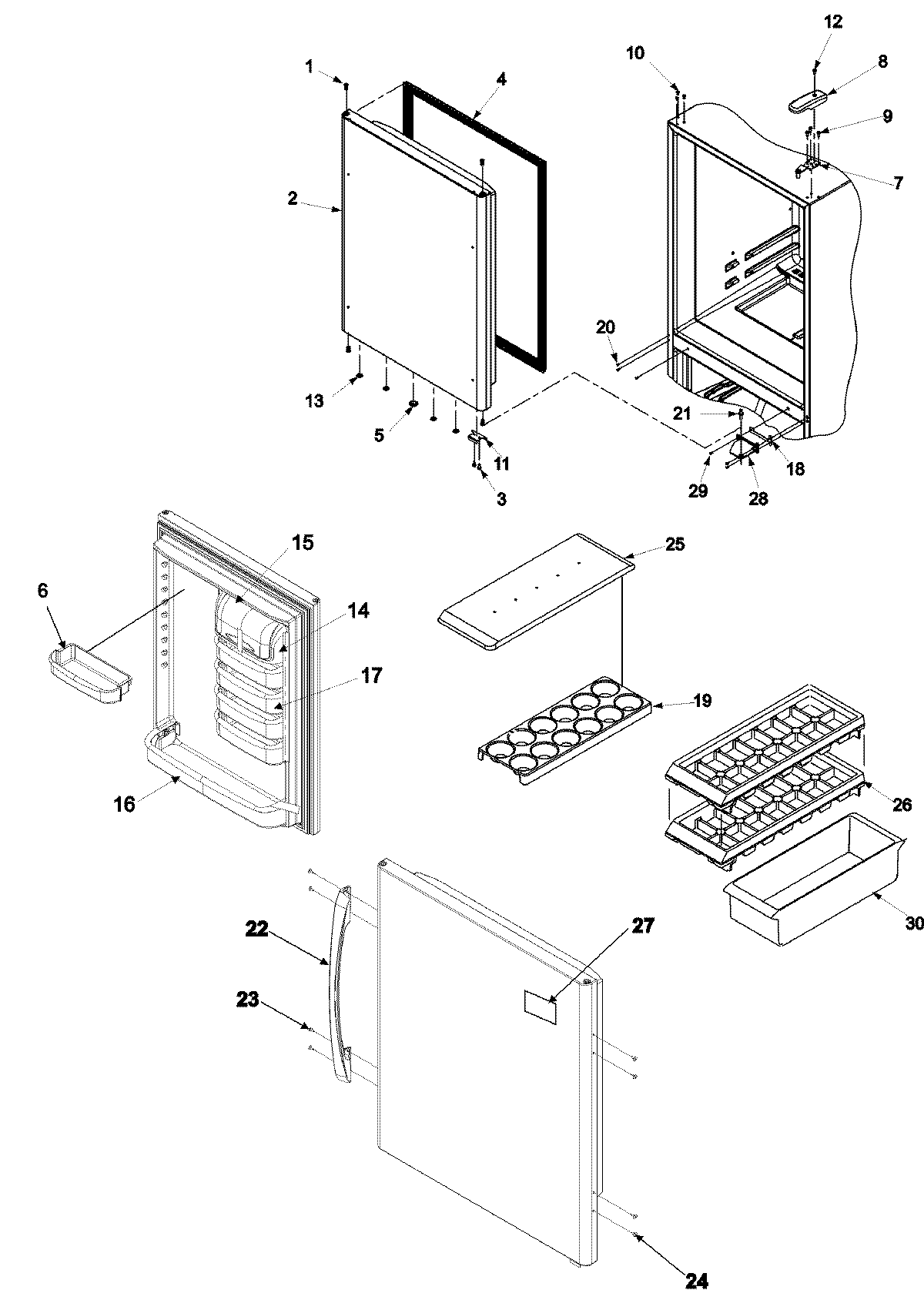

AB2225PEKS 08 – REFRIGERATOR DOOR

AB2225PEKS 08 – REFRIGERATOR DOOR

Written by

in

AB2225PEKS 08 – REFRIGERATOR DOOR

Products

PositionProduct
167004978 Whirlpool Refrigerator Black Door Bushing
2MAY 67004362
2MAY 67007081
3MAY M0211533
4WPW10436248 Whirlpool Door Gasket
4GASKET, REF DOOR (BLK)
5MAY A3080001
6MAY 67004449
7WP12566606ED Whirlpool Refrigerator Door Hinge
867001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
9MAY M0238731
10MAY M0310731
11W11708403 Whirlpool Door Stop
12WP8281196 Whirlpool Screw
1367004838 Whirlpool Refrigerator Button Vent Plug
14WP67001279 Whirlpool Refrigerator Dairy Tray
15WP12744905 Whirlpool Refrigerator Compressor Door
16RETAINER, DOOR
17WPW10324005 Whirlpool Refrigerator Cantilever Bin
18MAY M0274062
19MAY 10436506
20WP489349 Whirlpool Refrigerator Screw
21MAY 10351001
22HANDLE ASSY., DOOR (STNLS)
22MAY 67004144
2367006806 Whirlpool Refrigerator Screw HI Torque Black
2412991101 Whirlpool Refrigerator Screw
24WP12246610 Whirlpool Refrigerator Handle Plug
24WP12246608 Whirlpool Refrigerator Button
25MAY 10436404
26MAY 67001205
27Y12528501 Whirlpool Refrigerator Nameplate
28WP12607104ED Whirlpool Refrigerator Door Hinge
29MAY M0226233
30MAY 10423131
