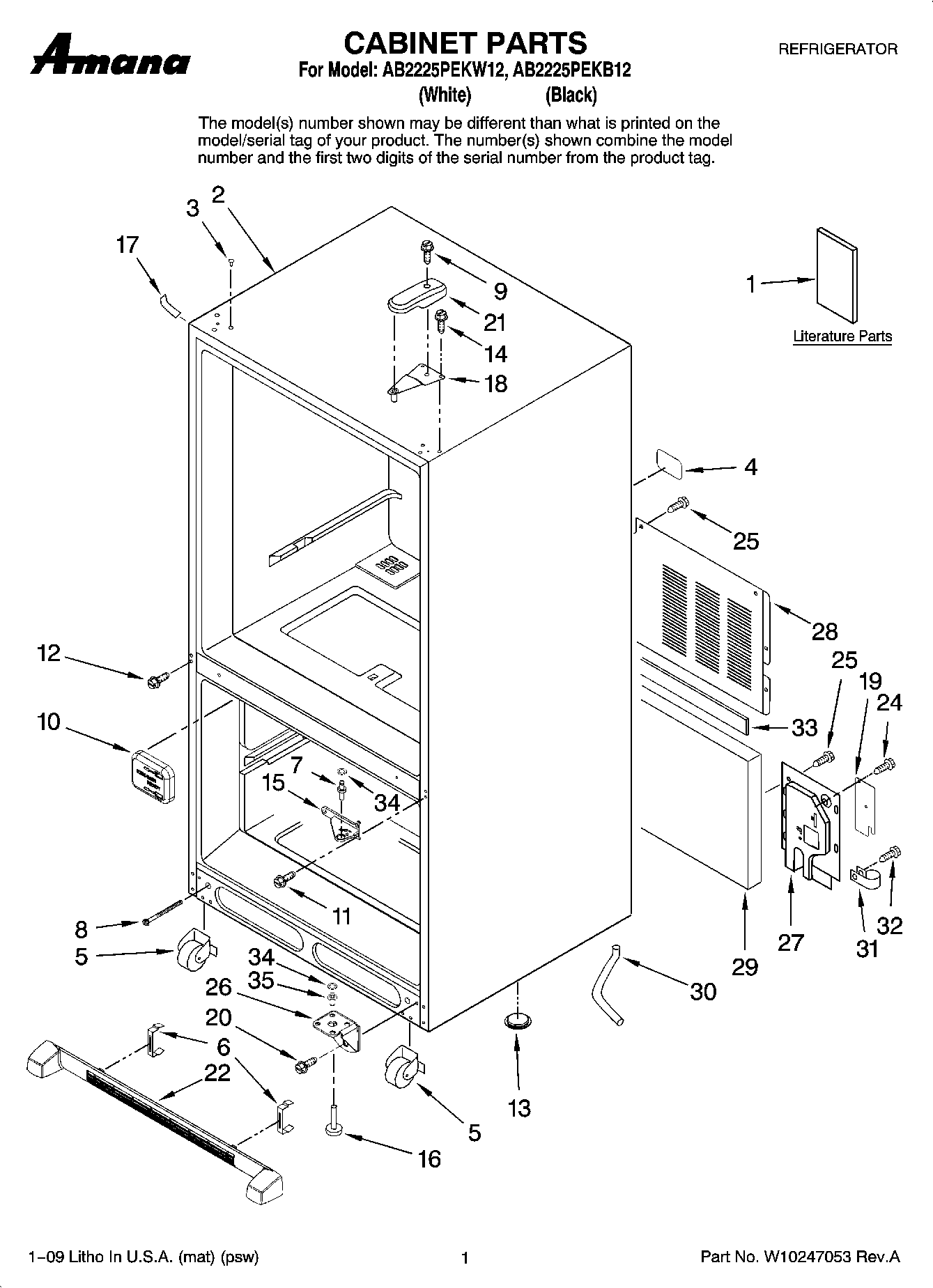

AB2225PEKW12 01 – CABINET PARTS

Products

Position	Product
1	Owners Manual
1	MAY 12827958
3	MAY M0310731
3	MAY M0310729
4	MAY 67005064
5	Roller Assy.(Rear)
6	Clip, Grille
7	WP67006744 Whirlpool Refrigerator Center Pin
8	71003131 Whirlpool Oven Screw
9	WP8281196 Whirlpool Screw
10	WP67001098 Whirlpool Refrigerator Tube Cover
12	WP67006380 Whirlpool Screw
13	A3076901 Whirlpool Refrigerator Plug
14	WP489349 Whirlpool Refrigerator Screw
15	MAY 12607103WD
15	MAY 12607103ED
16	W11177593 Whirlpool Leveling Feet
17	67003485 Whirlpool Refrigerator Corner Cover (Black)
17	Cover, Corner (2) (White)
18	Hinge, Top
19	MAY 12479902
20	MAY 67006564
21	67001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
21	67001014 Whirlpool Refrigerator Top Hinge Cover White
22	WP67002224 Whirlpool Refrigerator Grille Assembly
22	TOE GRILLE ASSY (WHT)
24	MAY 67006662
25	Screw (10)
26	MAY 12465002WD
26	MAY 67001068
27	MAY W10132665
28	MAY 67006102
29	67003796 Whirlpool Refrigerator Fiber Acoustic
30	MAY 67001066
31	67001067 Whirlpool Refrigerator Drain Tube Clip
32	SCREW
33	Gasket
34	MAY M0274062
34	MAY M274057
35	67007018 Whirlpool Refrigerator Bottom Hinge PIN
