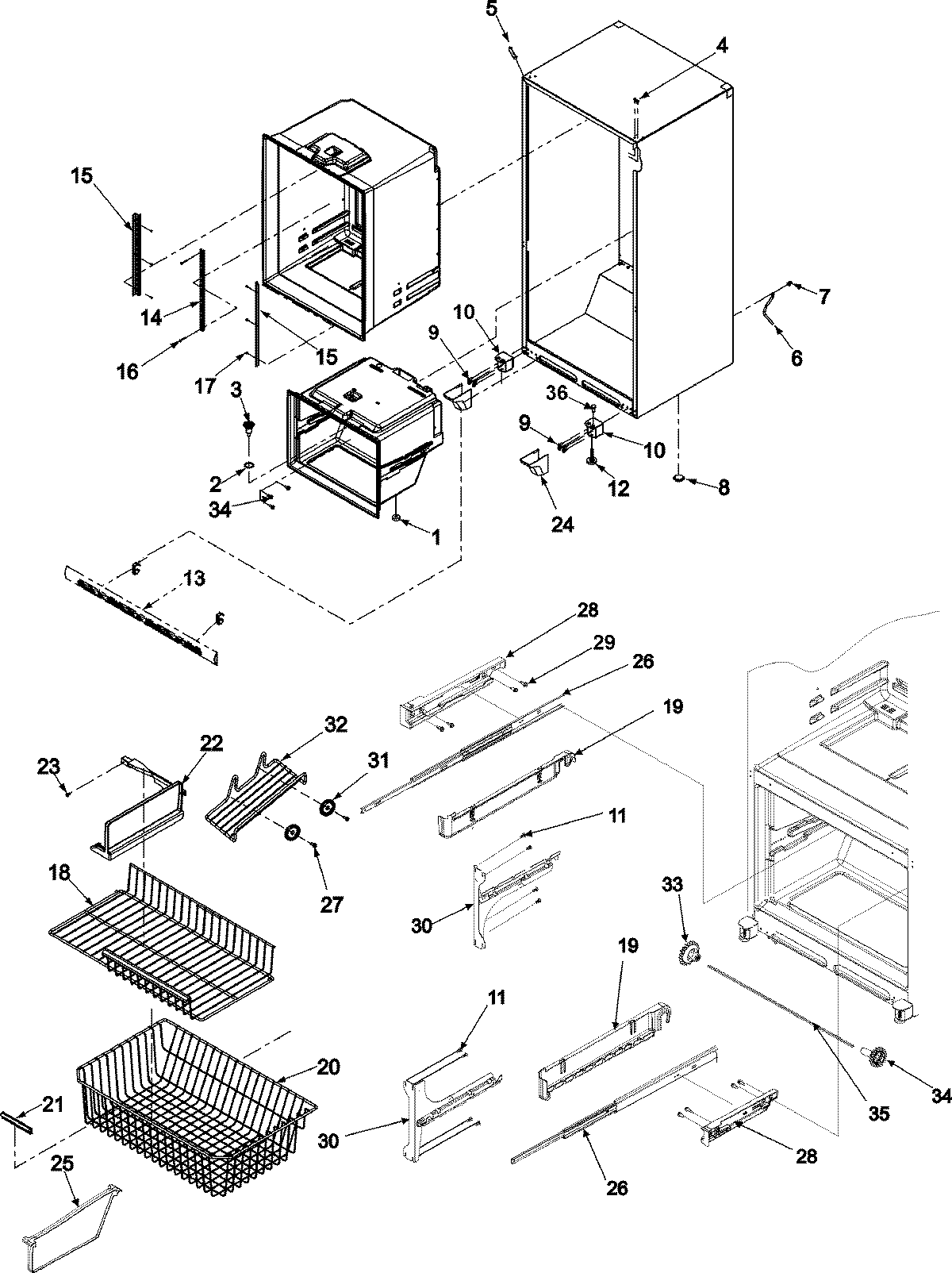

AB2526PEKW 06 – INTERIOR CABINET & FREEZER SHELVING

Products

PositionProduct
1Gasket
2MAY M0500703
3MAY D7753903
4MAY A4539607
567003484 Whirlpool Refrigerator White Corner Cover
6MAY 67001066
767001067 Whirlpool Refrigerator Drain Tube Clip
8A3076901 Whirlpool Refrigerator Plug
9MAY 67003858
9MAY 67006564
10HINGE, BOTTOM E-CT (WHT)
1012906303WD Whirlpool Refrigerator Bracket
11Screw (8)
12MAY 10354001
13WPW10534154 Whirlpool Refrigerator Front Grille
13TOE GRILLE ASSY (WHT)
13Clip, Grille
1467001073 Whirlpool Refrigerator Center Ladder
1567002489 Whirlpool Refrigerator Ladder L/R Side
16MAY M0231425
16W10709795 Whirlpool Refrigerator Screw
17SCREW, SM
17MAY 67006400
18MAY 67002765
19WPW10280608 Whirlpool Refrigerator Bracket
19WPW10280613 Whirlpool Refrigerator Bracket
20WPW10503184 Whirlpool Refrigerator Freezer Basket
21HANDLE, BASKET/SHELF
22Divider, Upper Basket
23MAY 67001310
23MAY 67006608
24MAY 12561901W
25MAY 67004064
26MAY 67004065
27MAY M0230919
28AW10284690 Whirlpool Refrigerator Bracket
28MAY 67004972
29SCREW, SM
29Screw (6)
30BRACKET, DRAWER SLIDE (RT)
30BRACKET, DRAWER SLIDE (LT)
31WP10972101 Whirlpool Refrigerator Spacer
32Rack, Ice
33GEAR (RT)
34GEAR (LT)
35W11028221 Whirlpool Refrigerator Shaft
