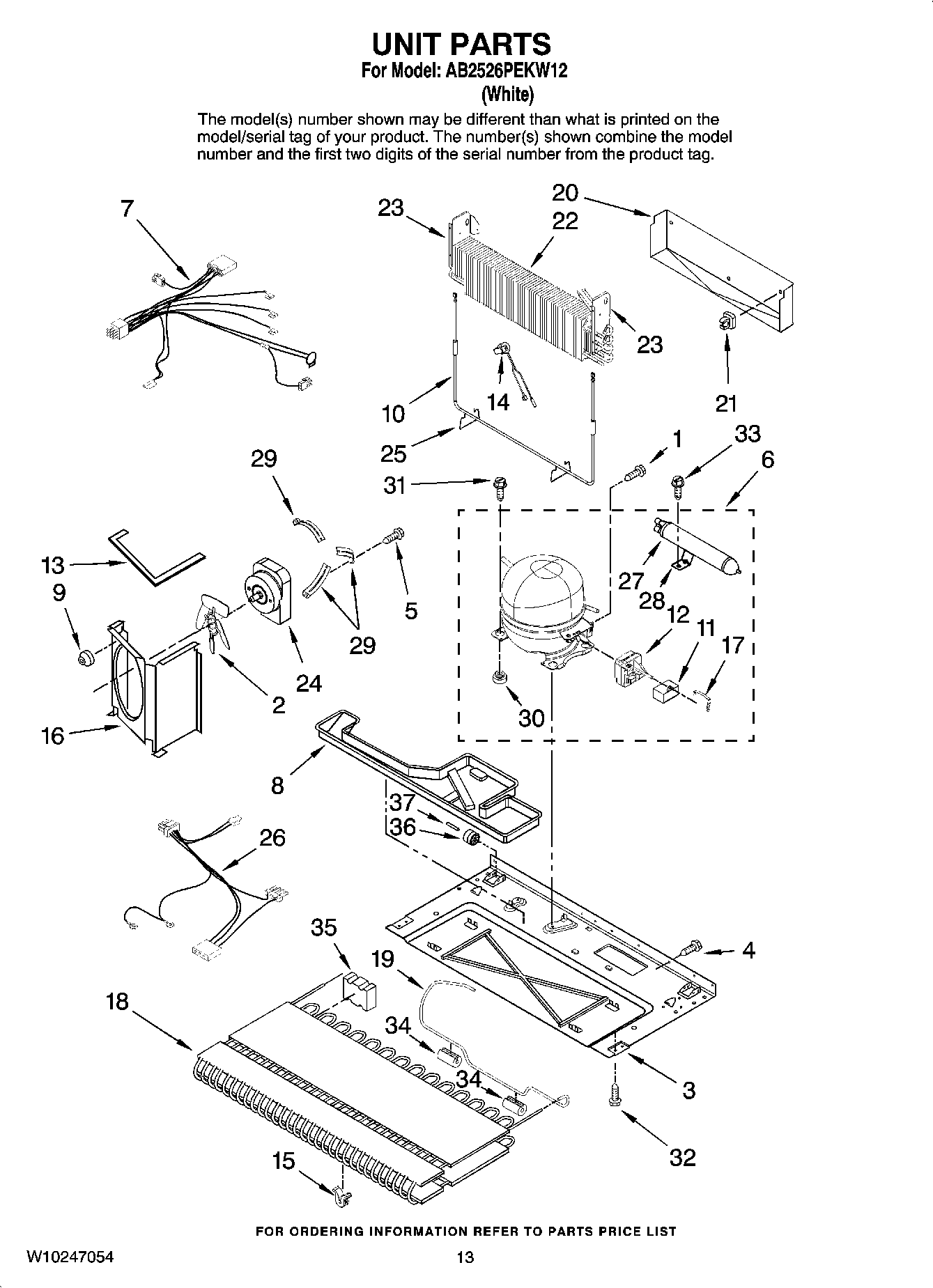

AB2526PEKW12 07 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (1/4“)
NI	MAY 876764
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (1/2“)
NI	MAY 13015202
NI	Valve, Access (5/8“)
NI	Valve, Access (3/4“)
1	MAY 67006433
2	MAY W10162928
3	MAY 12457108
4	Screw (10)
5	Screw (3)
6	MAY 12049773
7	MAY W10169651
8	Drain Pan
9	GROMMET, BRACKET
10	MAY 12729120
11	MAY 67007162
12	MAY 67006453
12	Overload/Relay (Service)
13	WP854334 Whirlpool Air Conditioner Sealing Strip
14	Thermostat, Def.
15	GROMMET, COND (4)
16	Shroud, Condenser
17	MAY 67007052
18	WP67006132 Whirlpool Refrigerator Condenser
19	MAY 12866903
20	MAY 67002490
21	MAY 10623002
22	MAY 67003720
23	MAY 67001083
23	MAY 67001084
24	MAY W10211284
25	W11673433 Whirlpool Clip
26	MAY W10169655
27	Drier
28	MAY 10547003
29	MAY 67004953
30	67003493 Whirlpool Refrigerator Compressor Grommet
31	Screw (2)
32	Screw (4)
33	SCREW
34	67005680 Whirlpool Refrigerator Condenser Grommet
35	MAY 67005491
36	MAY 10450603
37	MAY M1205302
