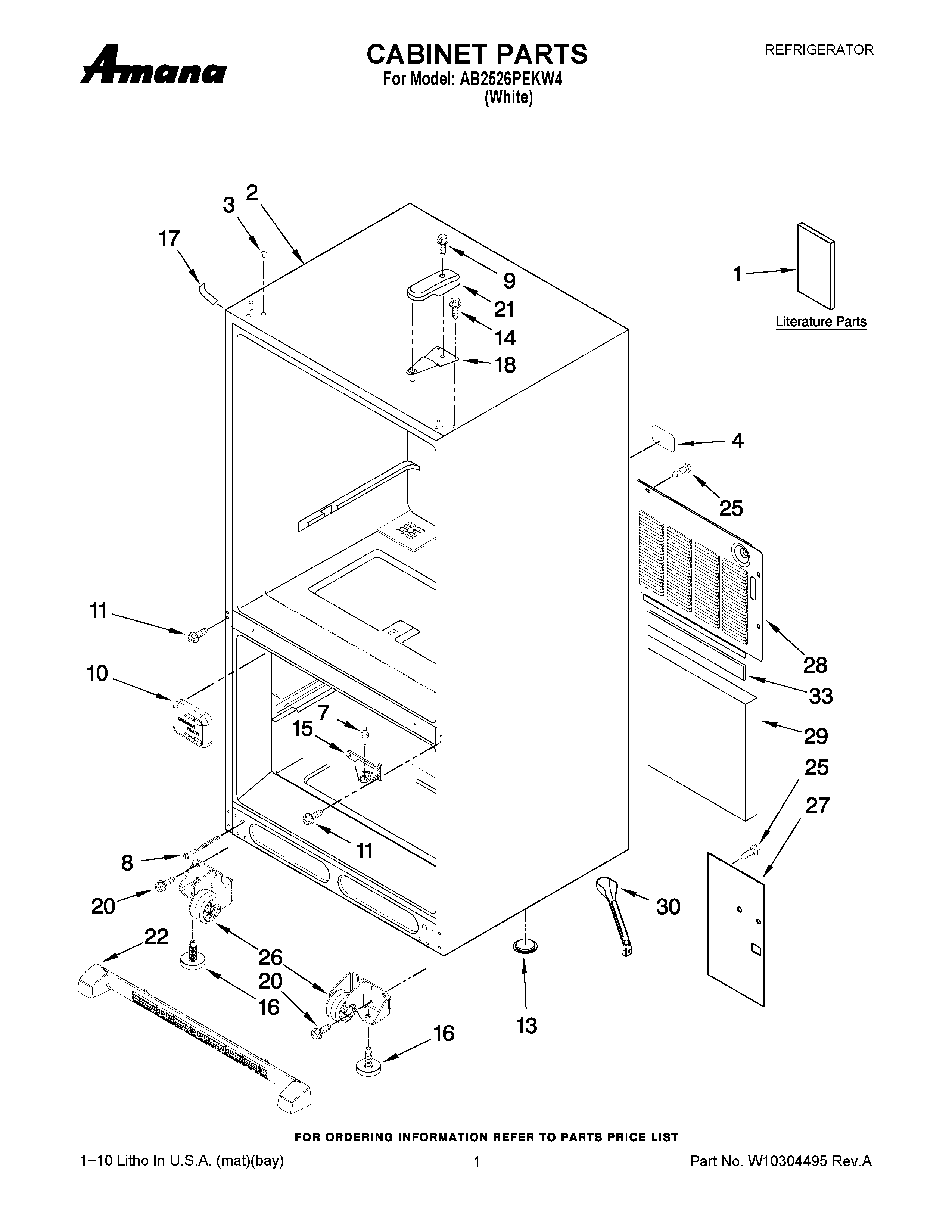

AB2526PEKW4 01 – CABINET PARTS

Products

Position	Product
1	MAY 12828189SP
1	MAY W10279339
2	LINER (NOT A SERVICEABLE PART)
3	MAY M0310729
4	LABEL-FILL TUBE
7	MAY 10351006
8	Bolt, Adjusting (Rear)
9	MAY 12992602
10	COVER-FILL TUBE
11	SCREW (6)
13	A3076901 Whirlpool Refrigerator Plug
14	SCREW (6)
15	MAY 12607103WD
16	Brake, Foot
17	Cover, Corner (2) (White)
18	Hinge, Top
20	Screw (8)
21	MAY 12477601W
22	MAY W10244559
25	SCREW (10)
26	ROLLER ASSY. (FRONT) (RIGHT)
26	ROLLER ASSY. (FRONT) (LEFT)
27	MAY W10217701
28	MAY W10212541
29	Insulation, Sound
30	MAY W10210988
33	Gasket
