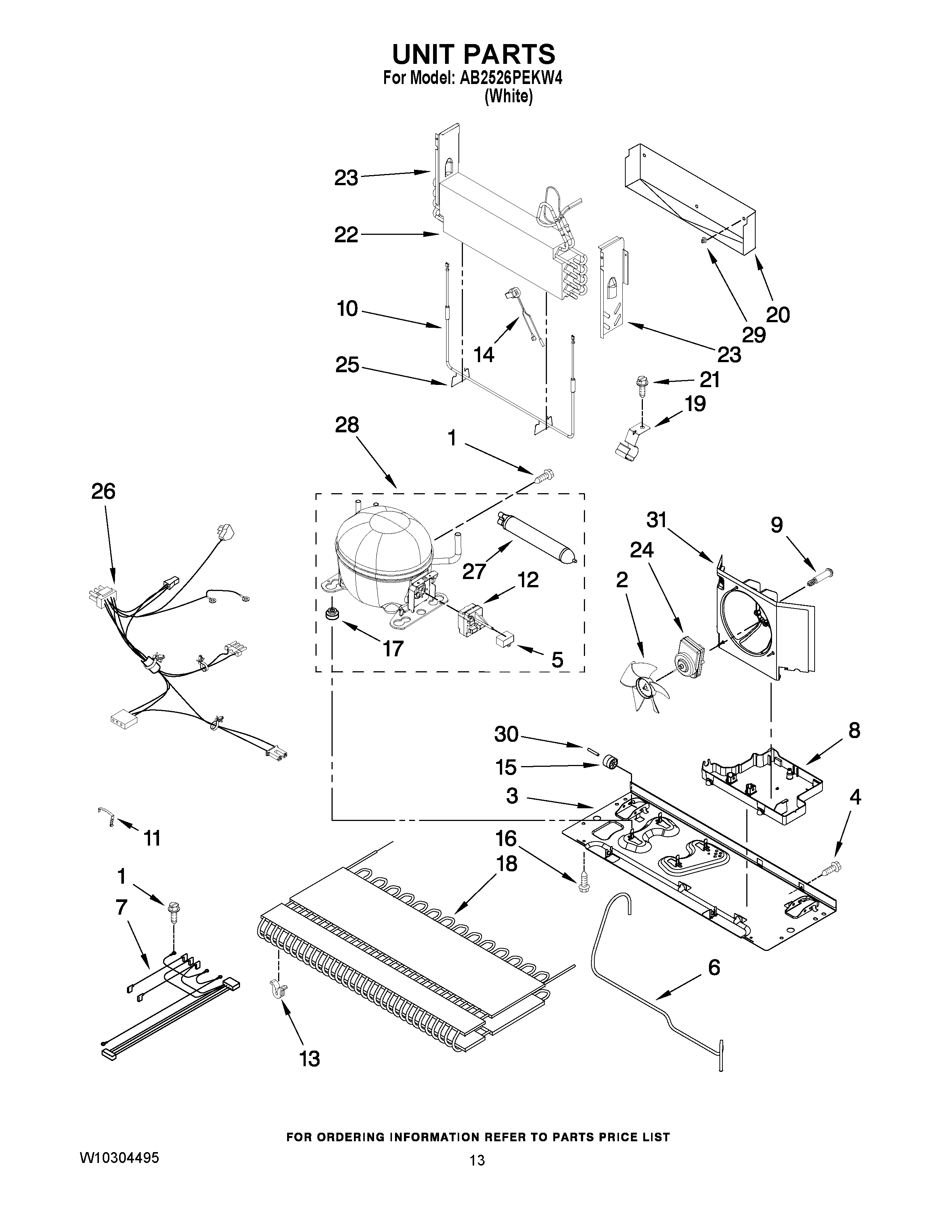

AB2526PEKW4 07 – UNIT PARTS

AB2526PEKW4 07 – UNIT PARTS

Written by

in

AB2526PEKW4 07 – UNIT PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
NI	Valve, Access (1/2“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
NI	MAY 876764
1	MAY 12992301
2	MAY 12825803
3	MAY W10210985
4	SCREW (10)
5	CAPACITOR
6	MAY W10217747
7	HARNESS, EVAP. HEATER
8	MAY W10296785
9	MAY W10216919
10	MAY 12729132
11	STRAP, BALE
12	START DEVICE
13	GROMMET, COND (4)
14	Thermostat, Def.
15	Roller (2)
16	MAY 12992101
17	Grommet (4)
18	MAY W10135026
19	MAY 10547003
20	MAY W10292803
21	MAY 12990701
22	MAY 12726403
23	Dam (Right Side)
23	DAM (LEFT SIDE)
24	MAY W10246191
25	W11673433 Whirlpool Clip
26	MAY W10273559
27	Drier
28	MAY W101223234
29	MAY 10623002
30	Axle, Roller (2)
31	SHROUD
