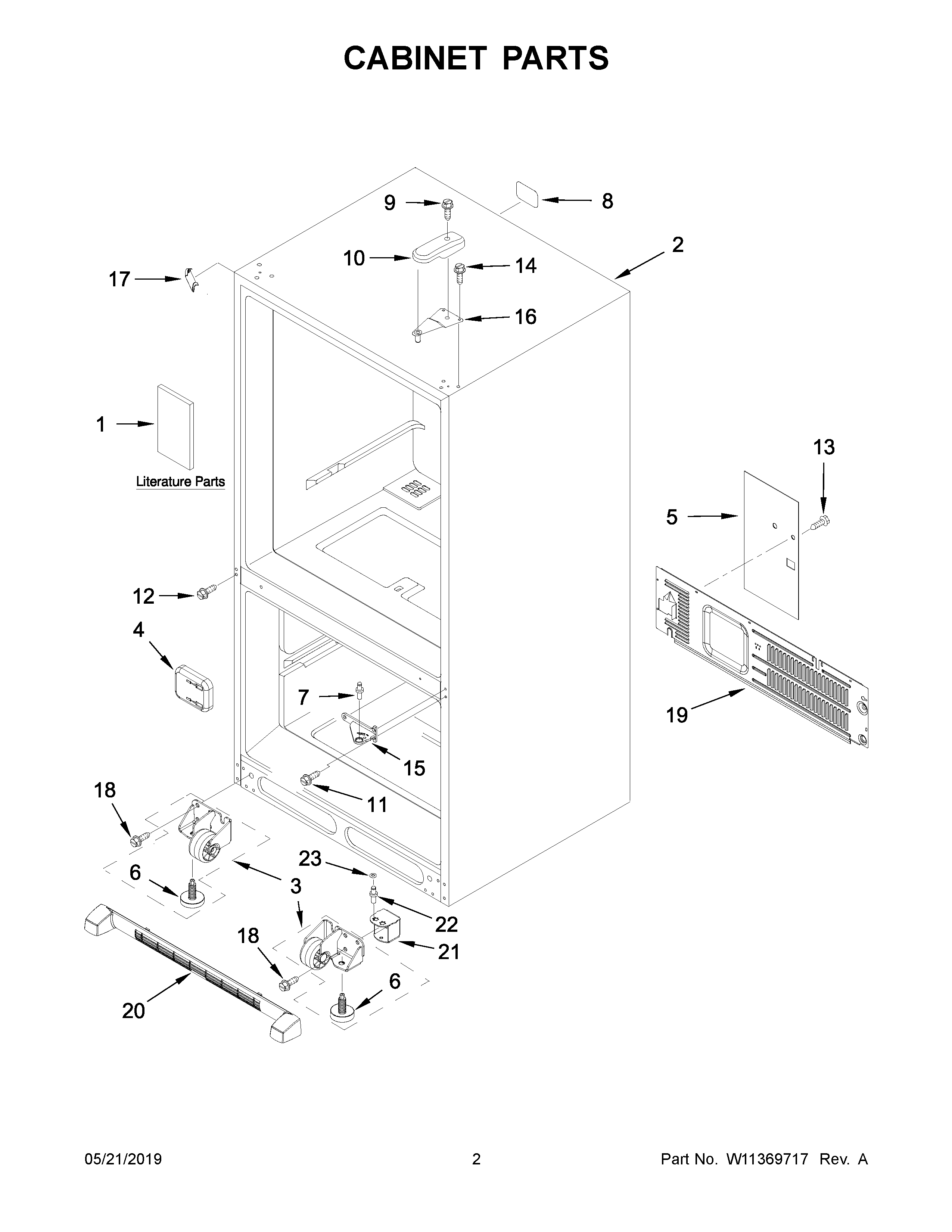

ABB1921BRB01 02 – CABINET PARTSadmin2025-04-26T08:54:57+00:00ABB1921BRB01 02 – CABINET PARTS
Products
| Position | Product |
|---|
| 1B | MAY W11297589 |
| 1A | MAY W11306934 |
| 1 | USE AND CARE GUIDE |
| 2 | LINER (NOT A SERVICEABLE PART) |
| 3 | ROLLER ASSEMBLY (LEFT HAND) |
| 3A | ROLLER ASSEMBLY (RIGHT HAND) |
| 4 | COVER, FILL TUBE |
| 5 | MAY W10217701 |
| 6 | Brake, Foot |
| 7 | PIN, CENTER HINGE (REAR) |
| 8 | LABEL-FILL TUBE |
| 9 | MAY 12992602 |
| 10B | MAY 12477601AP |
| 10 | MAY 12477601W |
| 10A | COVER, HINGE(BLACK) |
| 11 | MAY W10673840 |
| 12 | MAY 12991604 |
| 13 | SCREW (10) |
| 14 | SCREW (6) |
| 15A | MAY 12607104ED |
| 15B | MAY 12607103AP |
| 15 | MAY 12607103WD |
| 16 | MAY 12566606ED |
| 17A | COVER, CORNER (BLACK) |
| 17B | COVER, CORNER (GREY) |
| 17 | Cover, Corner (2) (White) |
| 18 | MAY W10709365 |
| 19 | MAY W10210978 |
| 20B | ASSEMBLY, GRILLE (GREY) |
| 20A | ASSEMBLY, GRILLE (BLACK) |
| 20 | ASSEMBLY, GRILLE (WHITE) |
| 21 | MAY W10490811 |
| 21A | HINGE, BOTTOM (BLACK) |
| 21B | HINGE, BOTTOM (GREY) |
| 22 | MAY 10200802 |
| 23A | MAY M0274062 |
| 23 | MAY M0274057 |
