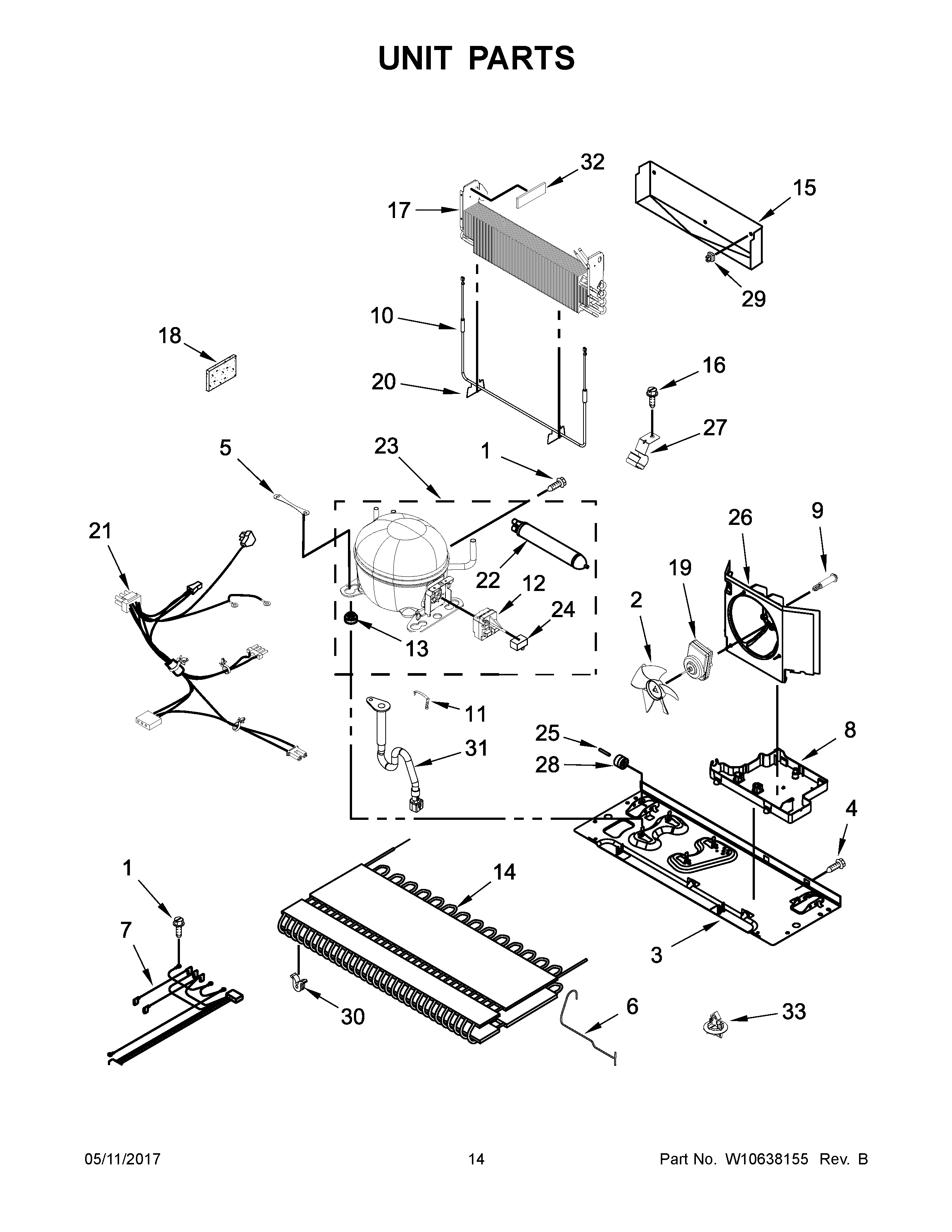

ABB1921BRM00 08 – UNIT PARTS

Products

Position	Product
NI	Valve, Access (1/2“)
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
NI	LINER (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
NI	MAY 876764
1	MAY 12992301
2	MAY 12825803
3	MAY W10480107
4	SCREW (10)
5	MAY W10236396
6	MAY W10294014
7	HARNESS, EVAPORATOR (INCLUDES HEATER)
8	MAY W10655367
9	MAY W10622701
10	HEATER, EVAPORATOR
11	MAY W10216075
12	START DEVICE, COMBINATION (START RELAY AND OVERLOAD) (PRODUCTION)
13	GROMMET
14	MAY W10346423
15	MAY W10292801
16	MAY 12990701
17	EVAPORATOR
18	SEALER, INSULATION
19	MAY W10239053
20	W11673433 Whirlpool Clip
21	MAY W10679216
22	Drier
23	COMPRESSOR KIT (CONTAINS ITEMS 12, 17, 27, & 29)
24	MAY W10350564
25	Axle, Roller (2)
26	SHROUD
27	MAY W10281329
28	Roller (2)
29	MAY 10623002
30	GROMMET, COND (4)
31	MAY W10622098
32	Gasket, Bottom
33	MAY W10815863
