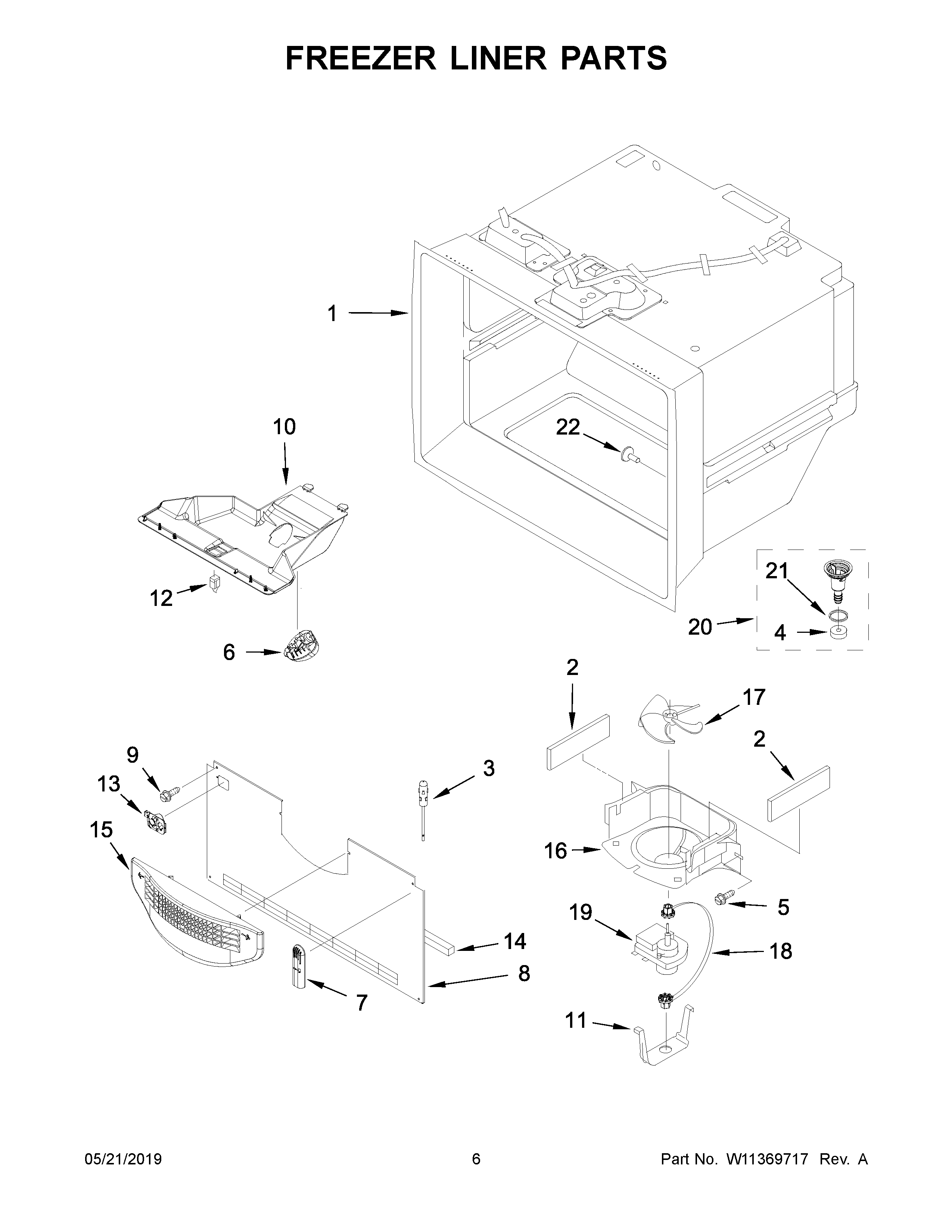

ABB1921BRM01 04 – FREEZER LINER PARTS

ABB1921BRM01 04 – FREEZER LINER PARTS

Written by

in

ABB1921BRM01 04 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	Gasket, Bottom
3	MAY 12791409SP
4	Gasket
5	MAY 12990504
6	MAY W11251749
7	MAY 12815301
8	MAY W10308414
9	MAY 12990101
10	MODULE-FZ LIGHT
11	CLIP, EVAP. MOTOR
12	SWITCH, LIGHT
13	MAY W11261524
14	MAY A3189394
15	Grille, Fz Air
16	SHROUD, EVAP.FAN
17	Blade, Fan (Evaporator)
18	MAY W10121318
19	MAY W10128551
20	MAY W10662407
21	MAY M0500703
22	WHITE
