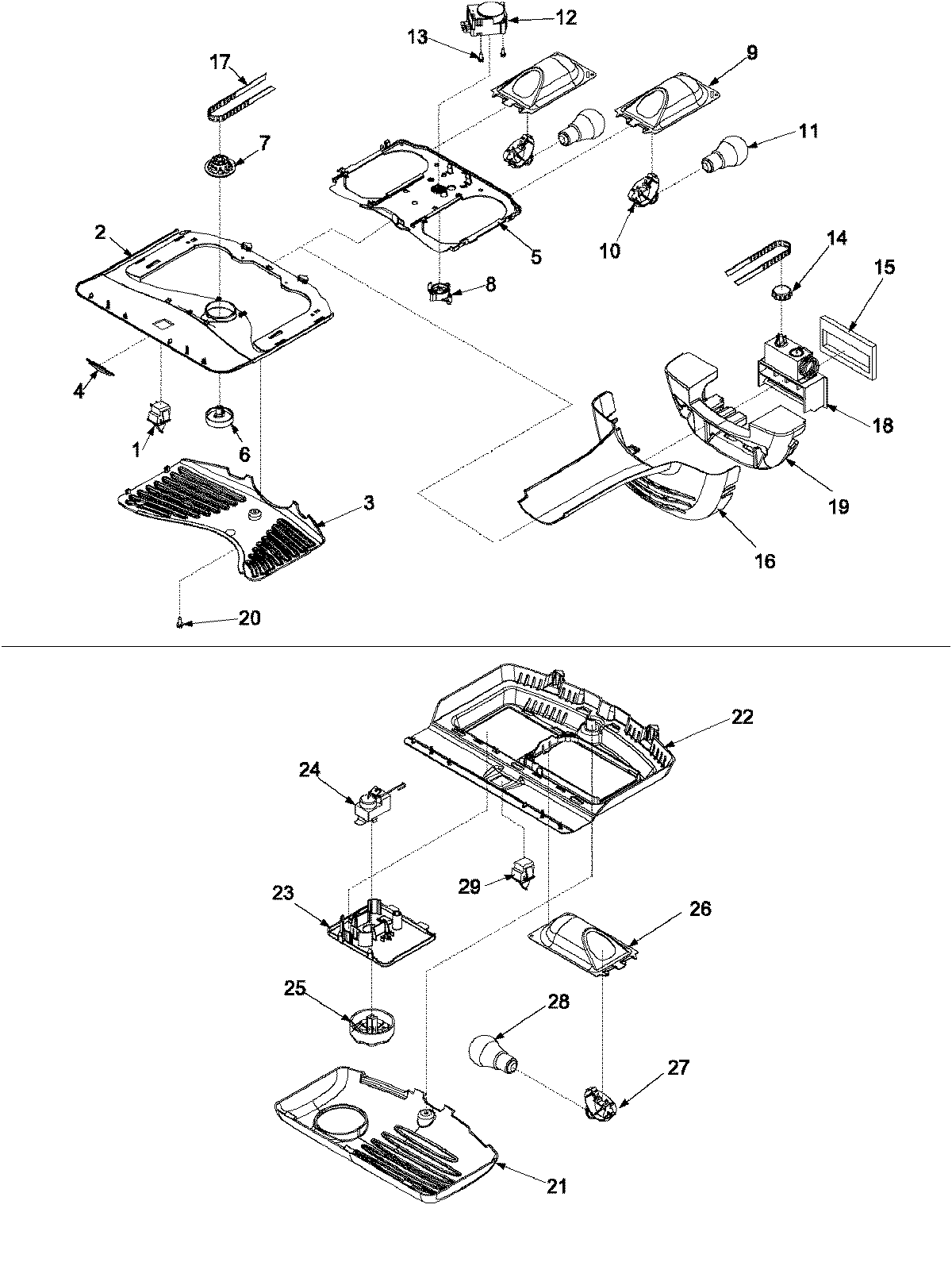

| 1 | Switch, Light (2) |
| 2 | Pan, Timer Light Housing |
| 3 | MAY 67002301 |
| 4 | Logo |
| 5 | WP67002085 Whirlpool Refrigerator Housing |
| 7 | 67001033 Whirlpool Refrigerator Knob Gear |
| 8 | 67001034 Whirlpool Refrigerator Tensioner Belt |
| 11 | RANGE ONLY 40W 120V APPL BULB |
| 12 | WP67001036 Whirlpool Refrigerator Defrost Timer |
| 13 | MAY M0216705 |
| 14 | MAY 67001037 |
| 15 | MAY A0282803 |
| 16 | MAY 67002000 |
| 17 | MAY 67001040 |
| 18 | MAY 67001041 |
| 19 | MAY 67003803 |
| 20 | MAY 67005653 |
| 20 | MAY 12466101 |
| 21 | MAY 67001285 |
| 22 | WP12476002 Whirlpool Refrigerator Module |
| 23 | Panel, Fz Control |
| 24 | WP67003000 Whirlpool Refrigerator Control |
| 26 | MAY 67001035 |
| 27 | Socket, Light (2) |
| 28 | Harness, Controls (Refrigerator) (Includes 16) |
| 29 | MAY 12966301 |
| 29 | MAY 67001049 |
