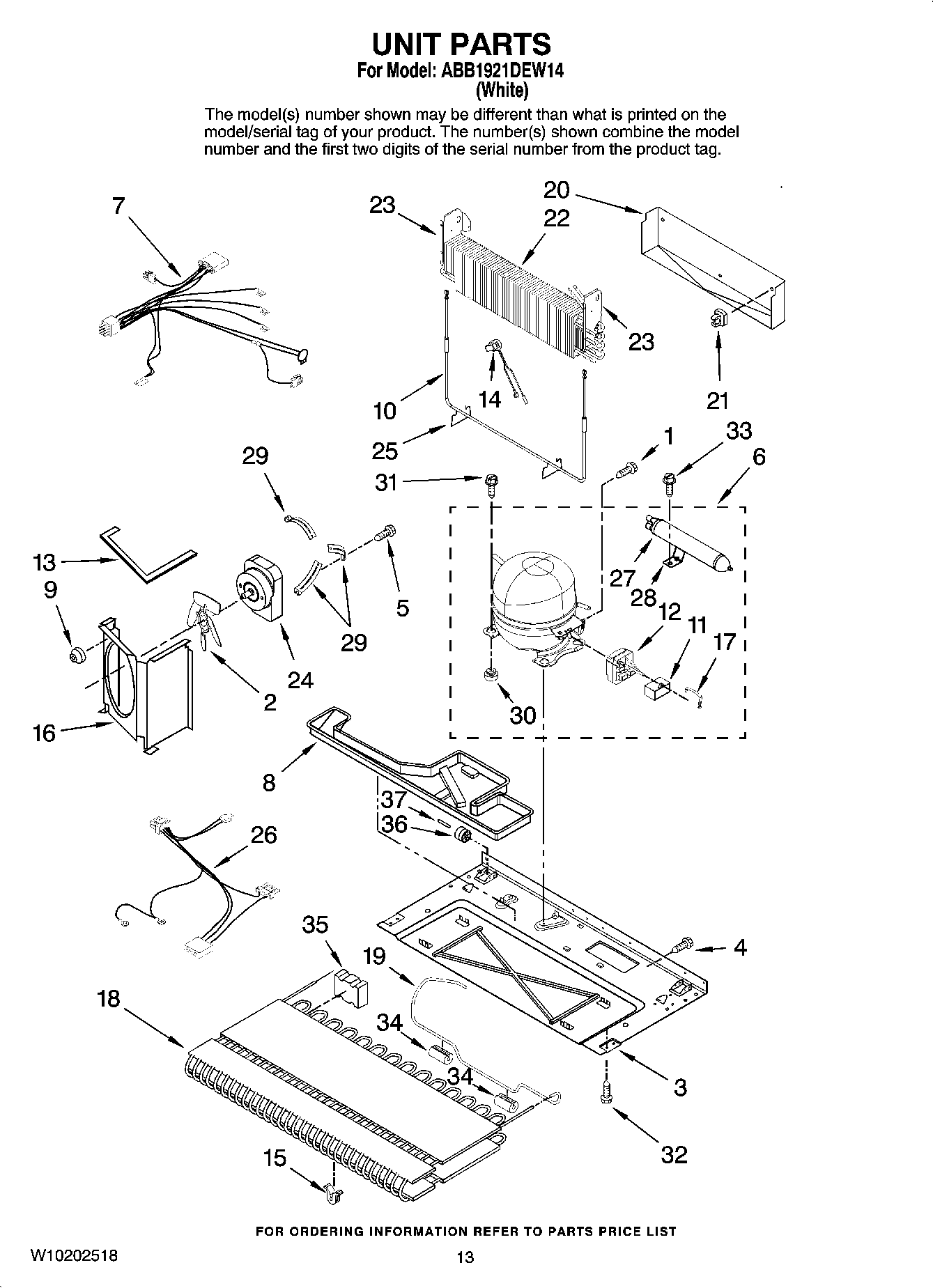

ABB1921DEW14 07 – UNIT PARTSadmin2025-04-26T08:55:19+00:00ABB1921DEW14 07 – UNIT PARTS
Products
| Position | Product |
|---|
| NI | MAY 876764 |
| NI | Valve, Access (1/2``) |
| NI | VALVE, ACCESS (3/8``) |
| NI | Valve, Access (5/16``) |
| NI | VALVE, ACCESS (1/4``) |
| NI | Valve, Access (3/4``) |
| NI | Valve, Access (5/8``) |
| 1 | MAY 67006433 |
| 2 | MAY W10162928 |
| 3 | MAY 67006914 |
| 4 | Screw (10) |
| 5 | WP67004954 Whirlpool Refrigerator Screw |
| 6 | COMPRESSOR KIT CONTAINS ITEMS 12, 17, 27, & 29) |
| 7 | MAY W10119855 |
| 8 | Drain Pan |
| 9 | GROMMET, BRACKET |
| 10 | WP67002135 Whirlpool Refrigerator Defrost Heater |
| 11 | Capacitor |
| 12 | Overload/Relay (Capacitor Incl.) |
| 13 | WP854334 Whirlpool Air Conditioner Sealing Strip |
| 14 | WP67003426 Whirlpool Refrigerator Thermostat |
| 15 | GROMMET, COND (4) |
| 16 | Shroud, Condenser |
| 17 | MAY W10131991 |
| 18 | 67006133 Whirlpool Refrigerator 30" Condenser BM |
| 19 | MAY W10174591 |
| 20 | MAY 67001133 |
| 21 | MAY 10623002 |
| 22 | Evaporator |
| 23 | MAY 67001084 |
| 23A | MAY 67001083 |
| 24 | MAY 67004432 |
| 25 | W11673433 Whirlpool Clip |
| 26 | Harness, Unit (Includes Cord) |
| 27 | Drier |
| 28 | MAY 10547003 |
| 29 | MAY 67004953 |
| 30 | MAY W10169124 |
| 31 | MAY 67006432 |
| 32 | Screw (4) |
| 33 | SCREW |
| 34 | 67005680 Whirlpool Refrigerator Condenser Grommet |
| 35 | MAY 67005491 |
| 36 | WP67005149 Whirlpool Roller |
| 37 | 67006434 Whirlpool Axle Pin |
