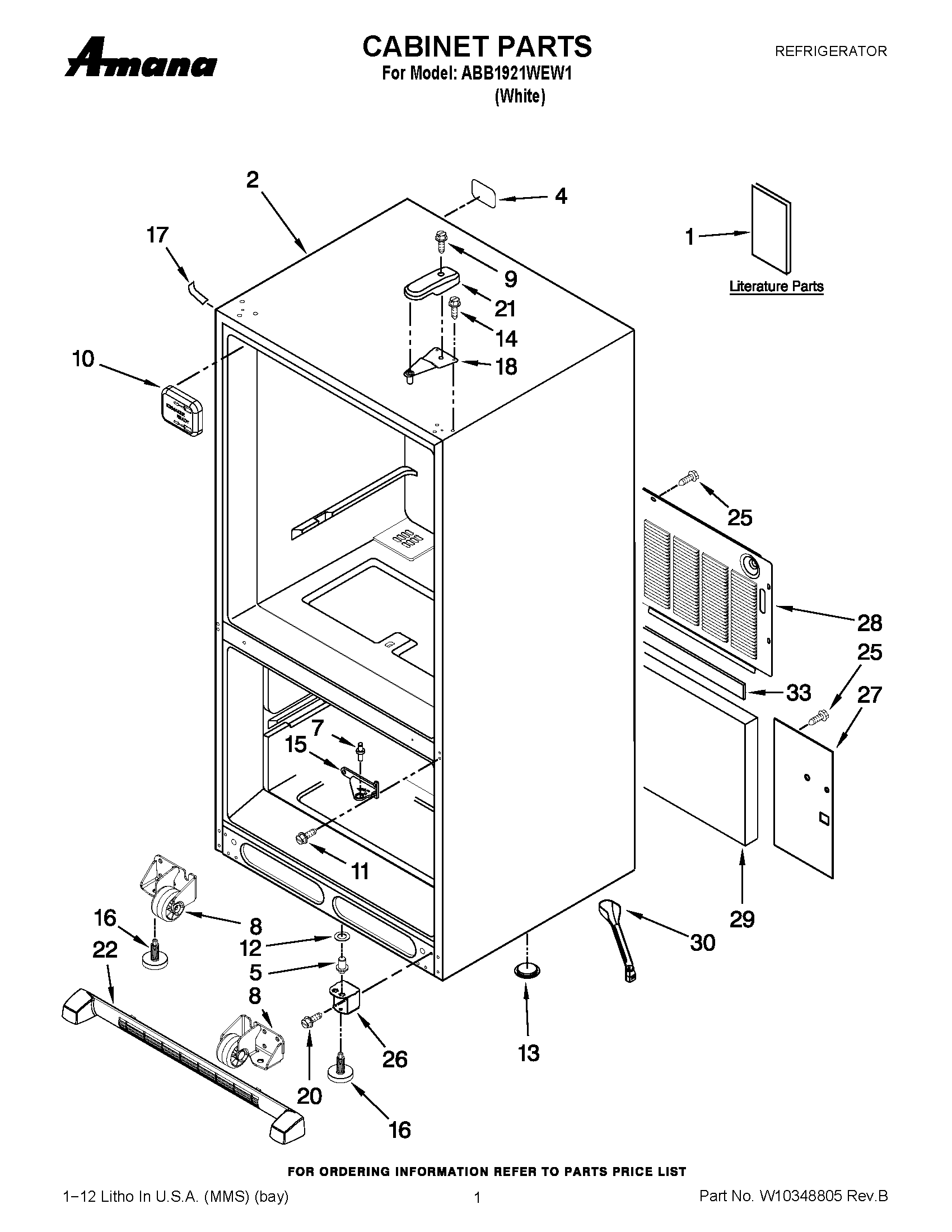

ABB1921WEW1 01 – CABINET PARTS

Products

Position	Product
1	MAY W10322959
1	MAY W10208785
1	MAY W10297561
2	LINER (NOT A SERVICEABLE PART)
4	LABEL-FILL TUBE
5	MAY 10200802
7	PIN, CENTER HINGE (REAR)
8	ROLLER ASSY. (FRONT) (LEFT)
8	ROLLER ASSY. (FRONT) (RIGHT)
9	MAY 12992602
10	COVER-FILL TUBE
11	SCREW (6)
12	MAY M0274057
13	A3076901 Whirlpool Refrigerator Plug
14	SCREW (6)
15	MAY 12607103WD
16	Brake, Foot
17	Cover, Corner (2) (White)
18	MAY 12566606ED
20	Screw (8)
21	MAY 12477601W
22	Grille Assembly (White)
25	SCREW (10)
26	MAY W10315062
27	MAY W10217701
28	MAY W10210978
29	Insulation, Sound
30	MAY W10210987
33	MAY B5759655
