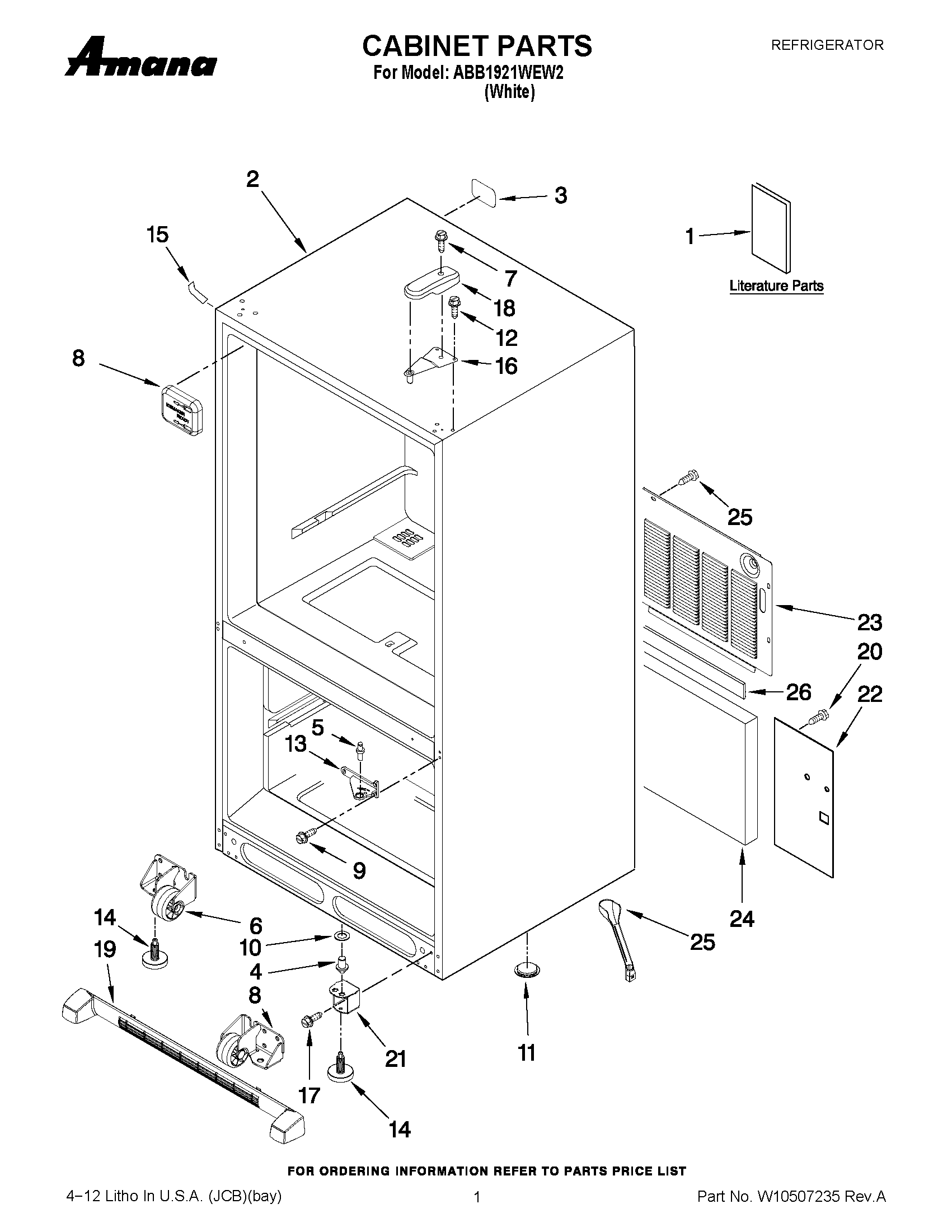

ABB1921WEW2 01 – CABINET PARTS

ABB1921WEW2 01 – CABINET PARTS

Written by

in

ABB1921WEW2 01 – CABINET PARTS

Products

PositionProduct
1MAY W10366212SP
1MAY W10297561
1MAY W10476805
2LINER (NOT A SERVICEABLE PART)
3LABEL-FILL TUBE
4MAY 10200802
5PIN, CENTER HINGE (REAR)
6ROLLER ASSY. (FRONT) (LEFT)
6ROLLER ASSY. (FRONT) (RIGHT)
7MAY 12992602
8COVER-FILL TUBE
9MAY W10339086
10MAY M0274057
11A3076901 Whirlpool Refrigerator Plug
12SCREW (6)
13MAY 12607103WD
14Brake, Foot
15Cover, Corner (2) (White)
16MAY 12566606ED
17Screw (8)
18MAY 12477601W
19Grille Assembly (White)
20SCREW (10)
21MAY W10315062
22MAY W10217701
23MAY W10210978
24Insulation, Sound
25MAY W10210987
26MAY B5759655
