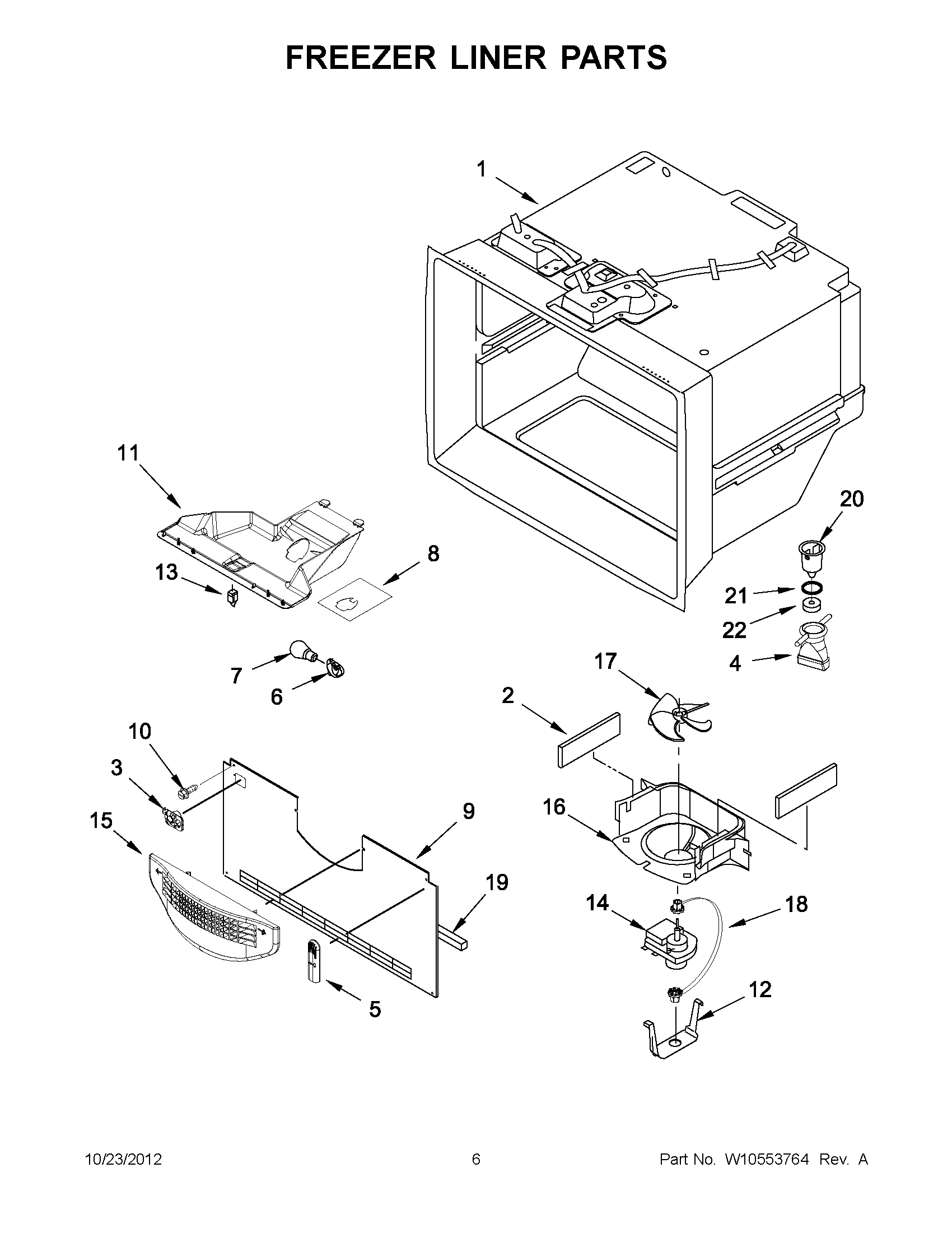

ABB1921WEW3 03 – FREEZER LINER PARTS

ABB1921WEW3 03 – FREEZER LINER PARTS

Written by

in

ABB1921WEW3 03 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2Gasket, Bottom
3MAY 12932103
4MAY W10309238
5MAY 12815301
6W11447232 Whirlpool Refrigerator Socket
7BULB, LIGHT
8FOIL-FZ LIGHT
9MAY W10308414
10MAY 12990101
11MODULE-FZ LIGHT
12CLIP, EVAP. MOTOR
13MAY 12466105
14Gasket, Bottom
15Grille, Fz Air
16SHROUD, EVAP.FAN
17Blade, Fan (Evaporator)
18MAY W10121318
19MAY W10128551
20MAY D7753903
21MAY M0500703
22Gasket
