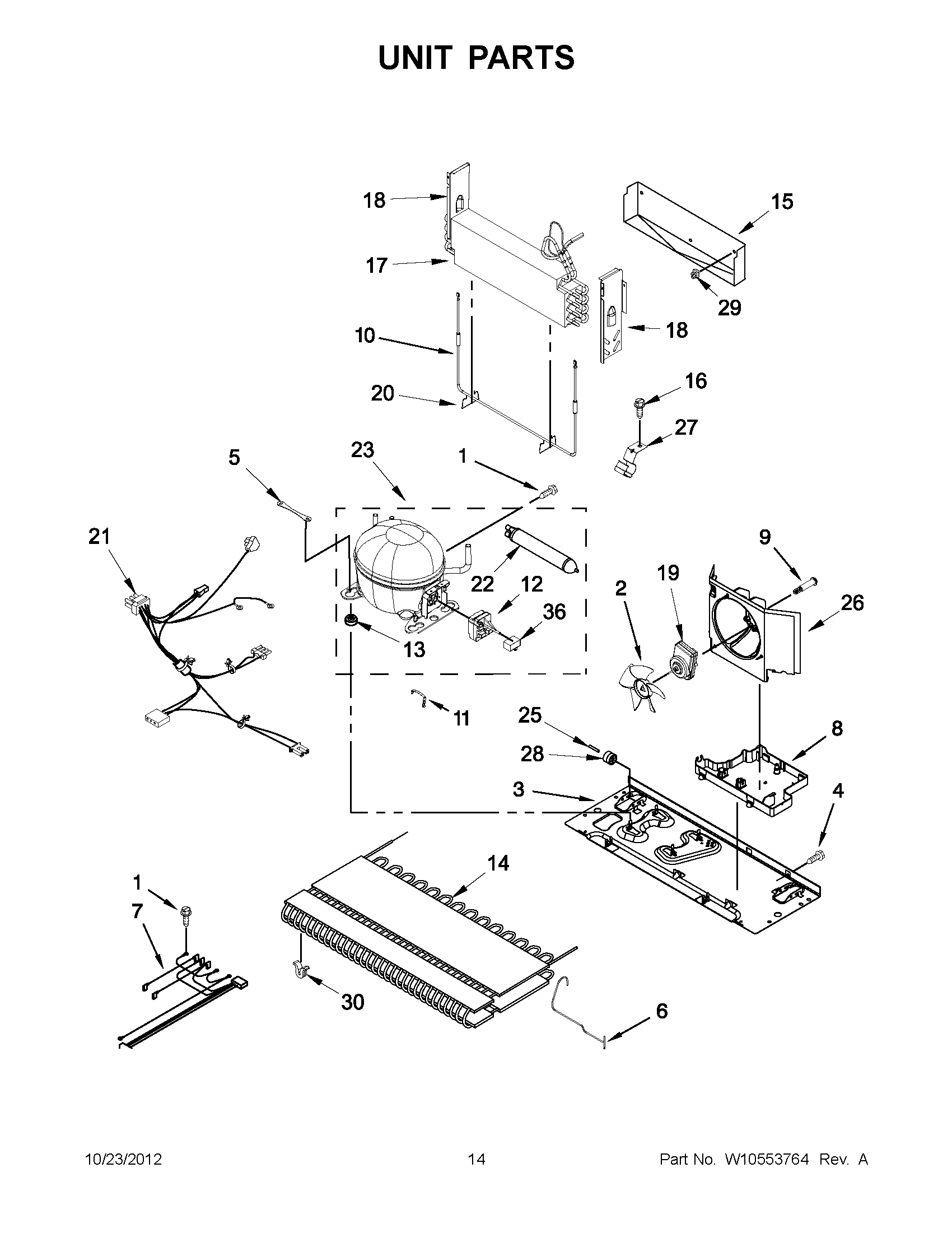

ABB1921WEW3 07 – UNIT PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (5/8“)
NI	Valve, Access (1/2“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
NI	MAY 876764
NI	Valve, Access (3/4“)
1	MAY 12992301
2	MAY 12825803
3	MAY W10480107
4	SCREW (10)
5	MAY W10236396
6	MAY W10294014
7	HARNESS, EVAPORATOR (INCLUDES HEATER)
8	MAY W10296784
9	MAY W10216919
10	HEATER, EVAPORATOR
11	MAY W10174384
12	START PROTECT, COMBO (START DEVICE, COMBINATION (START RELAY AND OVERLOAD) FOR SERVICE COMPRESSOR ONLY)
13	Grommet (4)
14	MAY W10346423
15	MAY W10292801
16	MAY 12990701
17	MAY W10317012
18	DAM (LEFT SIDE)
18	Dam (Right Side)
19	MAY W10239053
20	W11673433 Whirlpool Clip
21	HARNESS, UNIT (INCLUDES POWER CORD)
22	Drier
23	MAY W10164016
24	MAY W10350564
25	Axle, Roller (2)
26	SHROUD
27	MAY W10281329
28	Roller (2)
29	MAY 10623002
30	GROMMET, COND (4)
