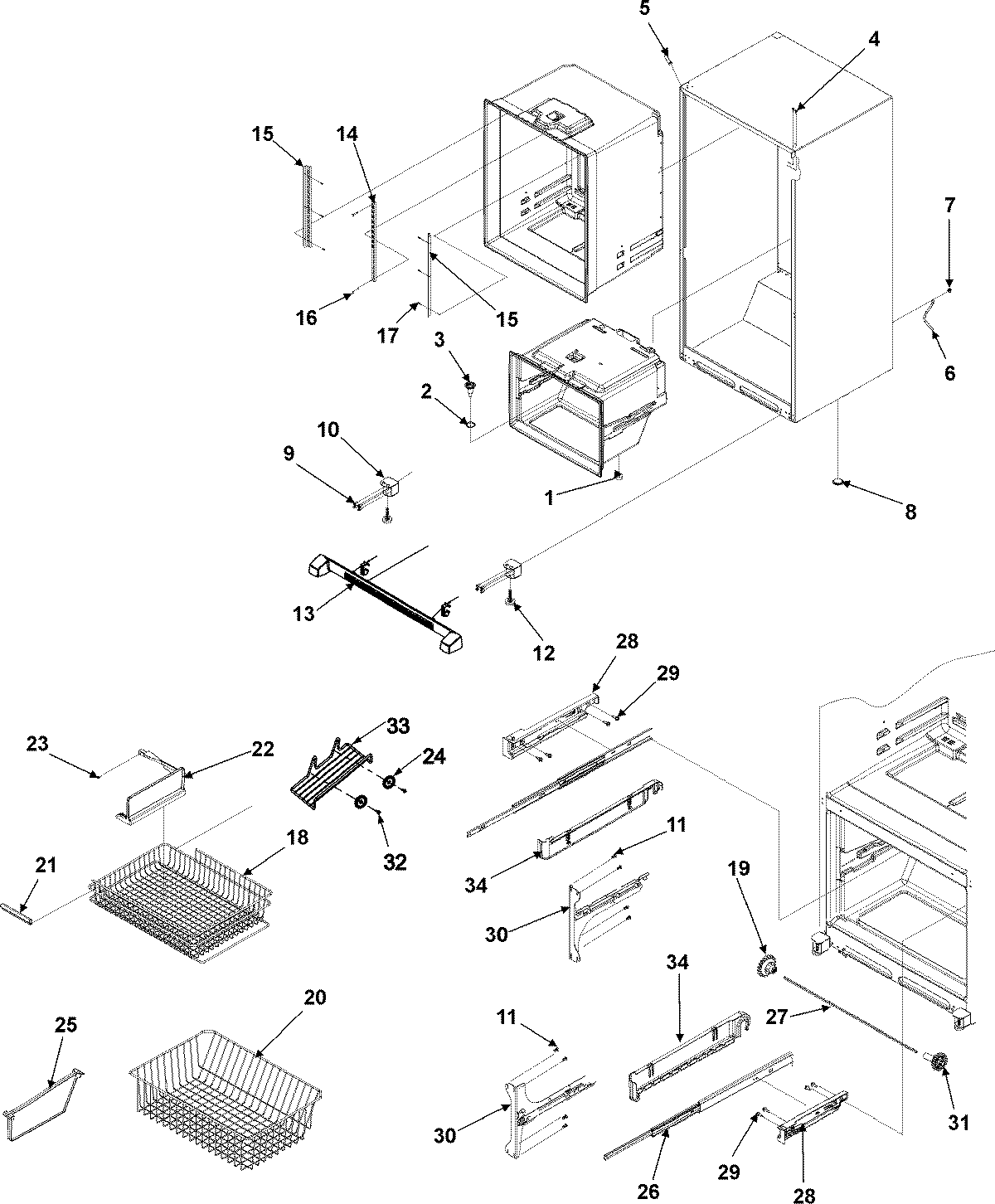

ABB1922FEB 06 – INTERIOR CABINET & FREEZER SHELVING

ABB1922FEB 06 – INTERIOR CABINET & FREEZER SHELVING

Written by

in

ABB1922FEB 06 – INTERIOR CABINET & FREEZER SHELVING

Products

PositionProduct
1Gasket
2MAY M0500703
3MAY D7753903
4MAY A4539607
567003485 Whirlpool Refrigerator Corner Cover (Black)
6MAY 67001066
767001067 Whirlpool Refrigerator Drain Tube Clip
8A3076901 Whirlpool Refrigerator Plug
9MAY 67006491
11Screw (8)
12W11177593 Whirlpool Leveling Feet
13WPW10534167 Whirlpool Refrigerator Front Grille
1467001073 Whirlpool Refrigerator Center Ladder
15MAY 67001302
16W10709795 Whirlpool Refrigerator Screw
17MAY 67006400
18MAY 67004985
19GEAR (LT)
20W10503182 Whirlpool Refrigerator Freezer Basket
21HANDLE, BASKET/SHELF
22Divider, Upper Basket
23MAY 67006608
24WP10972101 Whirlpool Refrigerator Spacer
25Divider, Lower Basket
26W11658402 Whirlpool Drawer Slide Rail
27W10802329 Whirlpool Refrigerator Shaft
28ADAPTER, SIDE (LT)
28AADAPTER, SIDE (RT)
29Screw (6)
30BRACKET, DRAWER SLIDE (LT)
31GEAR (RT)
32WP67006908 Whirlpool Refrigerator Screw
33Rack, Ice
34WPW10280613 Whirlpool Refrigerator Bracket
34WPW10280608 Whirlpool Refrigerator Bracket
