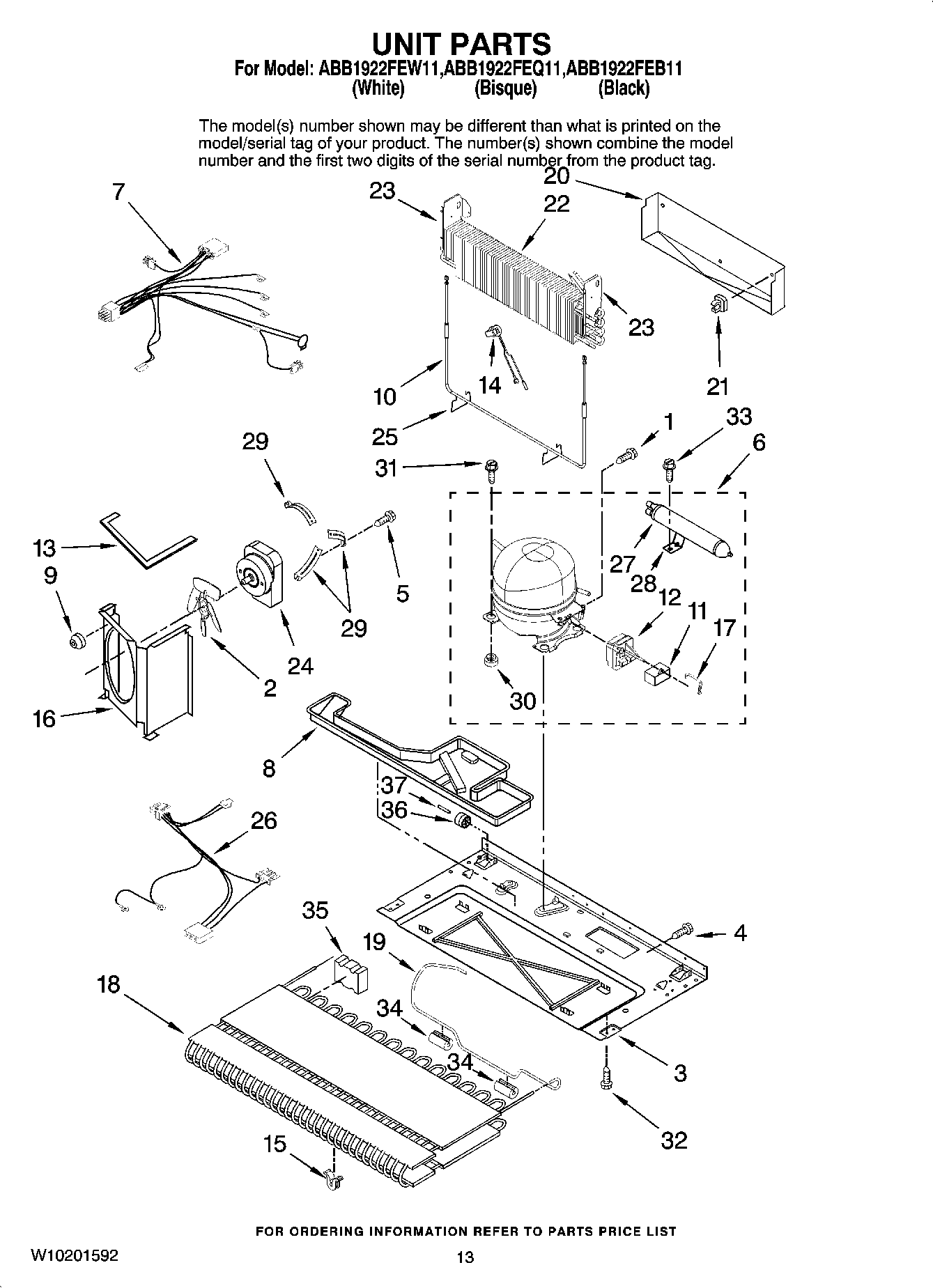

ABB1922FEB11 07 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	Valve, Access (1/2“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
1	MAY 67006433
2	MAY W10162928
3	MAY 67006914
4	Screw (10)
5	WP67004954 Whirlpool Refrigerator Screw
6	COMPRESSOR KIT CONTAINS ITEMS 12, 17, 27, & 29)
7	MAY W10119856
8	Drain Pan
9	GROMMET, BRACKET
10	WP67002135 Whirlpool Refrigerator Defrost Heater
11	Capacitor
12	Overload/Relay (Capacitor Incl.)
13	WP854334 Whirlpool Air Conditioner Sealing Strip
14	Thermostat
15	GROMMET, COND (4)
16	Shroud, Condenser
17	MAY W10131991
18	67006133 Whirlpool Refrigerator 30" Condenser BM
19	MAY W10174591
20	MAY 67001133
21	MAY 10623002
22	Evaporator
23	MAY 67001084
23A	MAY 67001083
24	MAY 67004432
25	W11673433 Whirlpool Clip
26	Harness, Unit (Includes Cord)
27	Drier
28	MAY 10547003
29	MAY 67004953
30	MAY W10169124
31	MAY 67006432
32	Screw (4)
33	SCREW
34	67005680 Whirlpool Refrigerator Condenser Grommet
35	MAY 67005491
36	WP67005149 Whirlpool Roller
37	67006434 Whirlpool Axle Pin
