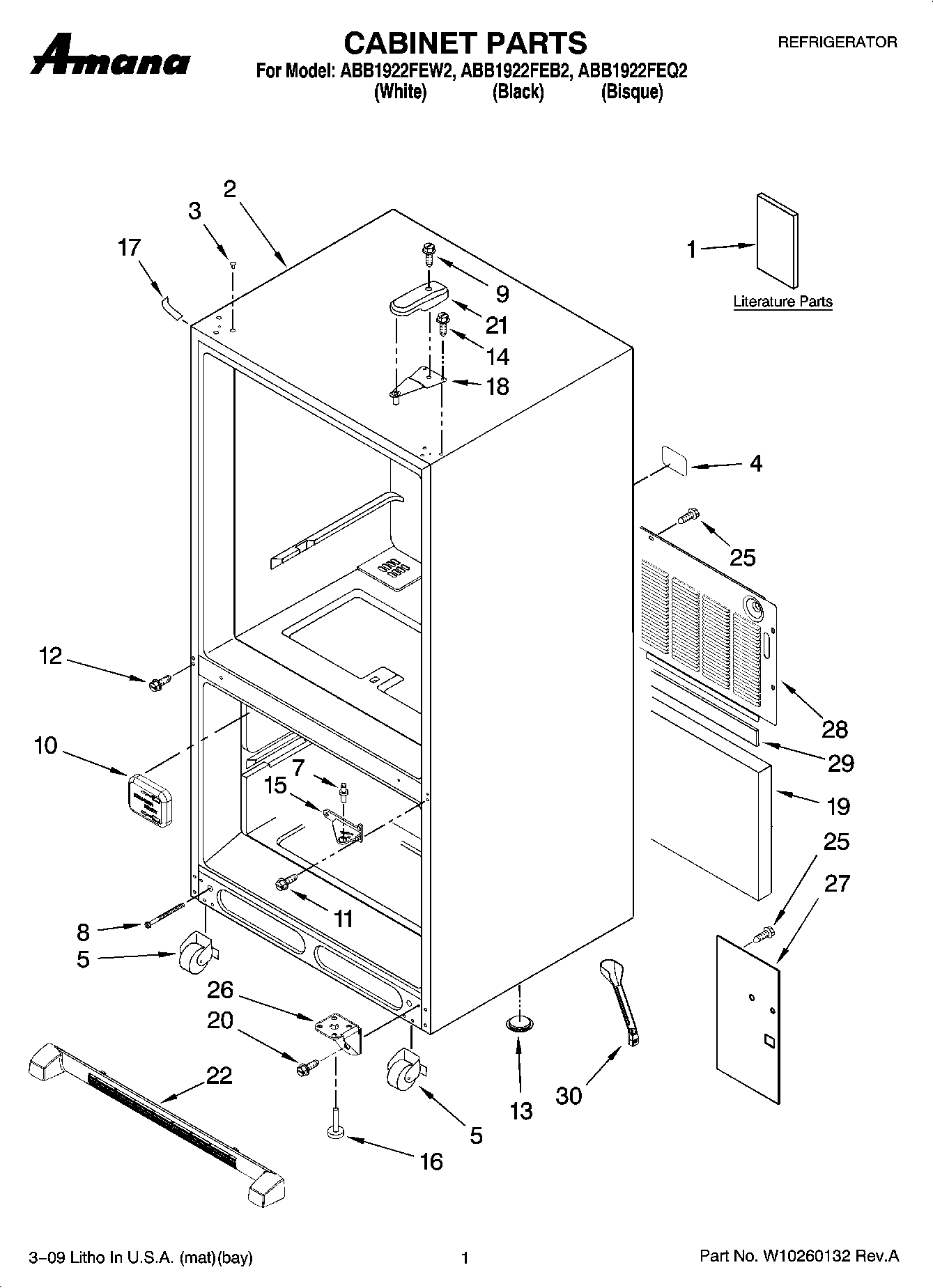

ABB1922FEB2 01 – CABINET PARTS

ABB1922FEB2 01 – CABINET PARTS

Written by

in

ABB1922FEB2 01 – CABINET PARTS

Products

PositionProduct
1MAY W10175445
1MAY W10238840
1MAY W10183296
3WP67001130 Whirlpool Refrigerator White Button Plug
3WP12246608 Whirlpool Refrigerator Button
4MAY 67005064
5ROLLER ASSY.(REAR)
7WP67006642 Whirlpool Refrigerator Pin
871003131 Whirlpool Oven Screw
9WP8281196 Whirlpool Screw
10WP67001098 Whirlpool Refrigerator Tube Cover
11WP67006380 Whirlpool Screw
12Screw (8)
13A3076901 Whirlpool Refrigerator Plug
14WP489349 Whirlpool Refrigerator Screw
15WP12607104ED Whirlpool Refrigerator Door Hinge
15WP12607103WD Whirlpool Refrigerator Center Hinge
16W11177593 Whirlpool Leveling Feet
1767003484 Whirlpool Refrigerator White Corner Cover
1767003485 Whirlpool Refrigerator Corner Cover (Black)
17MAY 67003486
18MAY 12566606ED
19Insulation, Sound
20MAY 67006564
2167001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
21MAY 67001013
2167001014 Whirlpool Refrigerator Top Hinge Cover White
22Grille Assembly (White)
22MAY W10266651
22Grille Assembly (Black)
25Screw (10)
26Bracket, Foot
27MAY W10217701
28MAY W10210978
29MAY B5759655
30MAY W10210987
