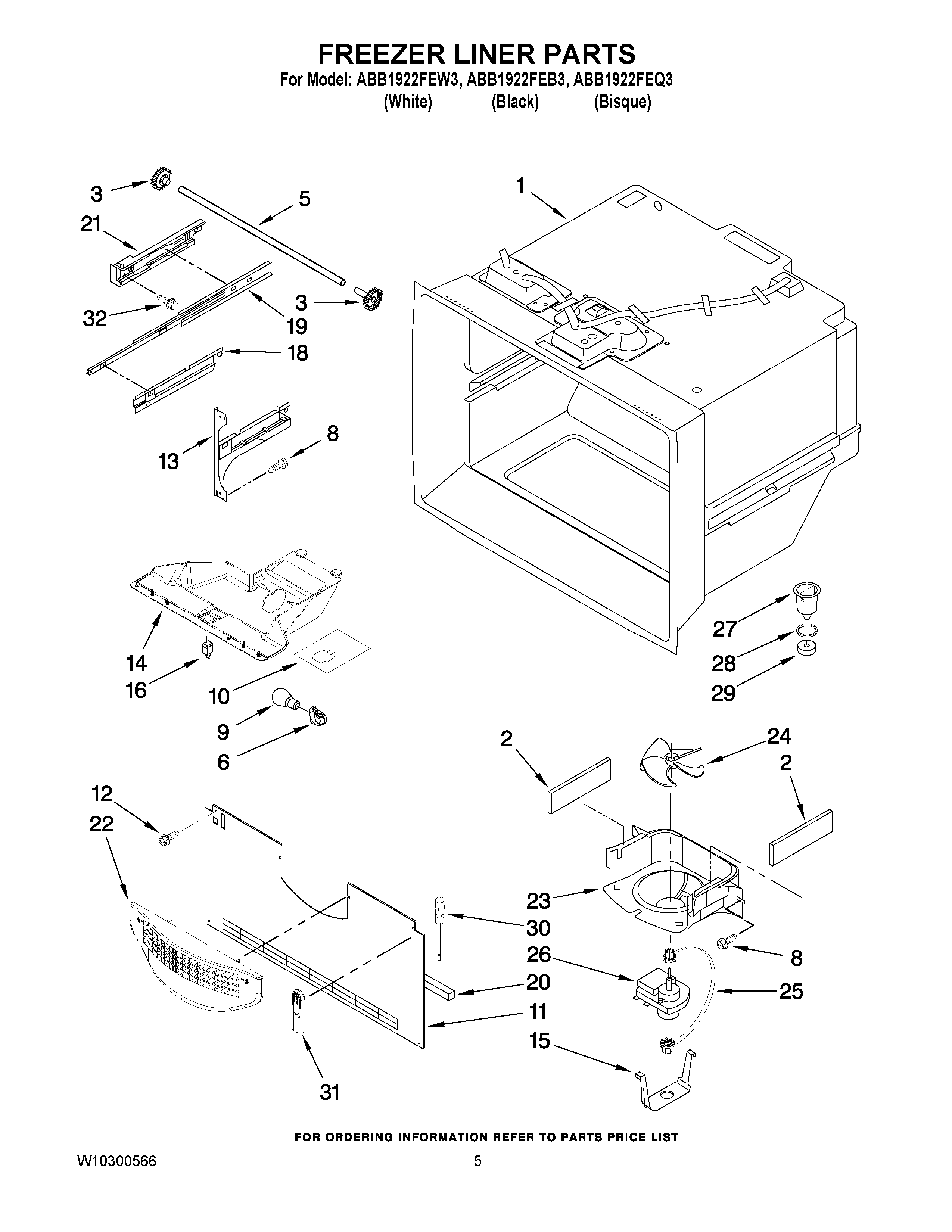

ABB1922FEB3 03 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	Gasket, Bottom
3	12002497 Whirlpool Refrigerator Drawer Gear Kit
5	SHAFT-RACK
6	W11447232 Whirlpool Refrigerator Socket
8	Screw (8)
9	Bulb, Light (2)
10	FOIL-FZ LIGHT
11	MAY 12226110
12	SCREW (10)
13	BRACKET, DOOR (LEFT)
13	BRACKET, DOOR (RIGHT)
14	MODULE-FZ LIGHT
15	CLIP, EVAP. MOTOR
16	MAY 12466105
18	CRADLE-BASKET (RIGHT)
18	CRADLE-BASKET (LEFT)
19	MAY W10120018
20	Gasket, Bottom
21	MAY W10128118
21	MAY W10128119
22	MAY W10175909
23	SHROUD, EVAP.FAN
24	Blade, Fan (Evaporator)
25	MAY W10121318
26	MAY W10128551
27	MAY D7753903
28	MAY M0500703
29	Gasket
30	12002355 Whirlpool Refrigerator Thermistor Kit
31	MAY 12815301
32	Screw (6)
