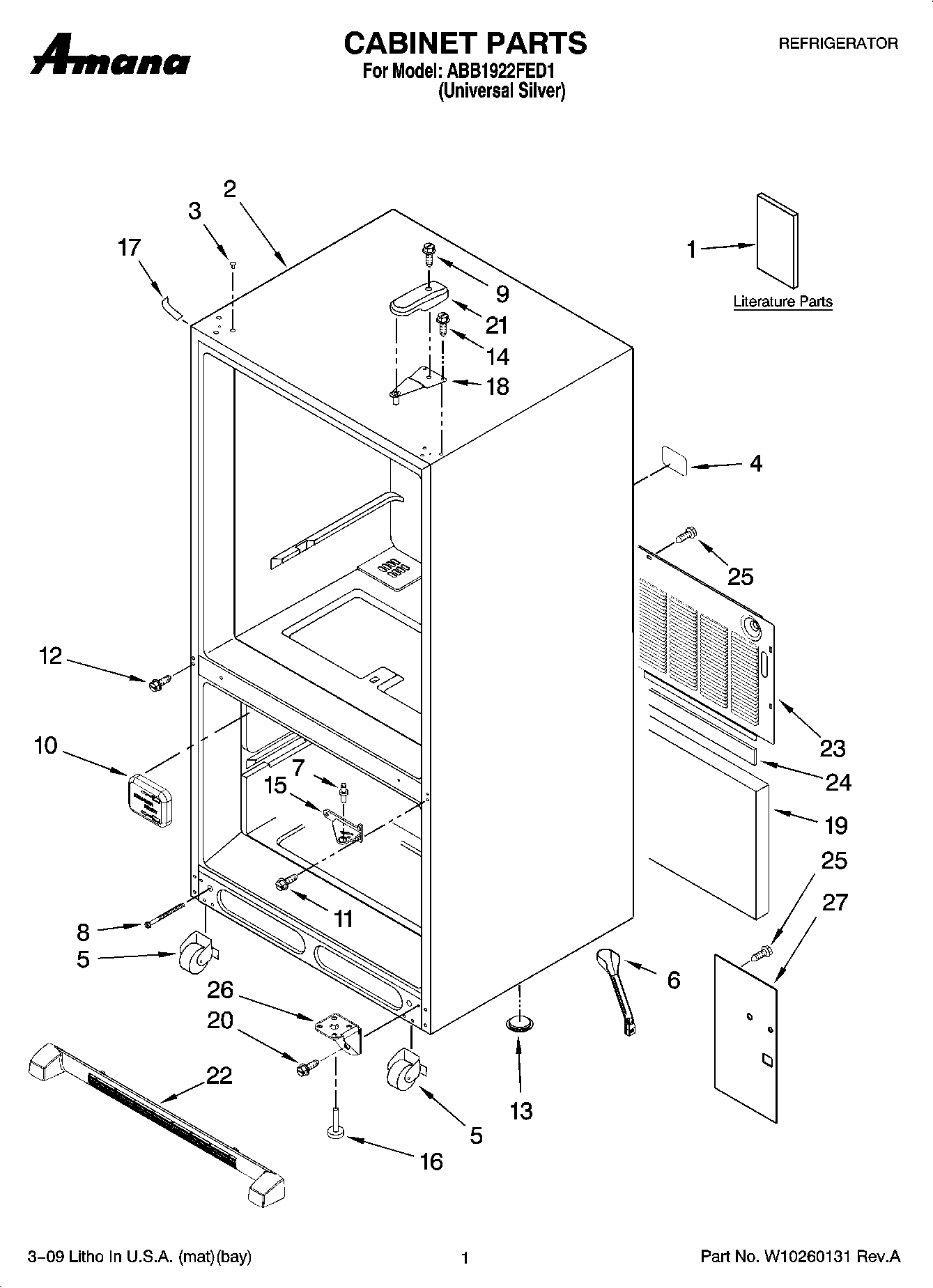

ABB1922FED1 01 – CABINET PARTS

Products

Position	Product
1	MAY W10175445
1	MAY W10183296
1	MAY W10238840
3	MAY M0310731
4	LABEL-FILL TUBE
5	ROLLER ASSY.(REAR)
6	MAY W10210987
7	MAY 10351006
8	Bolt, Adjusting (Rear)
9	MAY 12992602
10	COVER-FILL TUBE
11	SCREW (6)
12	Screw (8)
13	A3076901 Whirlpool Refrigerator Plug
14	SCREW (6)
15	MAY 12607104ED
16	Foot Brake (2)
17	COVER, CORNER (BLACK)
18	MAY 12566606ED
19	Insulation, Sound
20	Screw (8)
21	COVER, HINGE(BLACK)
22	Grille Assembly (Black)
23	MAY W10210978
24	Gasket
25	SCREW (10)
26	Bracket, Foot
27	MAY W10217701
