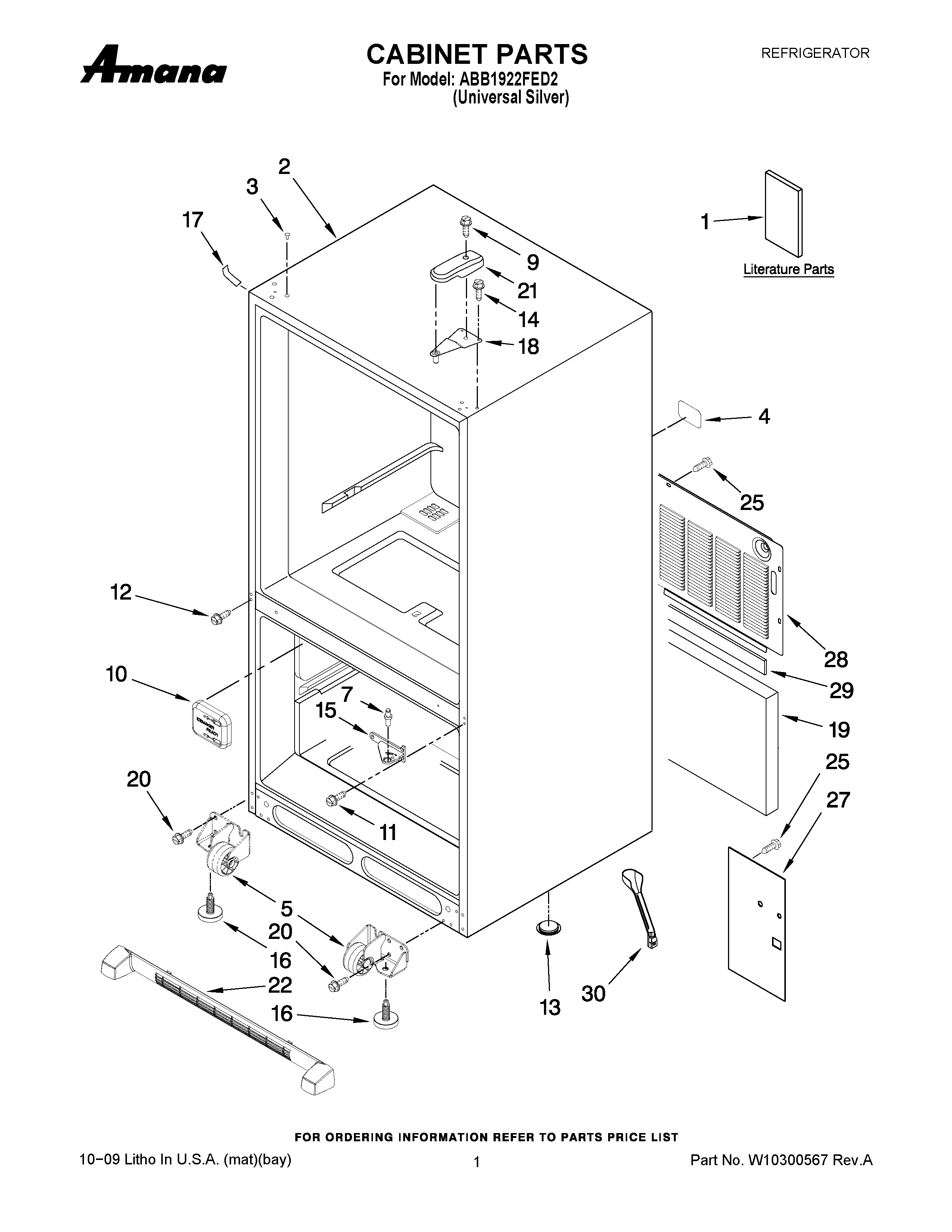

ABB1922FED2 01 – CABINET PARTS

Products

PositionProduct
1MAY W10279329
1MAY W10183296
1MAY W10175445
2LINER (NOT A SERVICEABLE PART)
3WHITE
4LABEL-FILL TUBE
5ROLLER ASSY. (FRONT) (RIGHT)
5ROLLER ASSY. (FRONT) (LEFT)
7MAY 10351006
9MAY 12992602
10COVER-FILL TUBE
11SCREW (6)
12Screw (8)
13A3076901 Whirlpool Refrigerator Plug
14SCREW (6)
15MAY 12607104ED
16Brake, Foot
17COVER, CORNER (BLACK)
18MAY 12566606ED
19Insulation, Sound
20Screw (8)
21COVER, HINGE(BLACK)
22Grille Assembly (Black)
25SCREW (10)
27MAY W10217701
28MAY W10210978
29MAY B5759655
30MAY W10210987
