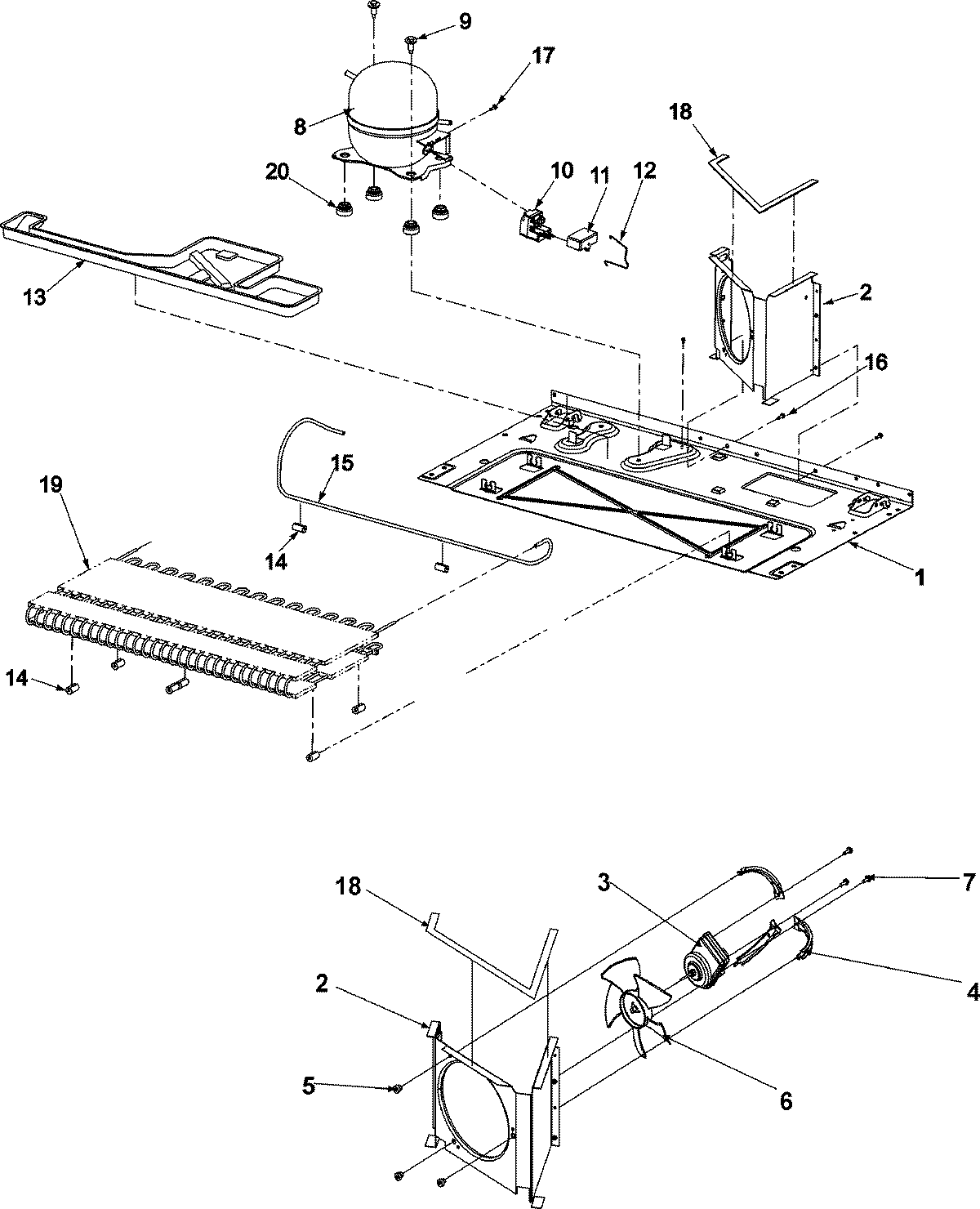

ABB1922FEQ 02 – COMPRESSOR

ABB1922FEQ 02 – COMPRESSOR

Written by

in

ABB1922FEQ 02 – COMPRESSOR

Products

PositionProduct
1MAY 67006914
2SHROUD, CONDENSER FAN
3MAY 67004432
4MAY 67004953
5GROMMET, BRACKET
6W10156818 Whirlpool Refrigerator Fan Blade
7WP67004954 Whirlpool Refrigerator Screw
8W10160407 Whirlpool Refrigerator Compressor
9MAY 67006432
10OVERLOAD/RELAY W/CAPACITOR
11Capacitor
12MAY 12576801
13Drain Pan
1467005680 Whirlpool Refrigerator Condenser Grommet
15MAY 67004203
16Screw (10)
17MAY 67006433
18WP854334 Whirlpool Air Conditioner Sealing Strip
1967006133 Whirlpool Refrigerator 30" Condenser BM
2067003493 Whirlpool Refrigerator Compressor Grommet
