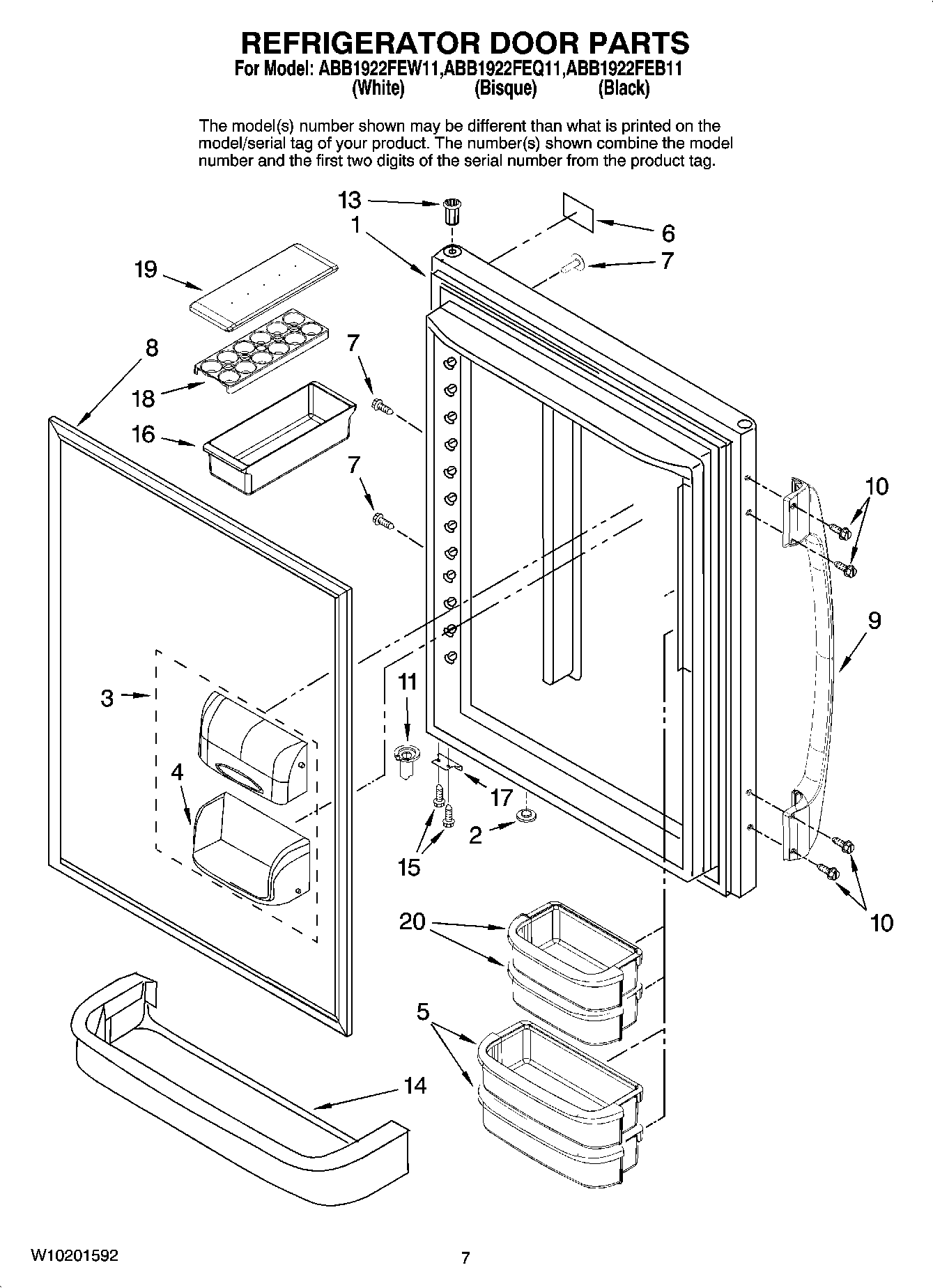

ABB1922FEW11 04 – REFRIGERATOR DOOR PARTS

ABB1922FEW11 04 – REFRIGERATOR DOOR PARTS

Written by

in

ABB1922FEW11 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (w/ Insulation) (White)
1MAY 67004037
1Refrigerator Door (w/ Insulation) (Black)
210712401 Whirlpool Refrigerator Vent Plug (White)
267004838 Whirlpool Refrigerator Button Vent Plug
3WP12744905 Whirlpool Refrigerator Compressor Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5WP67001021 Whirlpool Refrigerator Bucket
6STAINLESS
7MAY 12991103
7MAY 12991104
7SCREW (BLK)
8Gasket, Door Magnetic (Black)
8Gasket, Door Magnetic (White)
9MAY 67006721
9MAY 67006804
9HANDLE, SIDE MOUNT (BLK)
11WP67003639 Whirlpool Refrigerator Closer
11WP67003638 Whirlpool Closing Cam
13WP67004977 Whirlpool Refrigerator Door Hinge Bushing
1367004978 Whirlpool Refrigerator Black Door Bushing
1467001139 Whirlpool Refrigerator Shelf Trim
15WP98165 Whirlpool Screw
16MAY 10423131
17W11708403 Whirlpool Door Stop
1767003781 Whirlpool Refrigerator Door Stop (BSQ)
1712968202W Whirlpool Refrigerator Door Stop
18MAY 10436506
19MAY 10436404
2067001141 Whirlpool Refrigerator Small Bucket Door
