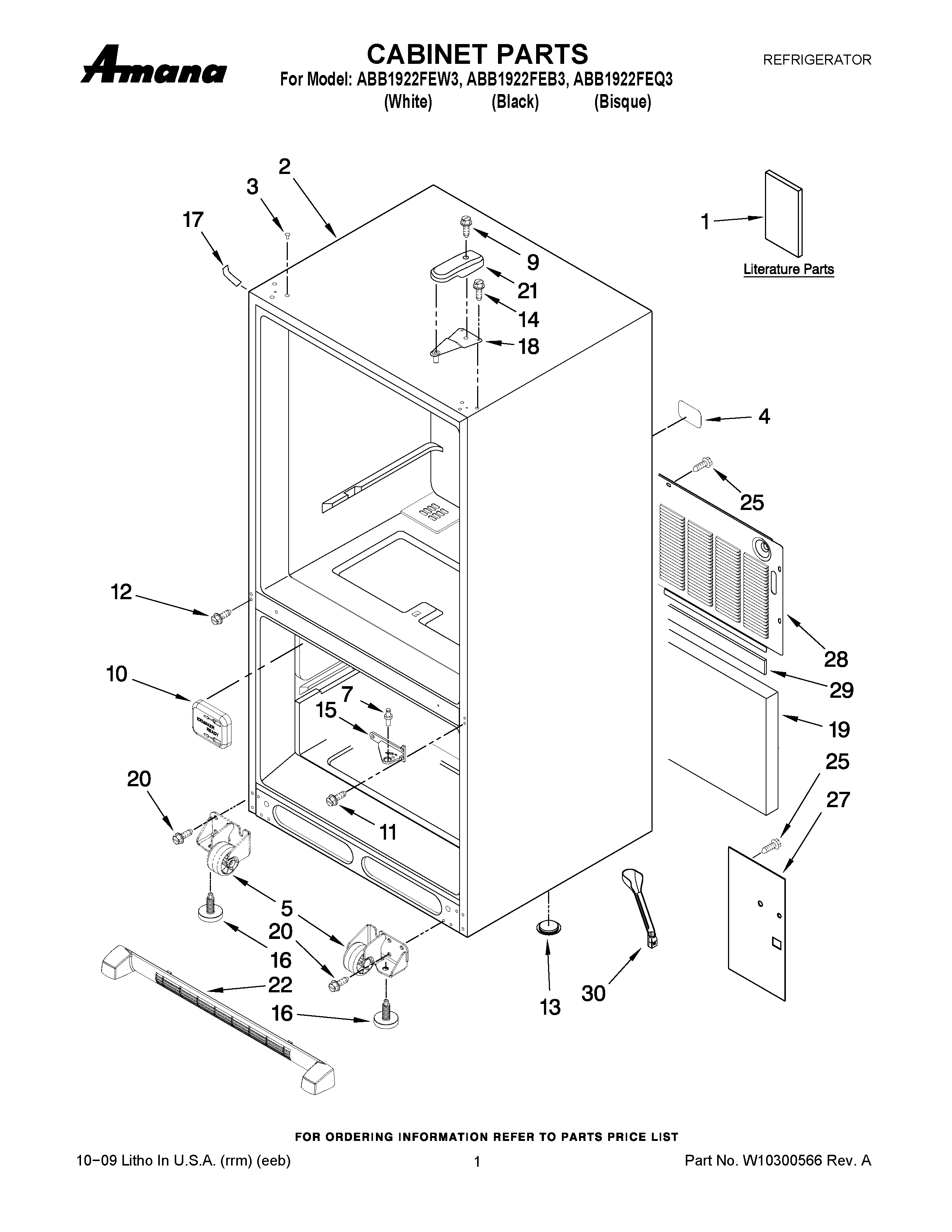

ABB1922FEW3 01 – CABINET PARTS

Products

Position	Product
1	MAY W10279329
1	MAY W10175445
1	MAY W10183296
2	LINER (NOT A SERVICEABLE PART)
3	MAY M0310731
3	MAY M0310729
3	MAY M0310738
4	LABEL-FILL TUBE
5	ROLLER ASSY. (FRONT) (RIGHT)
5	ROLLER ASSY. (FRONT) (LEFT)
7	MAY 10351006
9	MAY 12992602
10	COVER-FILL TUBE
11	SCREW (6)
12	Screw (8)
13	A3076901 Whirlpool Refrigerator Plug
14	SCREW (6)
15	MAY 12607104ED
15	MAY 12607103WD
16	Foot Brake (2)
17	Cover, Corner (2) (White)
17	Cover, Corner (Bisque)
17	COVER, CORNER (BLACK)
18	MAY 12566606ED
19	Insulation, Sound
20	Screw (8)
21	MAY 12477601C
21	MAY 12477601W
21	COVER, HINGE(BLACK)
22	MAY W10236651
22	Grille Assembly (White)
22	Grille Assembly (Black)
25	SCREW (10)
27	MAY W10217701
28	MAY W10210978
29	MAY B5759655
30	MAY W10210987
