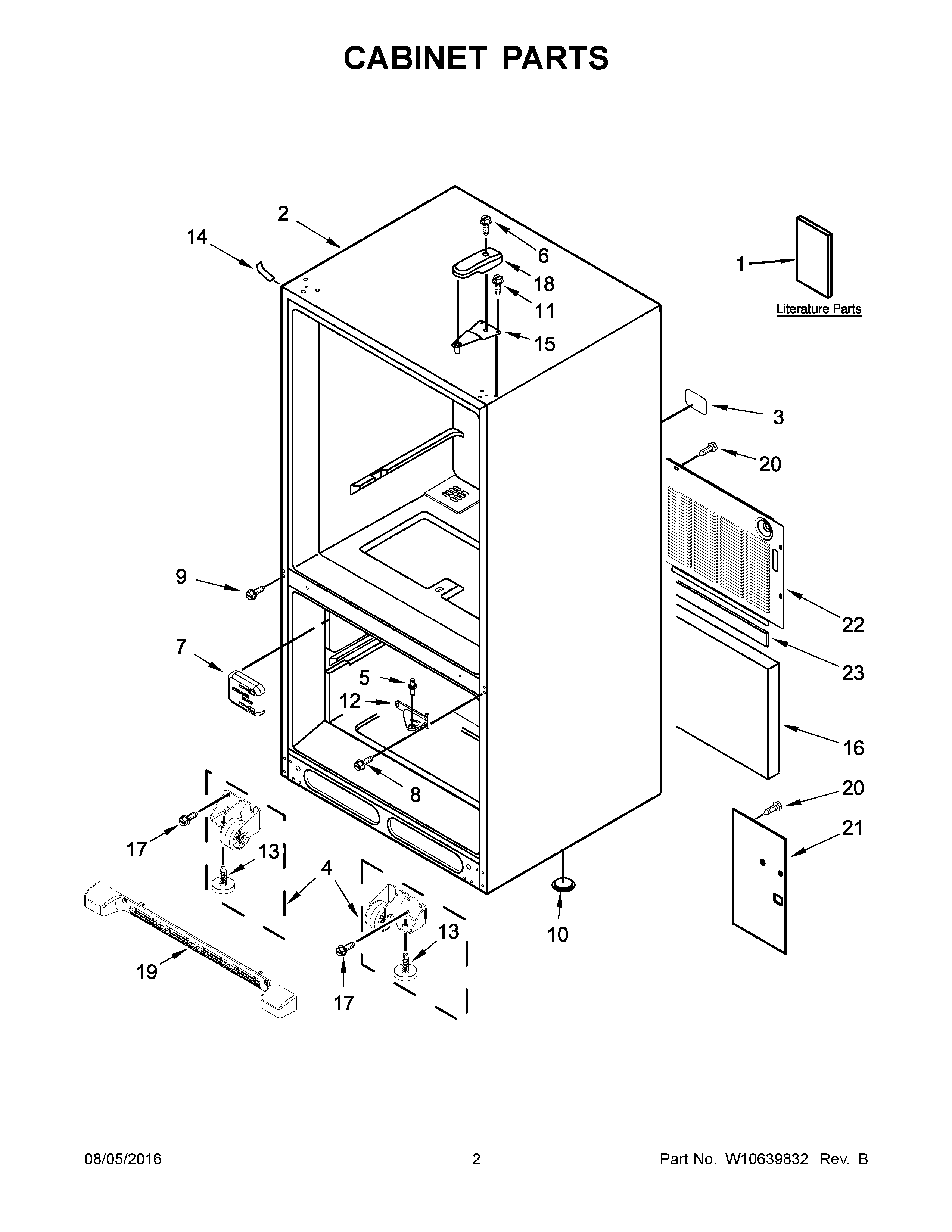

ABB1924BRB00 02 – CABINET PARTS

Products

Position	Product
1B	MAY W10517966
1	MAY W10366212SP
1A	MAY W10679759
2	LINER (NOT A SERVICEABLE PART)
3	LABEL-FILL TUBE
4A	ROLLER ASSEMBLY (RIGHT HAND)
4	ROLLER ASSEMBLY (LEFT HAND)
5	MAY 10351006
6	MAY 12992602
7	COVER-FILL TUBE
8	MAY W10673840
9	Screw (8)
10	A3076901 Whirlpool Refrigerator Plug
11	SCREW (6)
12	MAY 12607103WD
12A	MAY 12607104ED
12B	MAY 12607103AP
13	Brake, Foot
14B	COVER, CORNER (GREY)
14	Cover, Corner (2) (White)
14A	COVER, CORNER (BLACK)
15	MAY 12566606ED
16	Insulation, Sound
17	MAY W10709365
18A	COVER, HINGE(BLACK)
18	MAY 12477601W
18B	MAY 12477601AP
19B	ASSEMBLY, GRILLE (GREY)
19A	ASSEMBLY, GRILLE (BLACK)
19	ASSEMBLY, GRILLE (WHITE)
20	SCREW (10)
21	MAY W10217701
22	MAY W10210978
23	MAY B5759655
