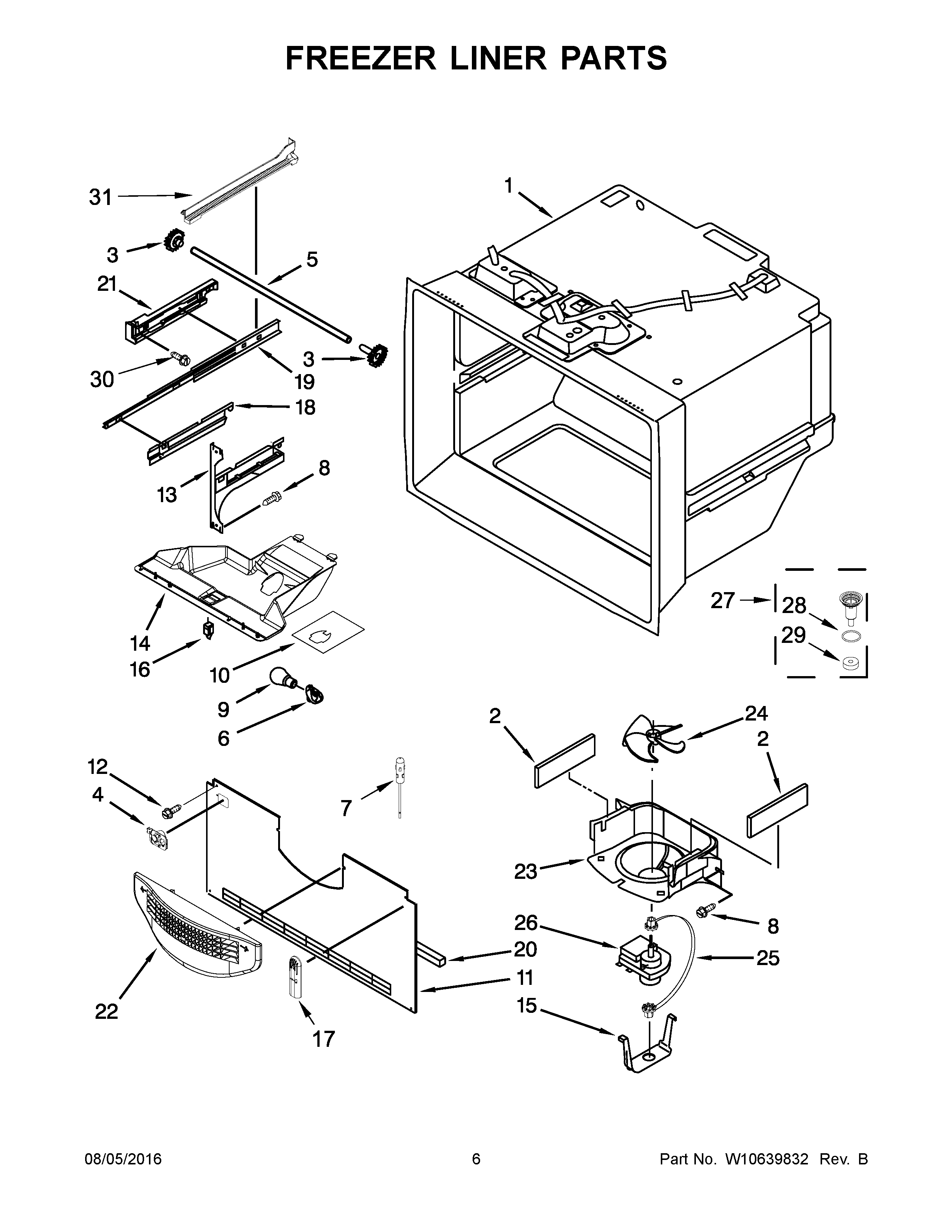

ABB1924BRM00 04 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	Gasket, Bottom
3	12002497 Whirlpool Refrigerator Drawer Gear Kit
4	MAY 12932103
5	MAY W10802329
6	W11447232 Whirlpool Refrigerator Socket
7	MAY 12791409SP
8	Screw (8)
9	BULB, LIGHT
10	FOIL-FZ LIGHT
11	MAY W10308414
12	SCREW (10)
13	MAY W10330991
13A	MAY W10330993
14	MODULE-FZ LIGHT
15	CLIP, EVAP. MOTOR
16	MAY 12466105
17	MAY 12815301
18A	CRADLE-BASKET (RIGHT HAND)
18	CRADLE-BASKET (LEFT HAND)
19	MAY W10120018
20	MAY A3189394
21	ADAPTER, SLIDE (LEFT HAND)
21A	ADAPTER, SLIDE (RIGHT HAND)
22	Grille, Fz Air
23	SHROUD, EVAP.FAN
24	Blade, Fan (Evaporator)
25	MAY W10121318
26	MAY W10128551
27	MAY W10662407
28	MAY M0500703
29	Gasket
30	Screw (6)
31A	MAY W10516602
31	MAY W10516603
