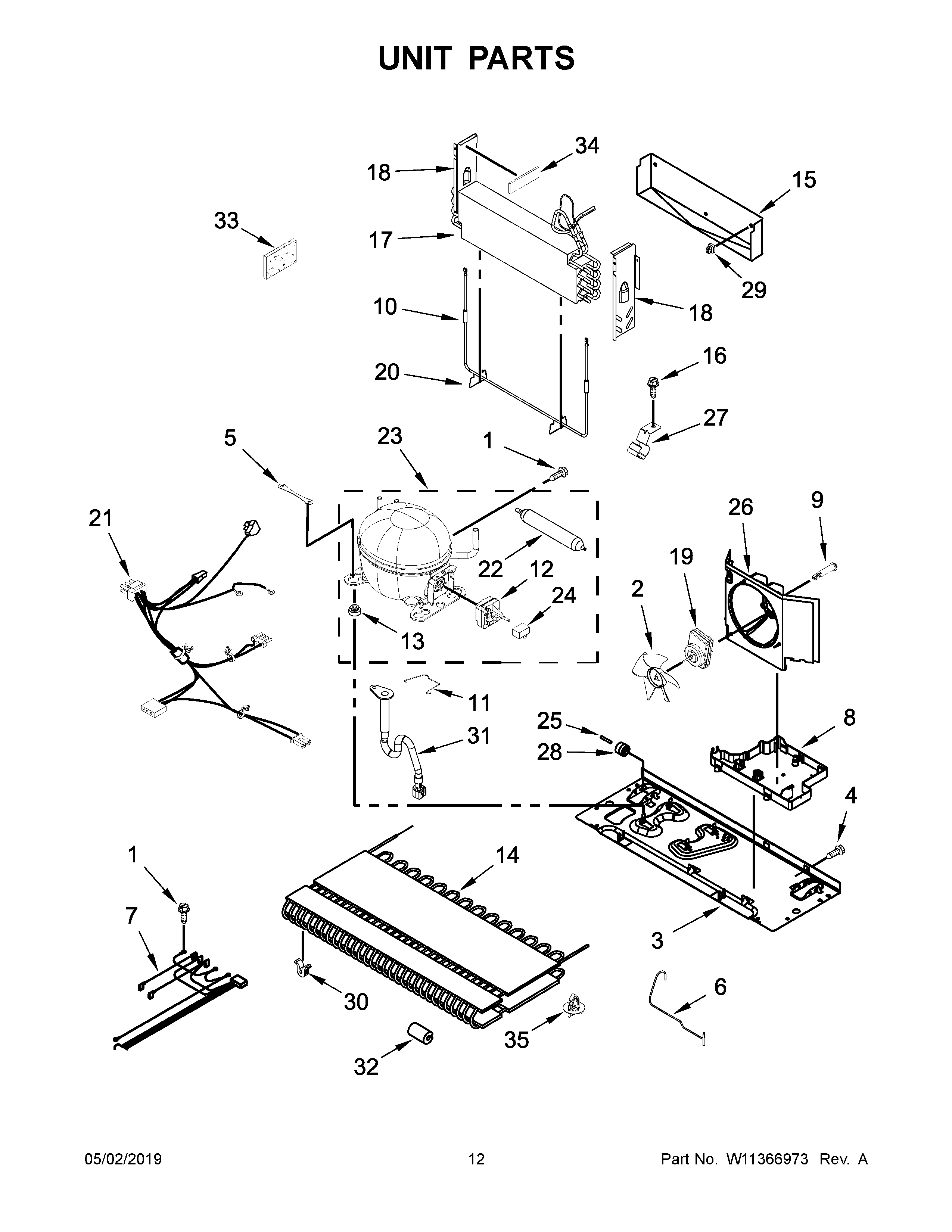

ABB1924BRM01 07 – UNIT PARTS

Products

Position	Product
NI	Valve, Access (5/16“)
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
NI	VALVE, ACCESS (3/8“)
NI	LINER (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/4“)
NI	MAY 876764
1	MAY 12992301
2	MAY 12825803
3	MAY W10480107
4	SCREW (10)
5	MAY W10236396
6	MAY W10294014
7	HARNESS, EVAPORATOR (INCLUDES HEATER)
8	MAY W10655367
9	MAY W10622701
10	HEATER, EVAPORATOR
11	MAY W10216075
12	MAY W10796752
13	GROMMET
14	MAY W10346423
15	MAY W10292801
16	MAY 12992101
17	MAY W10317012
18	DAM (LEFT SIDE)
18A	Dam (Right Side)
19	MOTOR, CONDENSER FAN
20	W11673433 Whirlpool Clip
21	MAY W11218258
22	Drier
23	MAY W10743447
24	MAY W10350564
25	Axle, Roller (2)
26	SHROUD
27	MAY W10281329
28	Roller (2)
29	MAY 10623002
30	GROMMET, COND (4)
31	MAY W10622098
32	GROMMET, CONDENSER
33	SEALER, INSULATION
34	Gasket, Bottom
35	MAY W10815863
