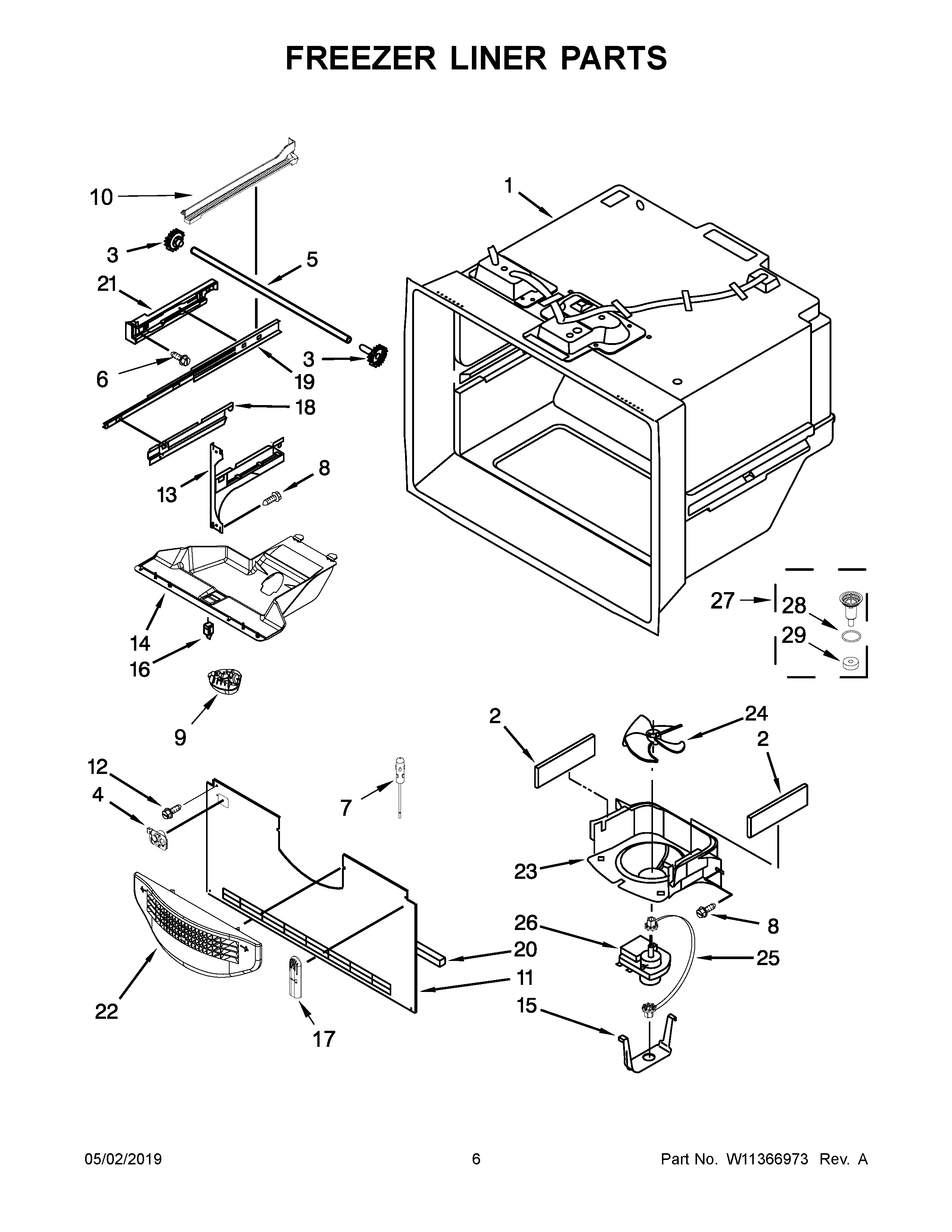

ABB1924BRW01 04 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2Gasket, Bottom
312002497 Whirlpool Refrigerator Drawer Gear Kit
4MAY W11261524
5MAY W10802329
6Screw (6)
7MAY 12791409SP
8Screw (8)
9MAY W11251749
10AMAY W10516602
10MAY W10516603
11MAY W10308414
12SCREW (10)
13AMAY W10330993
13MAY W10330991
14MODULE-FZ LIGHT
15CLIP, EVAP. MOTOR
16SWITCH, LIGHT
17MAY 12815301
18CRADLE-BASKET (LEFT HAND)
18ACRADLE-BASKET (RIGHT HAND)
19MAY W10120018
20MAY A3189394
21ADAPTER, SLIDE (LEFT HAND)
21AADAPTER, SLIDE (RIGHT HAND)
22Grille, Fz Air
23SHROUD, EVAP.FAN
24Blade, Fan (Evaporator)
25MAY W10121318
26MAY W10128551
27MAY W10662407
28MAY M0500703
29Gasket
