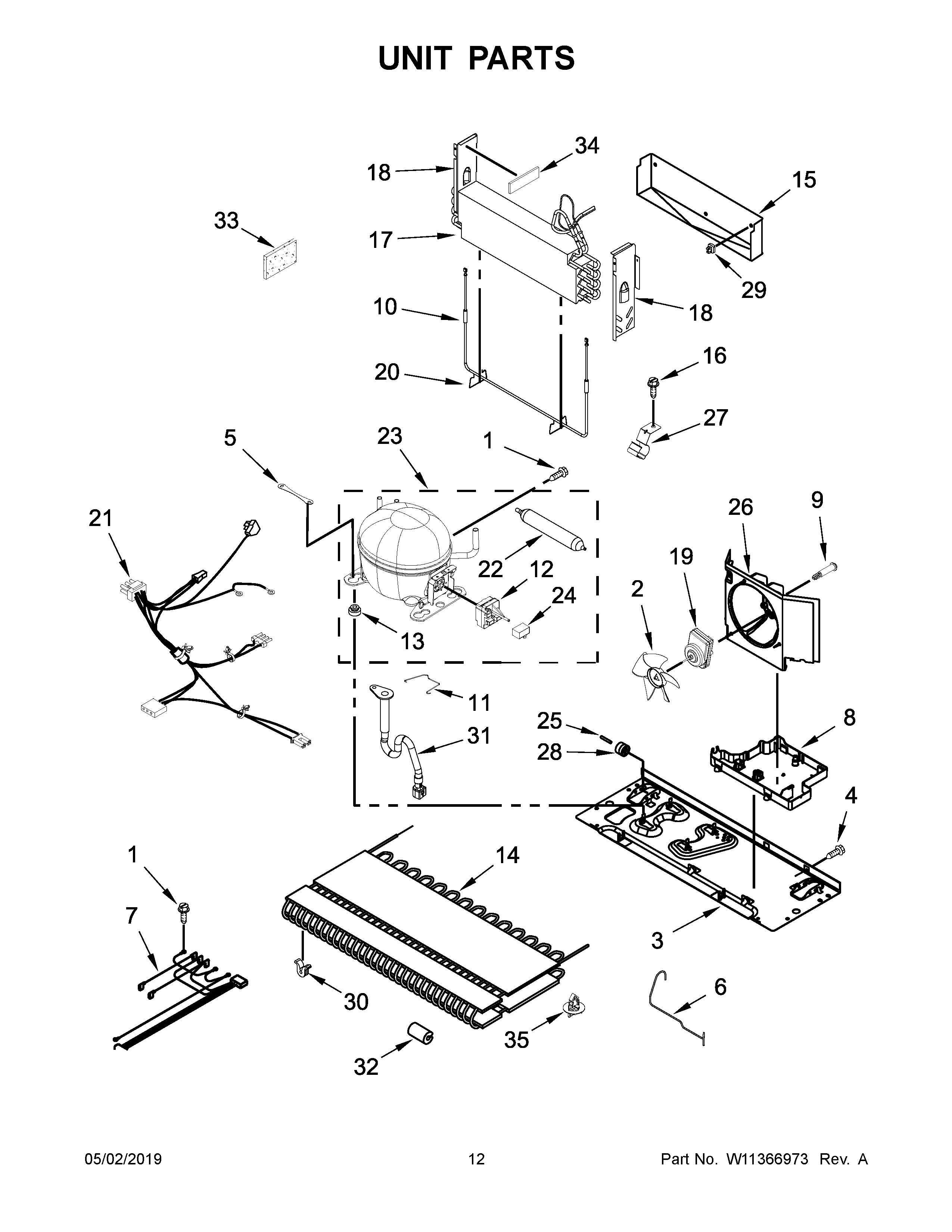

ABB1924BRW01 07 – UNIT PARTSadmin2025-04-26T08:55:19+00:00ABB1924BRW01 07 – UNIT PARTS
Products
| Position | Product |
|---|
| NI | Valve, Access (5/16``) |
| NI | Valve, Access (3/4``) |
| NI | Valve, Access (5/8``) |
| NI | VALVE, ACCESS (3/8``) |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | VALVE, ACCESS (1/4``) |
| NI | MAY 876764 |
| 1 | MAY 12992301 |
| 2 | MAY 12825803 |
| 3 | MAY W10480107 |
| 4 | SCREW (10) |
| 5 | MAY W10236396 |
| 6 | MAY W10294014 |
| 7 | HARNESS, EVAPORATOR (INCLUDES HEATER) |
| 8 | MAY W10655367 |
| 9 | MAY W10622701 |
| 10 | HEATER, EVAPORATOR |
| 11 | MAY W10216075 |
| 12 | MAY W10796752 |
| 13 | GROMMET |
| 14 | MAY W10346423 |
| 15 | MAY W10292801 |
| 16 | MAY 12992101 |
| 17 | MAY W10317012 |
| 18 | DAM (LEFT SIDE) |
| 18A | Dam (Right Side) |
| 19 | MOTOR, CONDENSER FAN |
| 20 | W11673433 Whirlpool Clip |
| 21 | MAY W11218258 |
| 22 | Drier |
| 23 | MAY W10743447 |
| 24 | MAY W10350564 |
| 25 | Axle, Roller (2) |
| 26 | SHROUD |
| 27 | MAY W10281329 |
| 28 | Roller (2) |
| 29 | MAY 10623002 |
| 30 | GROMMET, COND (4) |
| 31 | MAY W10622098 |
| 32 | GROMMET, CONDENSER |
| 33 | SEALER, INSULATION |
| 34 | Gasket, Bottom |
| 35 | MAY W10815863 |
