ABB1924DEW 07 – OPTIONAL ICE MAKER KIT IC11B P1328003W

Products

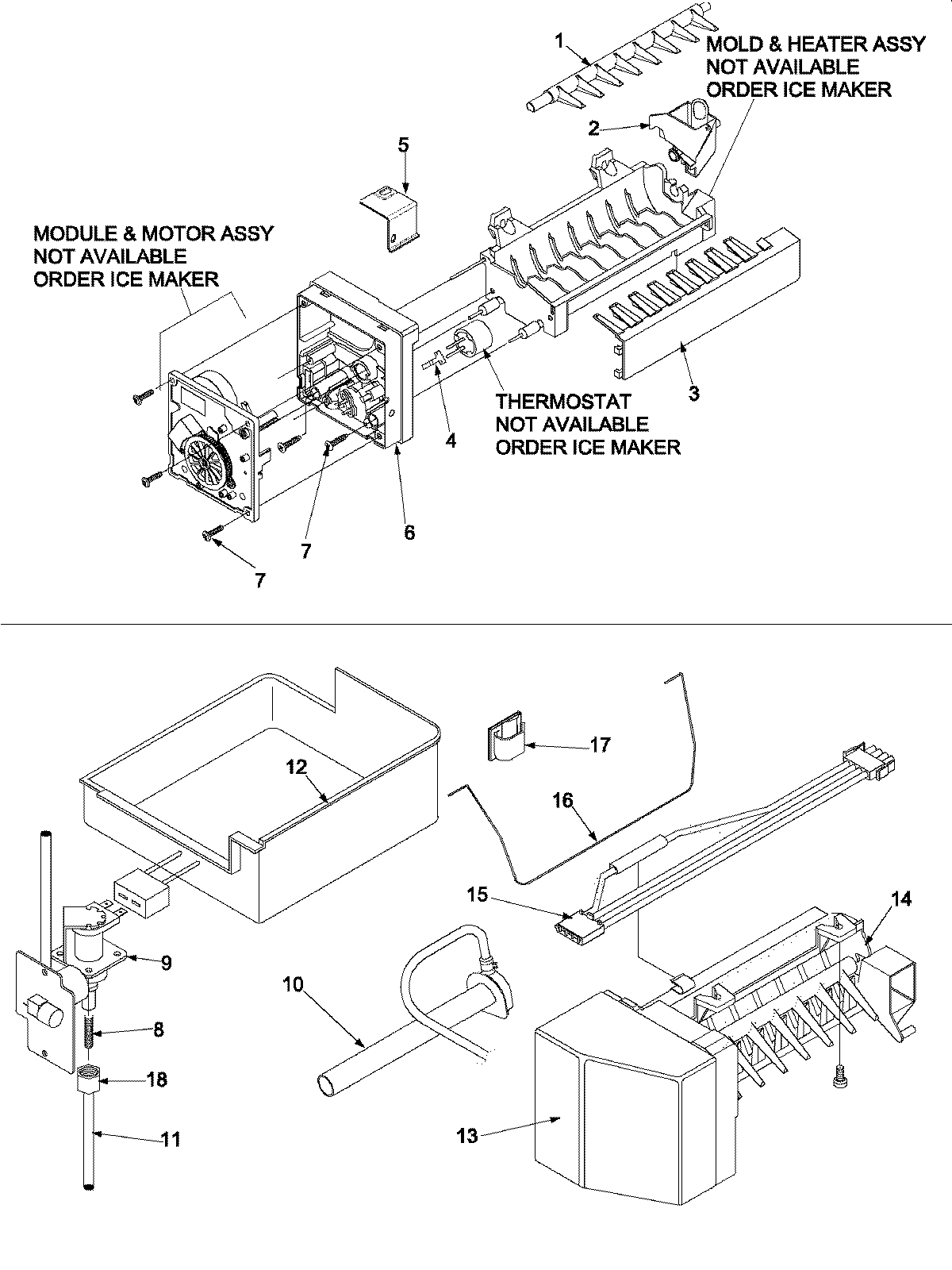

PositionProduct
NIMAY 95108-1
NI681390 Whirlpool Refrigerator Screw
NIClip
NIMAY A3223101
NIMAY M0104102
NIW10833902 Whirlpool Refrigerator Clamp
NIW11033771 Whirlpool Refrigerator Coupling
NIMAY 10549601
NIMAY 67001258
1WP627843 Whirlpool Refrigerator Ejector Arm
2WP628356 Whirlpool Refrigerator Fill Cup
3WP2182124 Whirlpool Refrigerator Stripper Arm
4WP2315522 Whirlpool Refrigerator Clip
5BRACKET, MODULE & HEATER
6WP2195914 Whirlpool Refrigerator Ice Maker Housing
7SCREW
8SPRING, ANTI KINK
9WP67003753 Whirlpool Refrigerator Inlet Valve
10ELBOW, FILL TUBE
11MAY B5705323
12WP67001255 Whirlpool Ice Bucket
13WPW10289690 Whirlpool Ice Maker Cover
14MAY D7824706
15MAY 67001189
16ARM-SHUT
17WPM0104106 Whirlpool Refrigerator Clip
18NUT, SLEEVE
