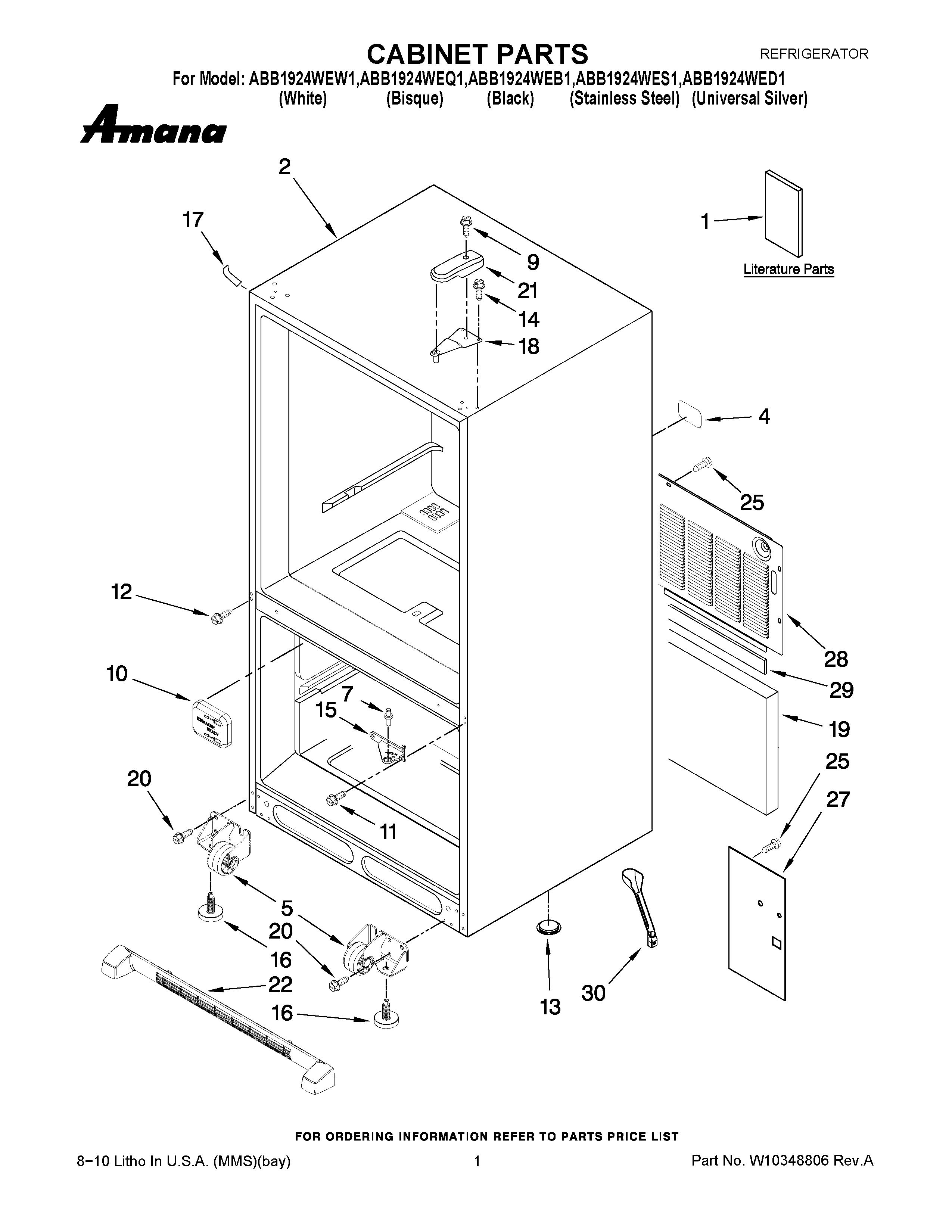

ABB1924WEB1 01 – CABINET PARTS

Products

Position	Product
1	MAY W10322959
1	MAY W10296556
1	MAY W10208785
2	LINER (NOT A SERVICEABLE PART)
4	LABEL-FILL TUBE
5	ROLLER ASSY. (FRONT) (LEFT)
5	ROLLER ASSY. (FRONT) (RIGHT)
7	MAY 10351006
9	MAY 12992602
10	COVER-FILL TUBE
11	SCREW (6)
12	Screw (8)
13	A3076901 Whirlpool Refrigerator Plug
14	SCREW (6)
15	MAY 12607104ED
15	MAY 12607103WD
16	Brake, Foot
17	Cover, Corner (Bisque)
17	Cover, Corner (2) (White)
17	COVER, CORNER (BLACK)
18	MAY 12566606ED
19	Insulation, Sound
20	Screw (8)
21	MAY 12477601W
21	COVER, HINGE(BLACK)
21	MAY 12477601C
22	Grille Assembly (Black)
22	Grille Assembly (White)
22	MAY W10236651
25	SCREW (10)
27	MAY W10217701
28	MAY W10210978
29	MAY B5759655
30	MAY W10210987
