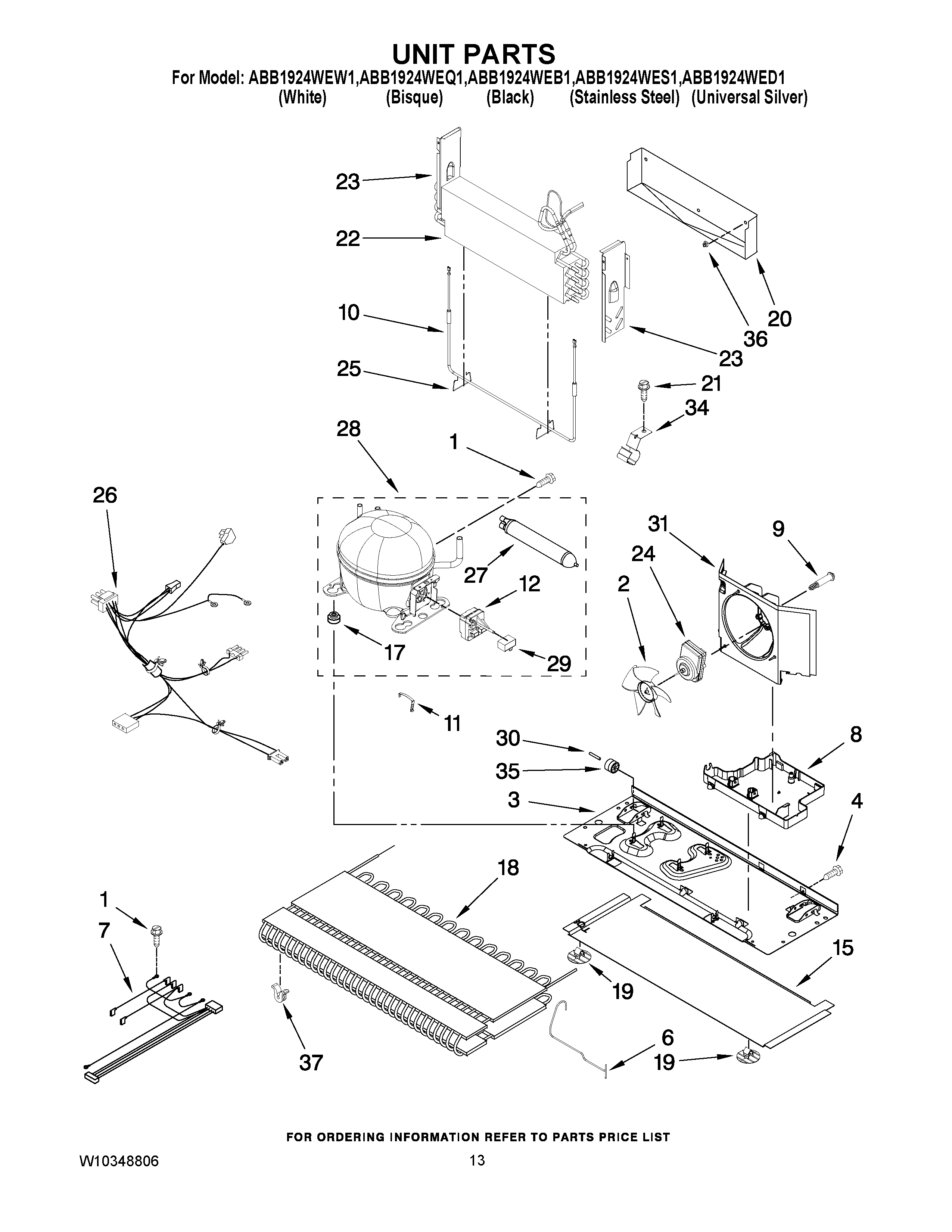

ABB1924WEB1 07 – UNIT PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/4“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (1/2“)
NI	MAY 876764
NI	Valve, Access (5/8“)
NI	Valve, Access (3/4“)
1	MAY 12992301
2	MAY 12825803
3	MAY W10210982
4	SCREW (10)
6	MAY W10296293
7	HARNESS, EVAPORATOR (INCLUDES HEATER)
8	MAY W10296784
9	MAY W10216919
10	HEATER, EVAPORATOR
11	MAY W10216075
12	START PROTECT, COMBO (START DEVICE, COMBINATION (START RELAY AND OVERLOAD) FOR SERVICE COMPRESSOR ONLY)
12	MAY W10293291
15	MAY W10206336
17	Grommet (4)
18	MAY W10135028
19	MAY W10206339
20	MAY W10292801
21	MAY 12990701
22	MAY W10317012
23	DAM (LEFT SIDE)
23	Dam (Right Side)
24	MAY W10239053
25	W11673433 Whirlpool Clip
26	HARNESS, UNIT (INCLUDES POWER CORD)
27	Drier
28	MAY W10187125
29	Capacitator (Production)
30	Axle, Roller (2)
31	SHROUD
34	MAY 10547003
35	Roller (2)
36	MAY 10623002
37	GROMMET, COND (4)
