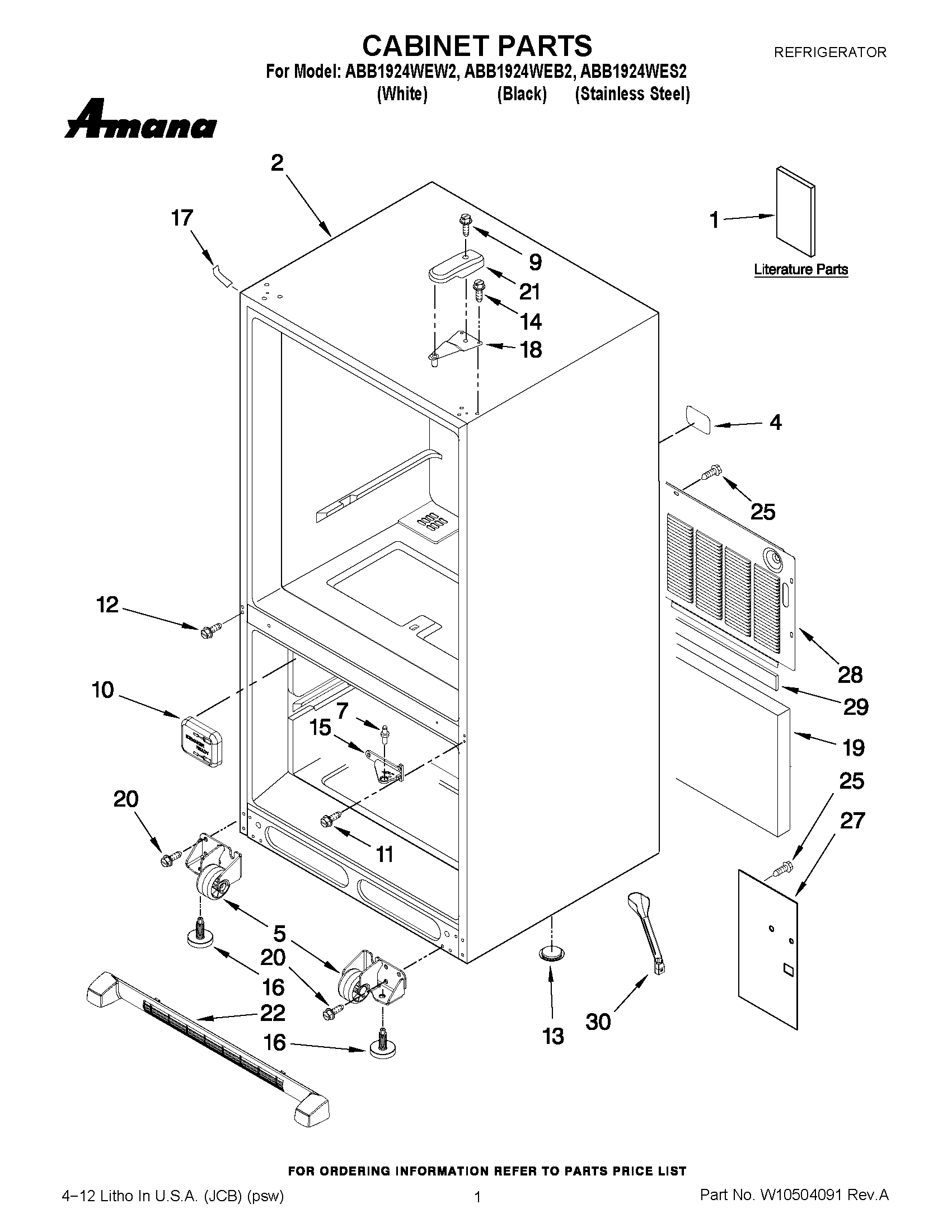

ABB1924WEB2 01 – CABINET PARTS

Products

Position	Product
1	MAY W10366212
1	MAY W10296556
1	MAY W10476805
2	LINER (NOT A SERVICEABLE PART)
4	LABEL-FILL TUBE
5	ROLLER ASSY. (FRONT) (LEFT)
5	ROLLER ASSY. (FRONT) (RIGHT)
7	MAY 10351006
9	MAY 12992602
10	COVER-FILL TUBE
11	MAY W10339086
12	Screw (8)
13	A3076901 Whirlpool Refrigerator Plug
14	SCREW (6)
15	MAY 12607103WD
15	MAY 12607104ED
16	Brake, Foot
17	COVER, CORNER (BLACK)
17	Cover, Corner (2) (White)
18	MAY 12566606ED
19	Insulation, Sound
20	Screw (8)
21	COVER, HINGE(BLACK)
21	MAY 12477601W
22	Grille Assembly (White)
22	Grille Assembly (Black)
25	SCREW (10)
27	MAY W10217701
28	MAY W10210978
29	MAY B5759655
30	MAY W10210987
