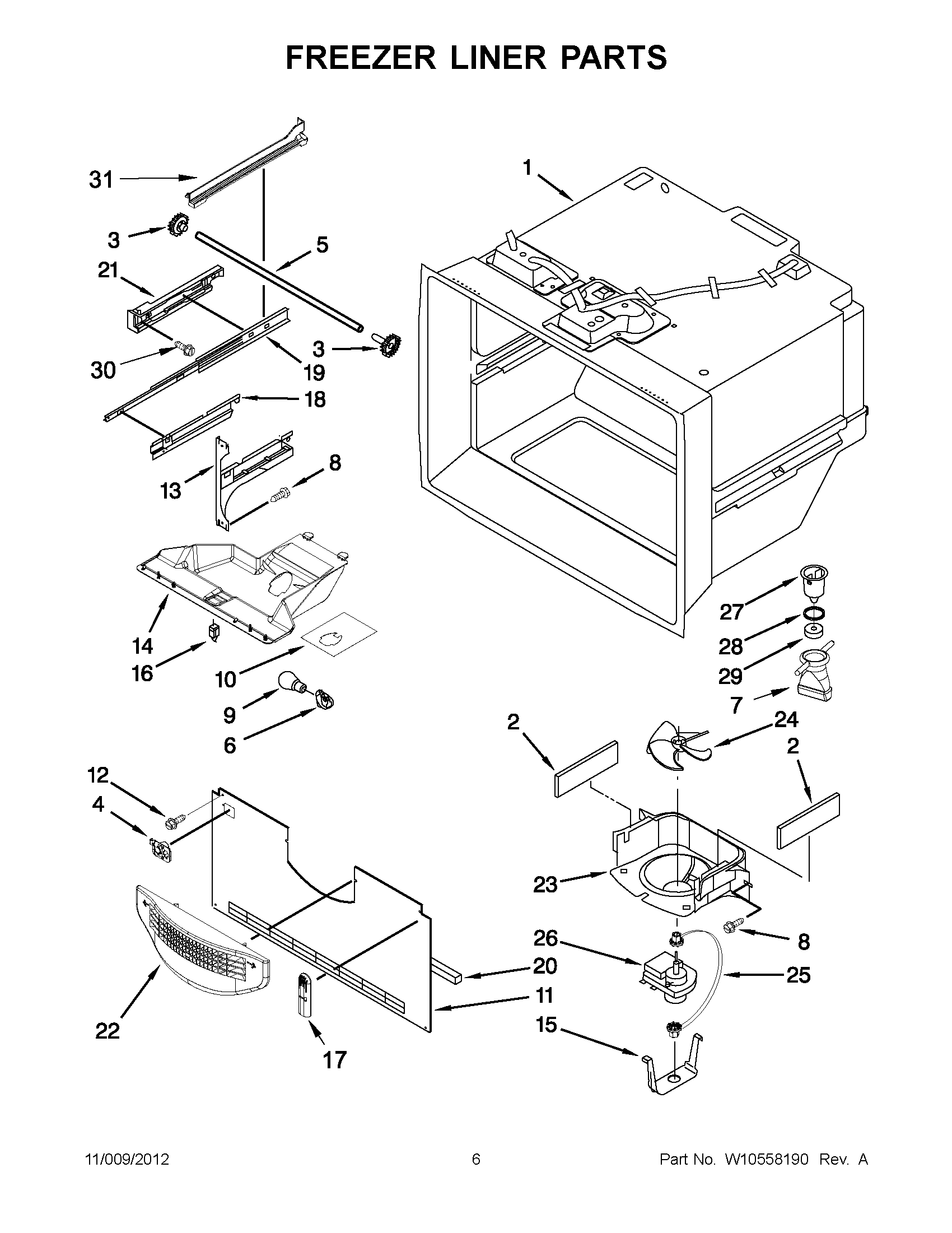

ABB1924WEB3 03 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2Gasket, Bottom
312002497 Whirlpool Refrigerator Drawer Gear Kit
4MAY 12932103
5SHAFT-RACK
6W11447232 Whirlpool Refrigerator Socket
7MAY W10309238
8Screw (8)
9BULB, LIGHT
10FOIL-FZ LIGHT
11MAY W10308414
12SCREW (10)
13MAY W10330993
13MAY W10330991
14MODULE-FZ LIGHT
15CLIP, EVAP. MOTOR
16MAY 12466105
17MAY 12815301
18CRADLE-BASKET (LEFT HAND)
18CRADLE-BASKET (RIGHT HAND)
19MAY W10120018
20MAY A3189394
21ADAPTER, SLIDE (LEFT HAND)
21ADAPTER, SLIDE (RIGHT HAND)
22Grille, Fz Air
23SHROUD, EVAP.FAN
24Blade, Fan (Evaporator)
25MAY W10121318
26MAY W10128551
27MAY D7753903
28MAY M0500703
29Gasket
30Screw (6)
31MAY W10516603
31MAY W10516602
