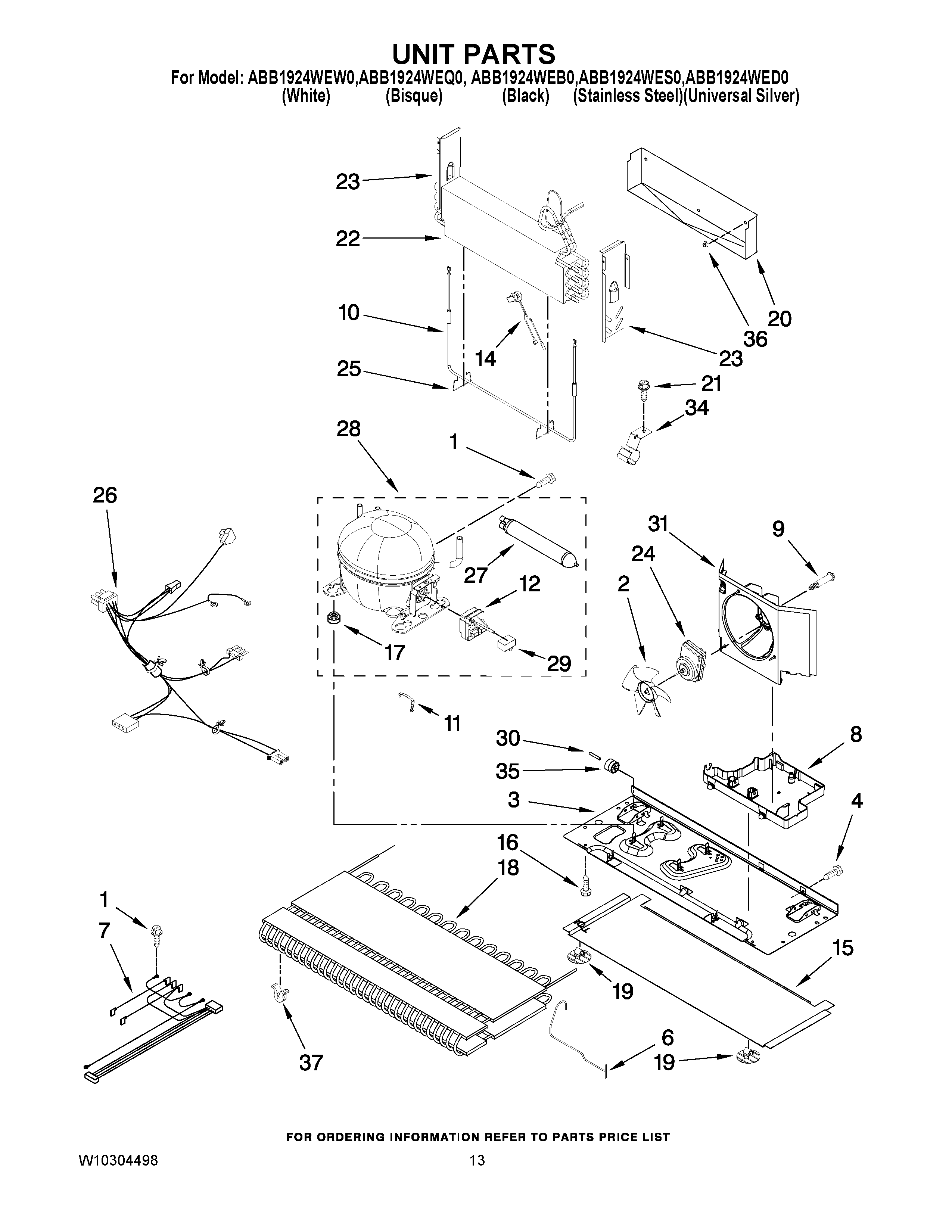

ABB1924WEQ0 07 – UNIT PARTSadmin2025-04-26T08:55:27+00:00ABB1924WEQ0 07 – UNIT PARTS
Products
| Position | Product |
|---|
| NI | MAY 876764 |
| NI | Valve, Access (5/16``) |
| NI | VALVE, ACCESS (3/8``) |
| NI | Valve, Access (1/2``) |
| NI | Valve, Access (5/8``) |
| NI | Valve, Access (3/4``) |
| NI | VALVE, ACCESS (1/4``) |
| NI | LINER (NOT A SERVICEABLE PART) |
| 1 | MAY 12992301 |
| 2 | MAY 12825803 |
| 3 | MAY W10210982 |
| 4 | SCREW (10) |
| 6 | MAY W10217744 |
| 7 | HARNESS, EVAPORATOR (INCLUDES HEATER) |
| 8 | MAY W10296784 |
| 9 | MAY W10216919 |
| 10 | HEATER, EVAPORATOR |
| 11 | MAY W10216075 |
| 12 | START-DEVICE, COMBINATION (START RELAY AND OVERLOAD) (PRODUCTION) |
| 12 | MAY W10136414 |
| 14 | Thermostat |
| 15 | MAY W10206336 |
| 16 | MAY 12788119 |
| 17 | Grommet (4) |
| 18 | MAY W10135028 |
| 19 | MAY W10206339 |
| 20 | MAY W10292801 |
| 21 | MAY 12990701 |
| 22 | MAY 12726401 |
| 23 | Dam (Right Side) |
| 23 | DAM (LEFT SIDE) |
| 24 | MAY W10239053 |
| 25 | W11673433 Whirlpool Clip |
| 26 | HARNESS, UNIT (INCLUDES POWER CORD) |
| 27 | Drier |
| 28 | COMPRESSOR KIT CONTAINS ITEMS 12, 17, 27, & 29) |
| 29 | Capacitator (Production) |
| 30 | Axle, Roller (2) |
| 31 | SHROUD |
| 34 | MAY 10547003 |
| 35 | Roller (2) |
| 36 | MAY 10623002 |
| 37 | GROMMET, COND (4) |
