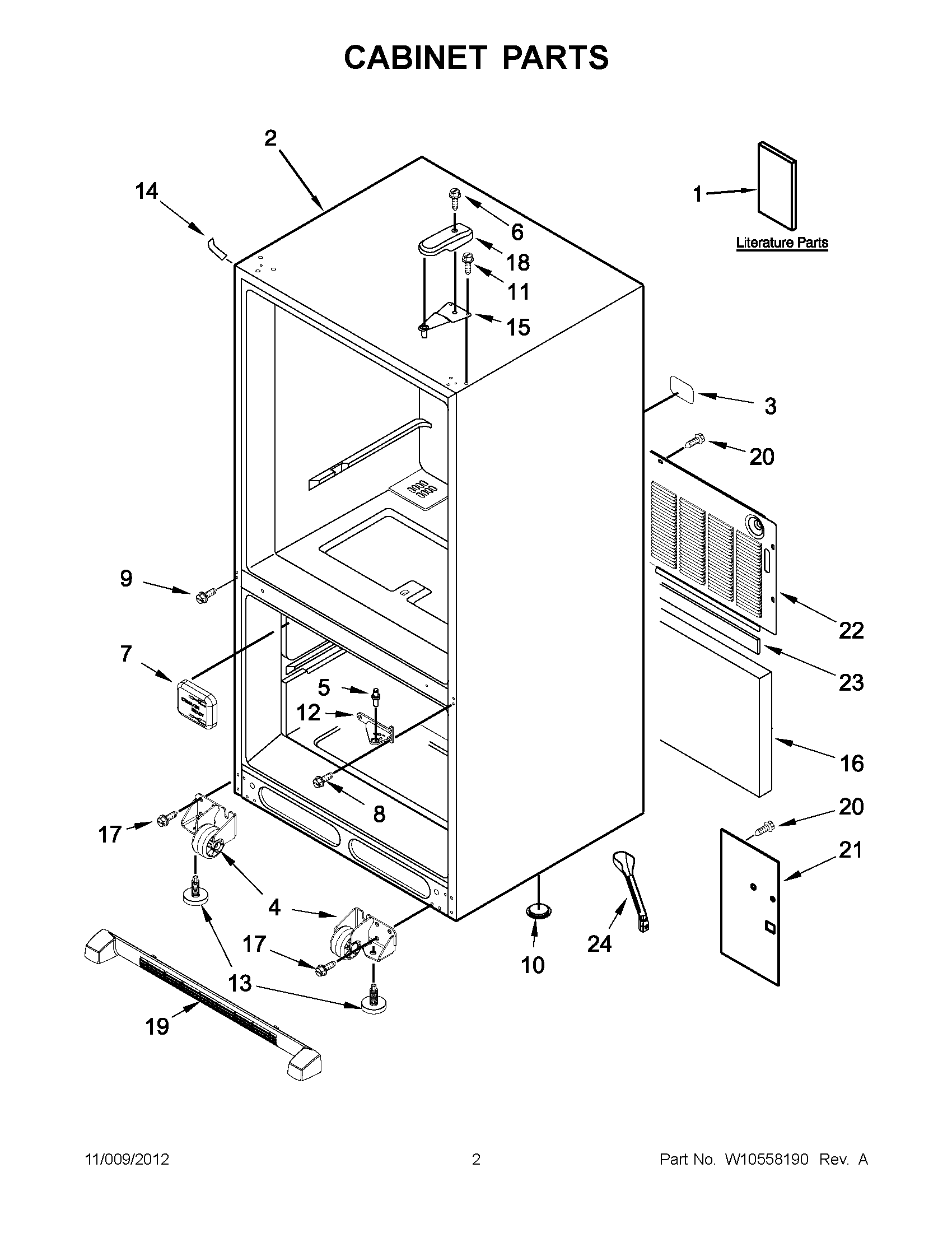

ABB1924WES3 01 – CABINET PARTS

Products

Position	Product
1	MAY W10517966
1	MAY W10366212SP
1	MAY W10296556
2	LINER (NOT A SERVICEABLE PART)
3	LABEL-FILL TUBE
4	ROLLER ASSEMBLY (RIGHT HAND)
4	ROLLER ASSEMBLY (LEFT HAND)
5	MAY 10351006
6	MAY 12992602
7	COVER-FILL TUBE
8	MAY W10339086
9	Screw (8)
10	A3076901 Whirlpool Refrigerator Plug
11	SCREW (6)
12	MAY 12607103WD
12	MAY 12607104ED
13	Brake, Foot
14	COVER, CORNER (BLACK)
14	Cover, Corner (2) (White)
15	MAY 12566606ED
16	Insulation, Sound
17	Screw (8)
18	COVER, HINGE(BLACK)
18	MAY 12477601W
19	Grille Assembly (Black)
19	Grille Assembly (White)
20	SCREW (10)
21	MAY W10217701
22	MAY W10210978
23	MAY B5759655
24	TUBE-DRAIN
