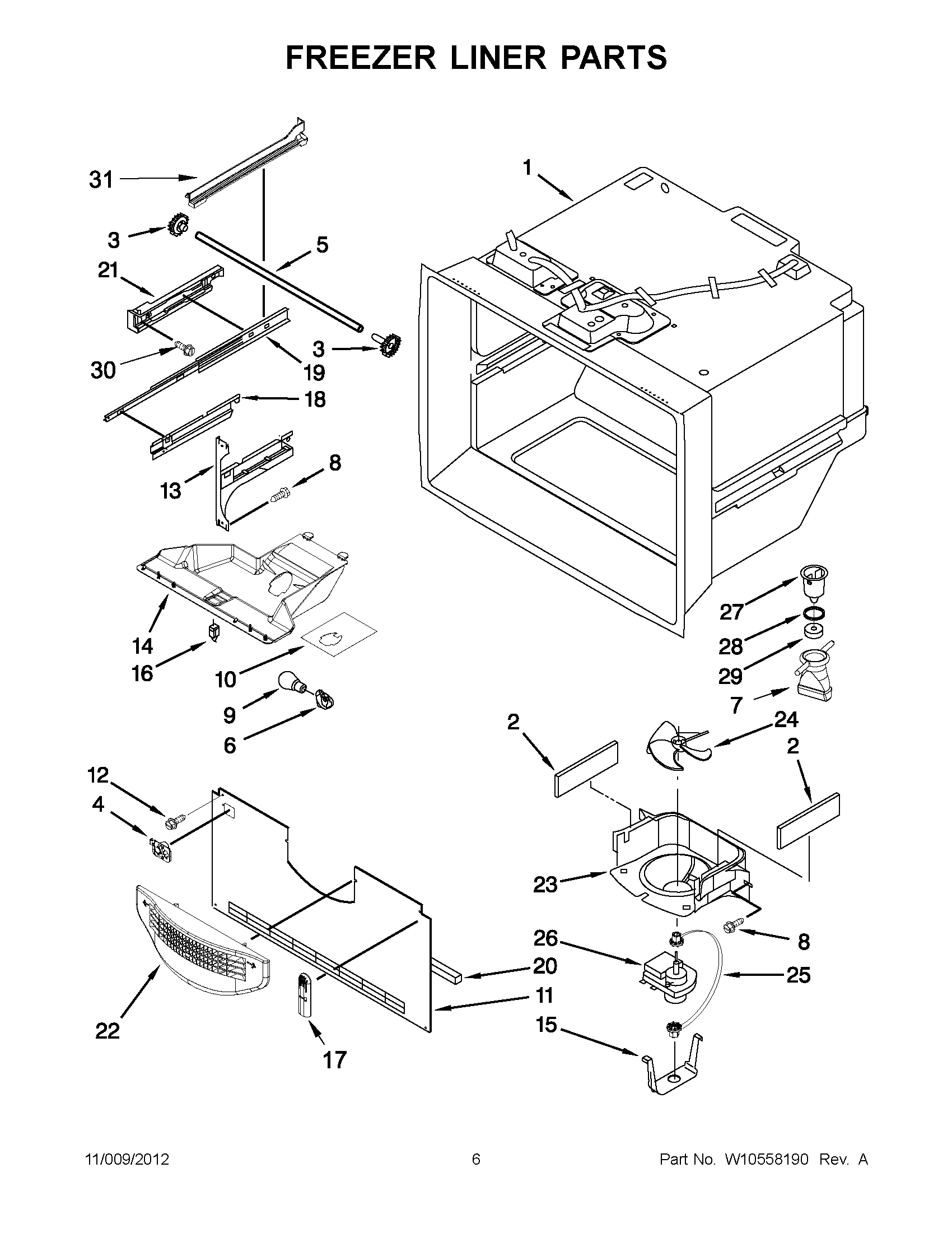

ABB1924WES3 03 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	Gasket, Bottom
3	12002497 Whirlpool Refrigerator Drawer Gear Kit
4	MAY 12932103
5	SHAFT-RACK
6	W11447232 Whirlpool Refrigerator Socket
7	MAY W10309238
8	Screw (8)
9	BULB, LIGHT
10	FOIL-FZ LIGHT
11	MAY W10308414
12	SCREW (10)
13	MAY W10330993
13	MAY W10330991
14	MODULE-FZ LIGHT
15	CLIP, EVAP. MOTOR
16	MAY 12466105
17	MAY 12815301
18	CRADLE-BASKET (LEFT HAND)
18	CRADLE-BASKET (RIGHT HAND)
19	MAY W10120018
20	MAY A3189394
21	ADAPTER, SLIDE (LEFT HAND)
21	ADAPTER, SLIDE (RIGHT HAND)
22	Grille, Fz Air
23	SHROUD, EVAP.FAN
24	Blade, Fan (Evaporator)
25	MAY W10121318
26	MAY W10128551
27	MAY D7753903
28	MAY M0500703
29	Gasket
30	Screw (6)
31	MAY W10516603
31	MAY W10516602
