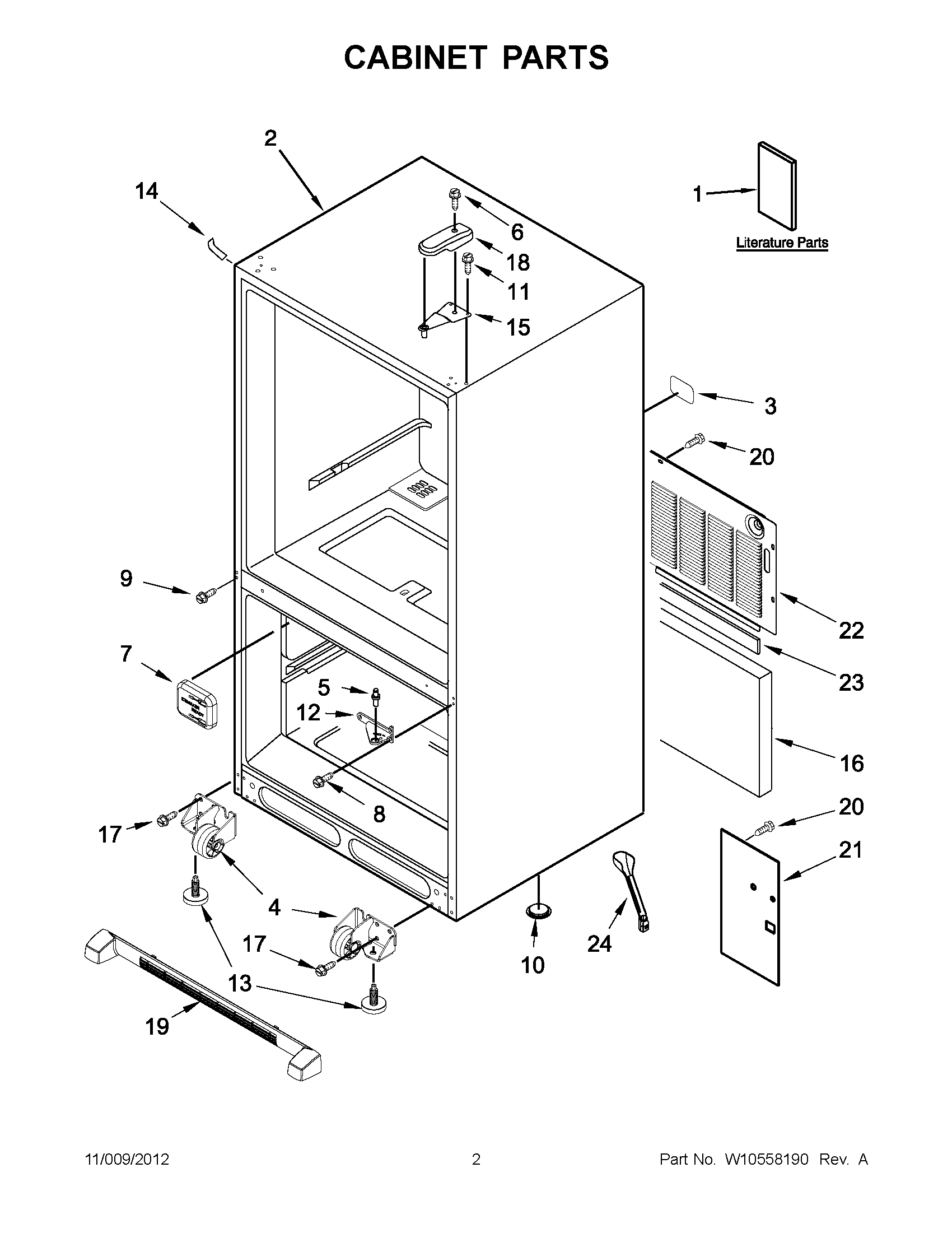

ABB1924WEW3 01 – CABINET PARTS

Products

PositionProduct
1MAY W10517966
1MAY W10366212SP
1MAY W10296556
2LINER (NOT A SERVICEABLE PART)
3LABEL-FILL TUBE
4ROLLER ASSEMBLY (RIGHT HAND)
4ROLLER ASSEMBLY (LEFT HAND)
5MAY 10351006
6MAY 12992602
7COVER-FILL TUBE
8MAY W10339086
9Screw (8)
10A3076901 Whirlpool Refrigerator Plug
11SCREW (6)
12MAY 12607103WD
12MAY 12607104ED
13Brake, Foot
14COVER, CORNER (BLACK)
14Cover, Corner (2) (White)
15MAY 12566606ED
16Insulation, Sound
17Screw (8)
18COVER, HINGE(BLACK)
18MAY 12477601W
19Grille Assembly (Black)
19Grille Assembly (White)
20SCREW (10)
21MAY W10217701
22MAY W10210978
23MAY B5759655
24TUBE-DRAIN
