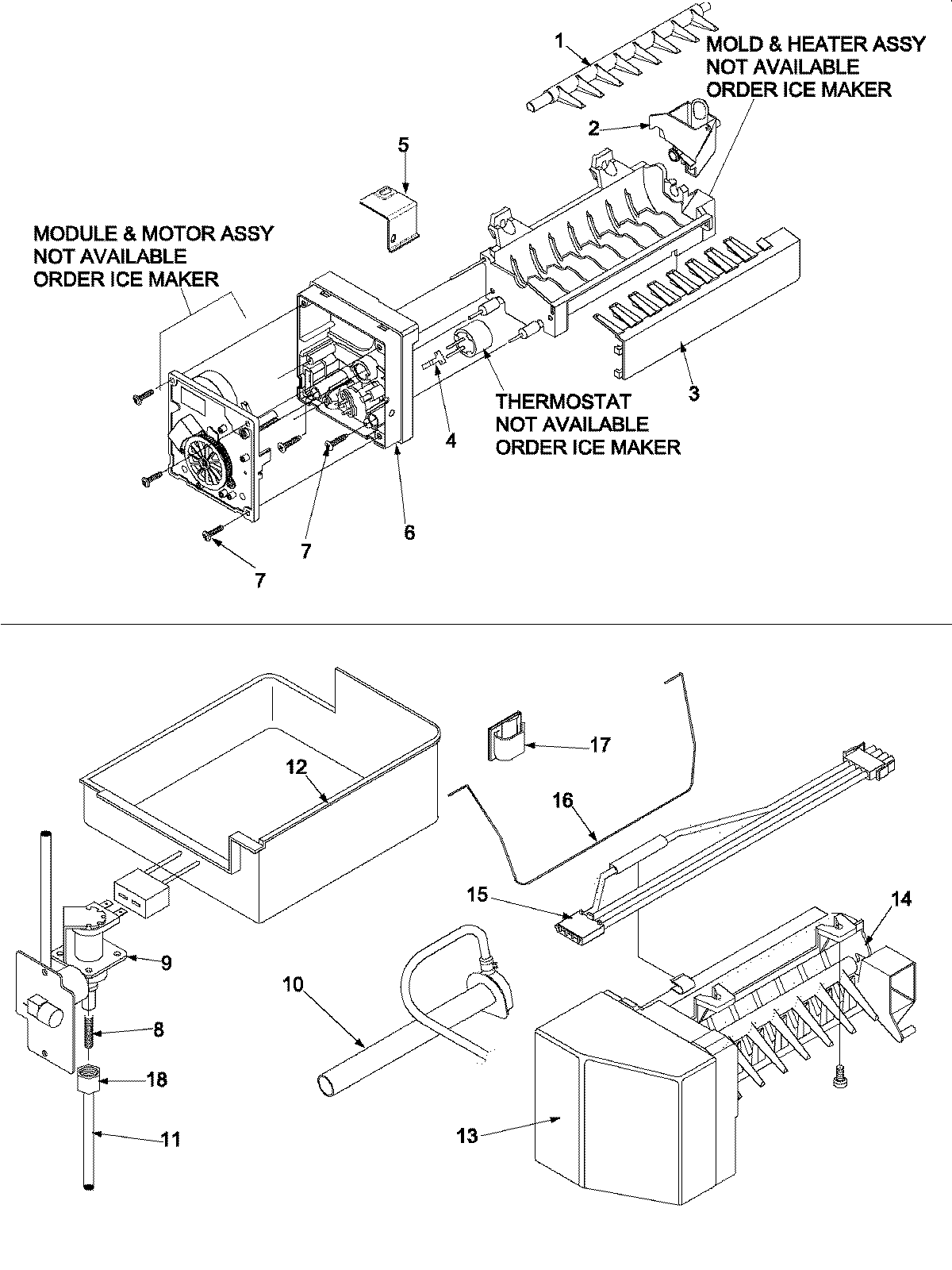

ABB1927DEQ 07 – OPTIONAL ICE MAKER KIT IC11B P1328003W

Products

PositionProduct
NI681390 Whirlpool Refrigerator Screw
NIClip
NIMAY A3223101
NIMAY 67001258
1WP627843 Whirlpool Refrigerator Ejector Arm
2WP628356 Whirlpool Refrigerator Fill Cup
3WP2182124 Whirlpool Refrigerator Stripper Arm
4WP2315522 Whirlpool Refrigerator Clip
5BRACKET, MODULE & HEATER
6WP2195914 Whirlpool Refrigerator Ice Maker Housing
7SCREW
8WPM0104106 Whirlpool Refrigerator Clip
9WP67003753 Whirlpool Refrigerator Inlet Valve
10ELBOW, FILL TUBE
11MAY B5705323
12WP67001255 Whirlpool Ice Bucket
13WPW10289690 Whirlpool Ice Maker Cover
14MAY D7824706
15WPD7813010 Whirlpool Refrigerator Wire Harness
16ARM-SHUT
17W10833902 Whirlpool Refrigerator Clamp
18MAY 95108-1
